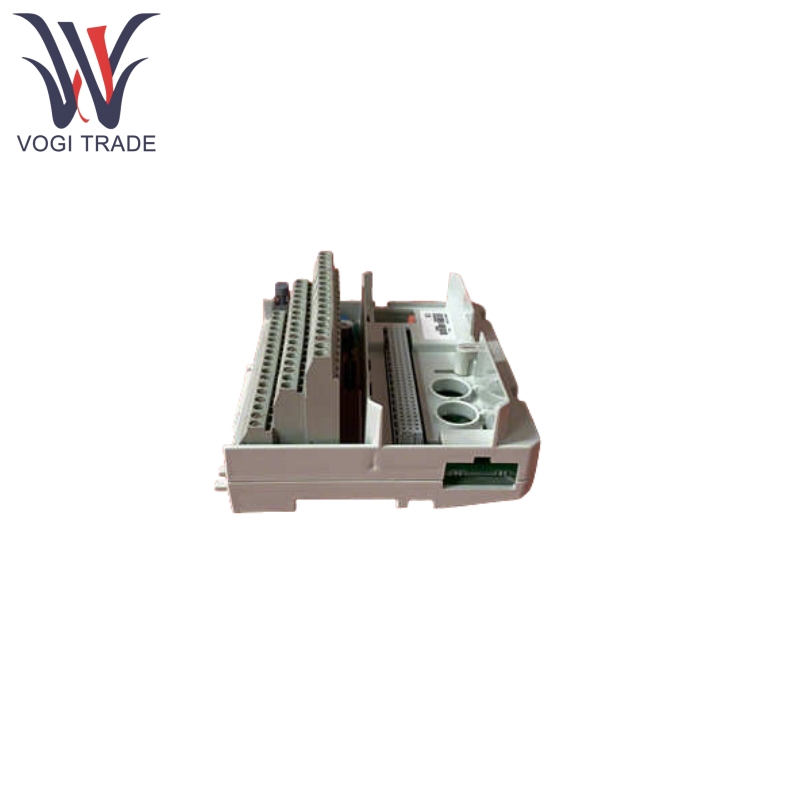

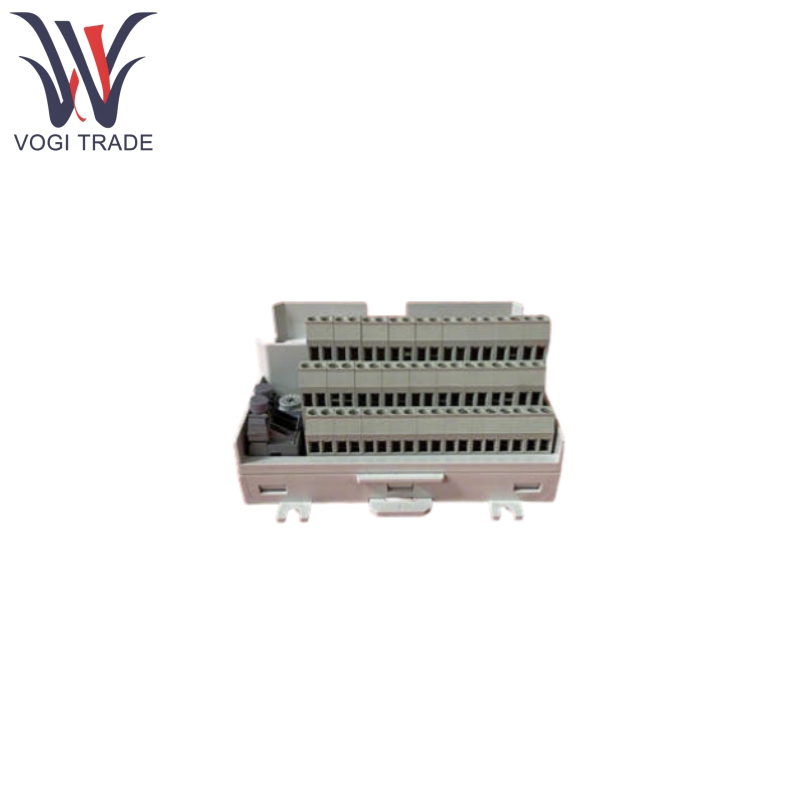

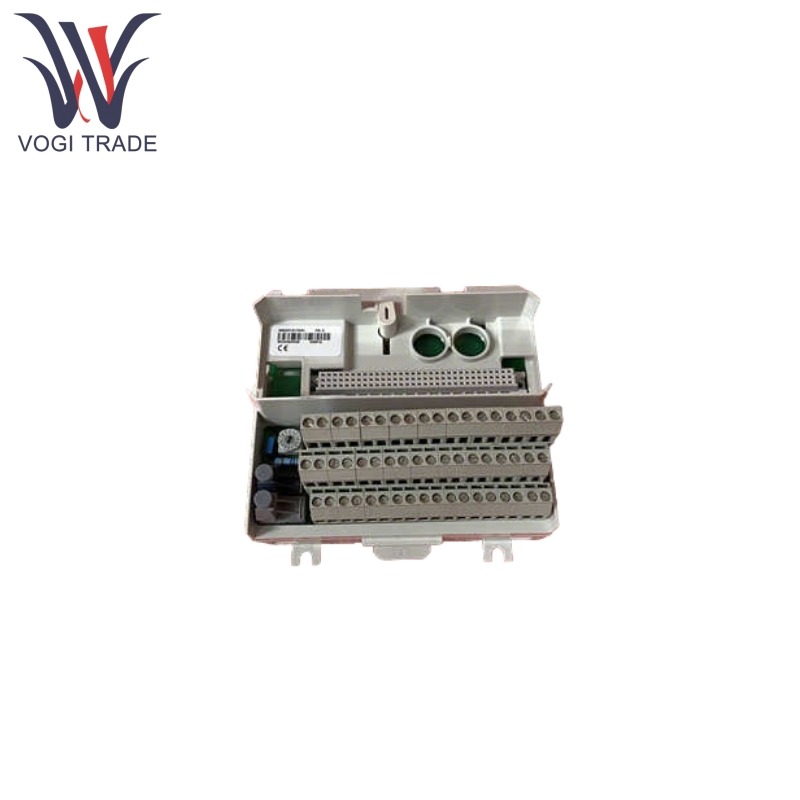

Brand: ABB Description: Module Termination Unit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen ABB GRBTU-01 is specifically designed for signal conversion and data transmission between industrial field devices and control systems. Its core function is to achieve seamless connection between sensors, actuators, and PLC/DCS systems through a multi-protocol compatible interface, supporting analog/digital signal processing. It is suitable for complex industrial scenarios such as petrochemical, electric power, and intelligent manufacturing.
|
Manufacture |
ABB |
|
Model Number |
GRBTU-01 |
|
Ordering Number |
GRBTU-01 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9032900090 |
|
Dimension |
14*12*6cm |
|
Weight |
0.6kg |
Product Features
ABB GRBTU-01 supports mainstream industrial protocols such as Modbus TCP, Profibus DP, and EtherCAT, enabling direct connection to ABB PLC/DCS systems and third-party devices for cross-brand system integration.
ABB GRBTU-01 features a built-in protocol conversion engine that automatically adapts to different communication formats, reducing system integration complexity.
ABB GRBTU-01 supports analog input/output and digital input/output with a resolution of 16 bits, ensuring signal conversion error ≤ ±0.1%.
ABB GRBTU-01 features channel-to-channel isolation voltage of 50V and system-to-ground isolation of 500V AC, effectively resisting electromagnetic interference (EMC).
ABB GRBTU-01 continuously monitors power voltage and communication link status, sending fault alarms via LED indicator lights and the backplane bus.
ABB GRBTU-01 supports cable break detection and hot-swap functionality, allowing modules to be replaced while the system is running, thereby minimizing downtime.
Product Using Principle
ABB GRBTU-01 can receive digital commands from the controller and convert them into a signal format recognizable by field devices through its built-in protocol stack.
ABB GRBTU-01 can connect to sensors or actuators via analog/digital interfaces to enable bidirectional data transmission.
ABB GRBTU-01 supports dual-link communication (e.g., primary + backup Profibus DP), automatically switching to the redundant path when the primary link fails to ensure uninterrupted data transmission.
ABB GRBTU-01 can real-time transmit device status back to the control system, forming a closed-loop control loop.
Product Parameter
The following is detail for ABB GBRTU-01 Module Termination Unit.
|
Parameter Category |
Specific Parameters |
|
Communication Protocols |
Modbus TCP, Profibus DP, EtherCAT (requires expansion module) |
|
Signal Types |
Analog: 4-20mA, 0-10V Digital: Dry contact / Wet contact (24V DC) |
|
Power Supply Requirements |
24V DC (allowable fluctuation: 19.2-28.8V DC), power consumption ≤5W |
|
Operating Temperature |
-20℃ to +70℃ (no condensation) Humidity: 5%-95% RH (non-condensing) |
|
Protection Class |
IP20 (module itself) When installed in a control cabinet, the protection class is determined by the cabinet |
|
Communication Rates |
1 Mbps (CEX-Bus), 12 Mbps (Profibus DP) |
