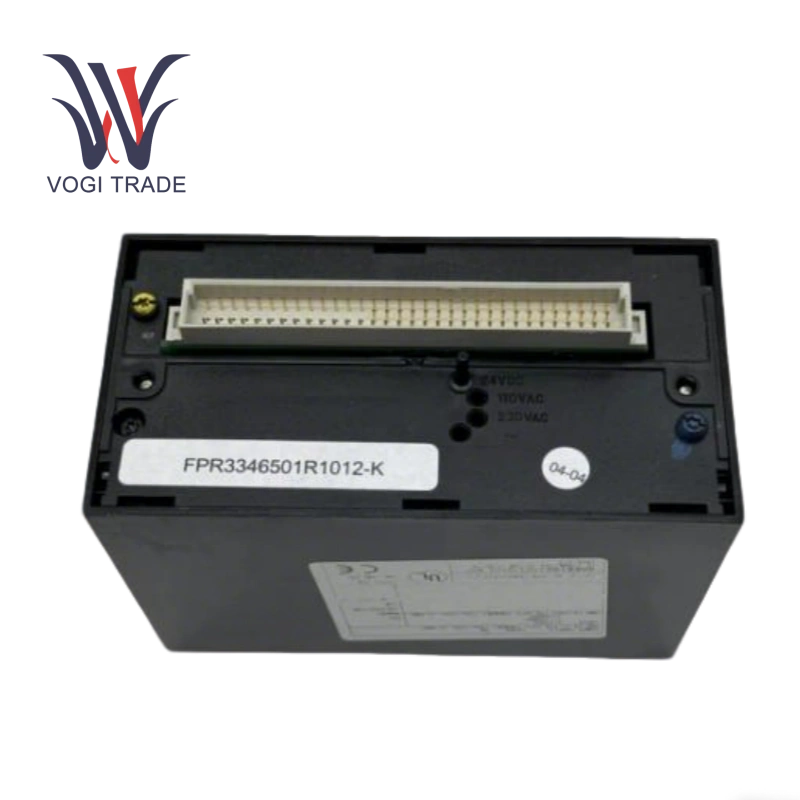

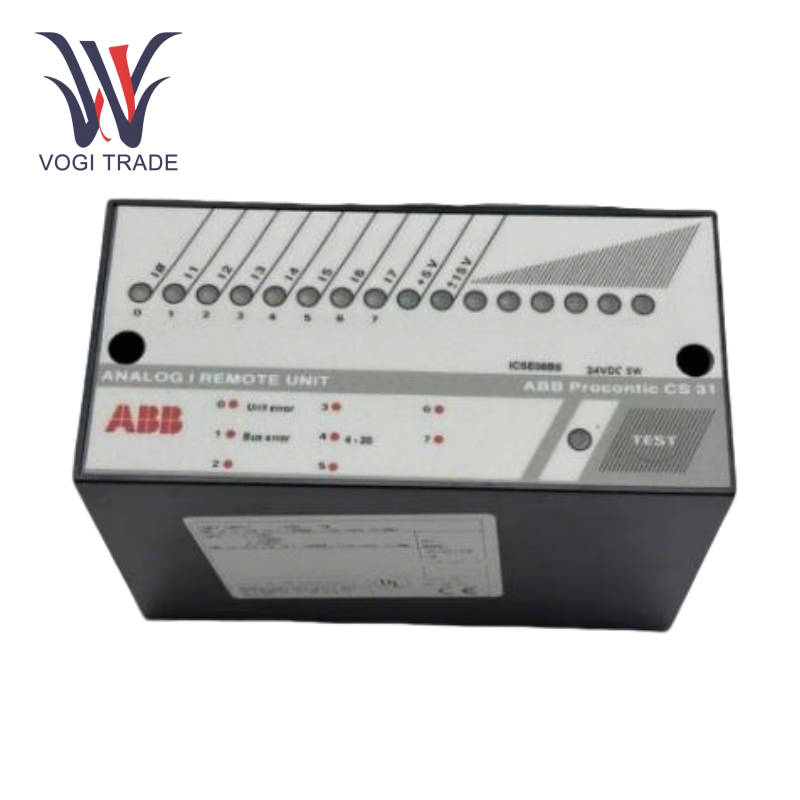

Brand: ABB Description: Analog Input Module Condition: Brand New Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB ICSE08B5 FPR3346501R1012 is an I/O module designed for industrial automation. It has high-precision signal conversion and multi-channel processing capabilities, and is suitable for real-time control and monitoring in power, chemical, manufacturing and other scenarios.
|
Manufacture |
ABB |
|
Model Number |
ICSE08B5 |
|
Ordering Number |
FPR3346501R1012 |
|
Series |
Advant 800xA |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8537109090 |
|
Dimension |
12*8*3.5CM |
|
Packing Dimension |
14*10*5.5CM |
|
Weight |
0.48kg |
Technical Parameters
Input/Output: 8×12-bit analog input channels, support -10V to +10V input range, accuracy ±0.1% full scale, sampling rate 250Hz
Communication Performance: ABB ICSE08B5 FPR3346501R1012
supports Modbus/RTU protocol, communication rate optional 960kbps, 1.5Mbps, 3Mbps, 6Mbps.
Power Requirements: 24VDC power supply.
Environmental Adaptability: Working temperature -20°C to 60°C, protection level IP67 (dustproof and waterproof).
Key Features
1.Precision Signal Processing
• 8×12-bit ADC channels with±0.1% full-scale accuracy for pressure/temperature monitoring.
• Real-time 250Hz sampling with dynamic drift compensation and edge-computed Signal Anomaly Certificates.
2.Industrial Protocol Integration
• Native support for Modbus/RTU, Profibus-DP, and RS-485 interfaces.
• Direct compatibility with Siemens S7-1500/S7-1200 and Schneider M580 PLCs.
3.Robust Environmental Performance
• IP67 protection (72-hour salt spray certified) and -20°C to +60°C operation.
• Built-in voltage compensation for Southeast Asian grids (220V/230V).
4.Safety & Reliability
• Dual-channel signal verification (<0.05% error) and IEC 61508 SIL2 certification.
• Programmable overload protection (±15% threshold) and <2ms fault self-diagnosis.
5.Multilingual HMI & Scalability
• English/Russian/Spanish interfaces with ISO 13849 terminology library.
• 8×USB 2.0 and 6×PCIe x1 interfaces for I/O expansion; DIN rail mounting (125×80×35mm, 0.28kg).
6.Smart Integration
• API-driven equipment health scoring (ISO 13374) and ERP energy reports.
• Code-free configuration reduces visual inspection setup time by 80% (99.5% defect accuracy).
