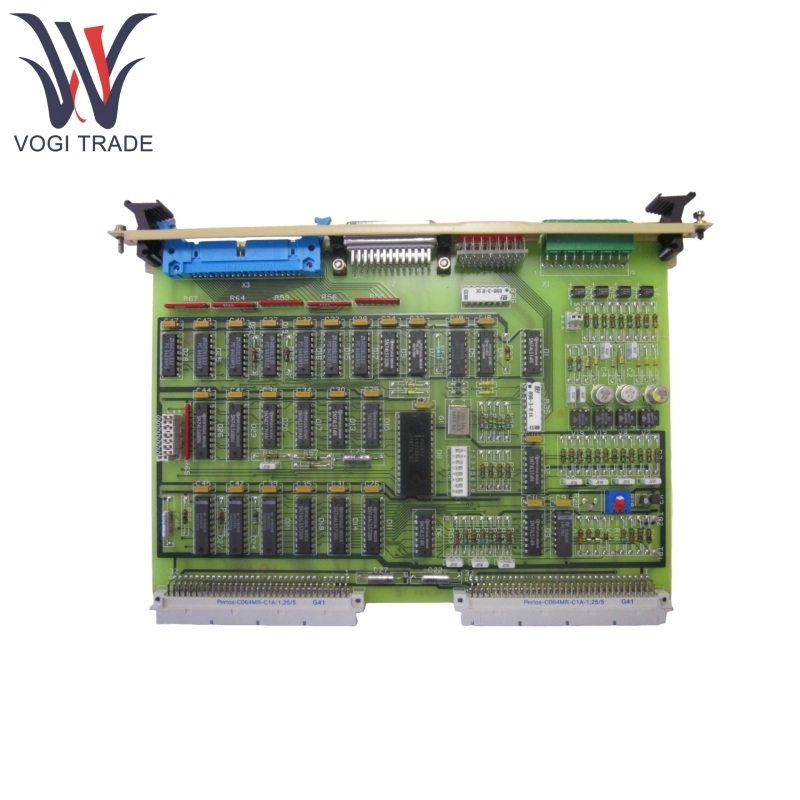

Brand: ABB Description: I/O Transceiver Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB IOD86-TR 57275707 is to achieve highly reliable data interaction between controllers and field devices, supporting redundant communication links and hot-swap functionality, making it suitable for industrial scenarios with extremely high requirements for system stability. The module ensures continuous data transmission through dual communication channels and integrates diagnostic functions to quickly locate fault points, making it widely used in key process industries such as petroleum, chemical, and power.
|
Manufacture |
ABB |
|
Model Number |
IOD86-TR |
|
Ordering Number |
57275707 |
|
Catalog |
AC 800F |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
26*26*4cm |
|
Weight |
0.2kg |
Product Features
ABB IOD86-TR 57275707 supports dual Profibus DP or Modbus RTU communication channels, automatically switching to the backup channel in the event of a main link failure, with a switching time of < 50 ms to ensure uninterrupted data transmission.
The main card and backup card synchronize their status in real time via a redundant link, supporting “bumpless transfer” to prevent loss of control signals.
ABB IOD86-TR 57275707 supports hot-swappable modules (in a safe area), enabling maintenance without downtime, thereby enhancing system availability.
ABB IOD86-TR 57275707 features built-in LED indicators that display real-time communication status, power failures, channel errors, and other information, and supports remote diagnostics via ABB Freelance or 800xA configuration software.
ABB IOD86-TR 57275707 supports the Profibus DP V1 protocol and is compatible with Modbus RTU/TCP, enabling connection to third-party devices (such as Siemens PLCs and Rockwell variable frequency drives).
ABB IOD86-TR 57275707 supports DeltaV serial protocol extensions, allowing direct download of drivers to the module, adapting to complex heterogeneous networks.
ABB IOD86-TR 57275707 supports power redundancy configuration, ensuring module operation even in the event of a single power failure.
Product Using Principle
ABB IOD86-TR 57275707 can connect the AC800F controller to distributed I/O modules via redundant links, converting the controller's parallel instructions into serial data frames for transmission to field devices.
ABB IOD86-TR 57275707 supports Synchronous Mode to ensure consistent operation across multiple nodes.
The primary card synchronizes configuration data, control commands, and status information in real-time to the secondary card, which remains in hot standby mode and continuously monitors the primary card's health status. In the event of a primary card failure, the secondary card automatically takes over control while triggering an alarm notification to maintenance personnel, with the switchover process being transparent to the upper-level system.
Product Parameter
Below is ABB IOD86-TR 57275707 I/O Transceiver Board detail.
|
Parameter |
Specification |
|
Operating Voltage |
24V DC (powered by system power supply) |
|
Communication Rate |
Profibus DP: up to 12Mbps Modbus RTU: up to 115.2kbps |
|
Isolation Performance |
Isolation voltage between input/output and power supply ≥ 500V AC |
|
Operating Temperature Range |
-25°C to +60°C (industrial-grade wide-temperature design) |
|
Storage Temperature Range |
-40°C to +85°C |
|
Protection Rating |
IP20 (for indoor cabinet installation) |
|
Number of Nodes |
Supports up to 126 slave stations (Profibus DP network) |
|
Redundancy Switchover Time |
<50ms (typical value) |
