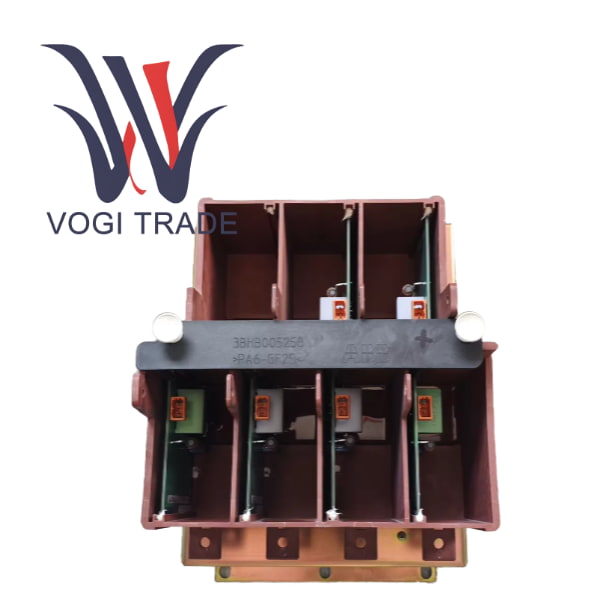

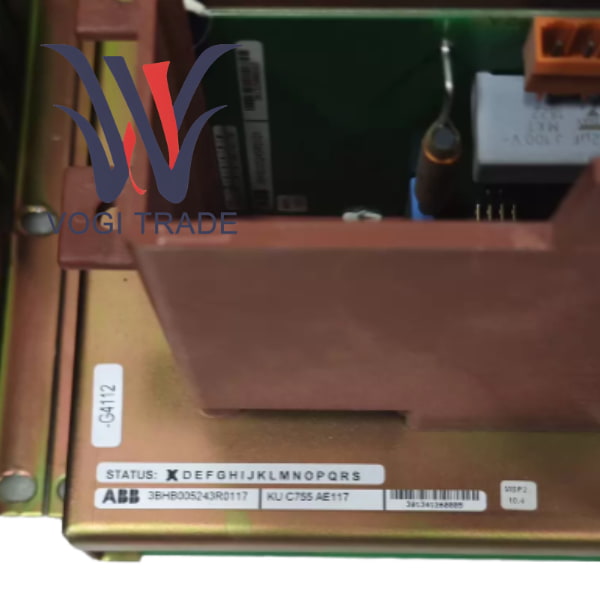

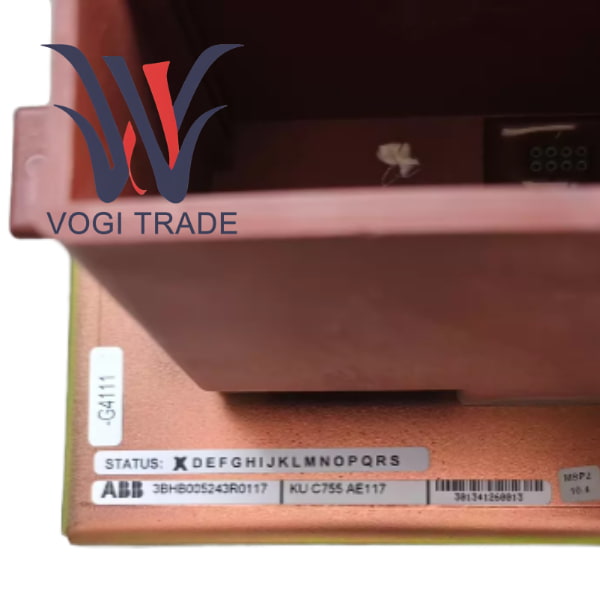

ABB KUC755AE117

Product Overview

ABB 3BHB005243R0117 is a dedicated and high-performance internal power module for the gate unit of ABB's industrial drive and automation product line. KUC755 AE117 is not an independent, directly applicable general-purpose power supply device for on-site power distribution. Instead, it is deeply integrated as a core functional subsystem into ABB's more complex power electronic equipment. Its main mission is to provide a highly stable, isolated, and pure DC power supply for the gate drive circuit of power semiconductor devices. In power electronic systems, the quality of the gate drive signal directly determines the on/off speed, switching loss, and overall reliability of the main power switch devices. And 3BHB005243R0117 is the energy foundation that ensures the stable operation of this critical link.

On-site Maintenance Case

Preventive Maintenance of the Variable Frequency Controller of the Circulating Water Pumps in an Offshore Power Plant

A large coal-fired power plant located in a tropical coastal area relies on multiple circulating water pumps driven by ABB medium-voltage variable frequency controllers for its cooling system. The region experiences high temperatures, high humidity, and strong sea wind and salt spray throughout the year. Although the variable frequency controllers are installed in an air-conditioned room, tiny corrosive particles still slowly penetrate.

The maintenance team of the power plant follows a condition-based preventive maintenance strategy. During a major annual overhaul, they planned to conduct a thorough inspection of all critical variable frequency controllers. Through historical data analysis, they identified the gate unit power supply as a potential weak point that had caused unplanned shutdowns in the past few years.

The maintenance engineers followed the procedures and opened the power unit of one of the variable frequency controllers. They carefully removed the old gate power supply module and replaced it with a brand-new ABB 3BHB005243R0117 original component. KUC755AE117 is produced by the original factory in Switzerland and uses the latest components and protection processes. After the replacement, through rigorous testing, the performance of the variable frequency controller was completely renewed.

This proactive preventive replacement successfully prevented an unexpected shutdown due to the aging and failure of the gate power supply during the next peak power usage period, ensuring the stable power generation of the power plant and demonstrating the significant value of using original high-quality spare parts in ensuring the reliability of critical infrastructure.
