Brand: ABB Description: Adapter Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB NCSA-01 is specifically designed for industrial automation scenarios to achieve seamless connection between ABB variable frequency drives and CS 31 distributed automation systems. Its core function is to communicate with the system master station via the CS 31 bus protocol and exchange data with ABB variable frequency drives via DDC fiber optic links to enable remote control and status monitoring of the variable frequency drives.
|
Manufacture |
ABB |
|
Model Number |
NCSA-01 |
|
Ordering Number |
NCSA-01 |
|
Catalog |
CS 31 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8504409999 |
|
Dimension |
12*8*6cm |
|
Weight |
0.2kg |
Product Features
ABB NCSA-01 can communicate with the master station via the CS 31 bus and with the variable frequency drive via the DDCS fiber optic link, enabling transparent data transmission between the two protocols.
ABB NCSA-01 supports bidirectional transmission of 1-3 data sets (each data set contains 3 16-bit data words), meeting different control requirements (default 1 data set, expandable via parameter configuration).
ABB NCSA-01 supports “Word Mode” (station numbers 0-5, shared station numbers require address indexing) and “Binary Mode” (station numbers 0-57, independent numbering), compatible with different CS 31 master station configurations.

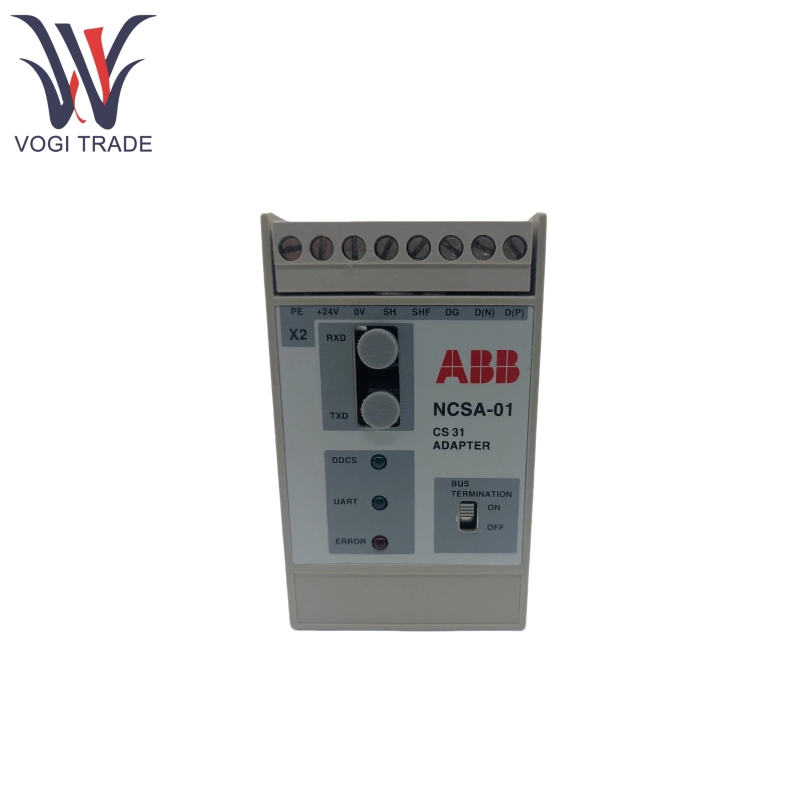

ABB NCSA-01 provides real-time feedback on link status via 3 LED indicators (DDCS, UART, ERROR), such as DDCS fiber optic link failures, CS 31 bus errors, and hardware faults, facilitating quick troubleshooting.
ABB NCSA-01 features built-in terminal resistors that can be enabled/disabled via a switch, accommodating bus end installation requirements and reducing signal reflection.
ABB NCSA-01 supports reliable grounding, optical link electrical isolation, and electromagnetic interference resistance (compliant with EMC standards EN 50081-2 and EN 50082-2).
Product Using Principle
ABB NCSA-01 can receive control commands sent by the master station via the CS 31 bus, which are encapsulated in the data set in the form of “data words.”
ABB NCSA-01 can convert CS 31 protocol data into DDCS protocol format and transmit it to the variable frequency drive via a fiber optic link. The operating status of the variable frequency drive is transmitted back to the NCSA-01 via the DDCS link, converted into CS 31 protocol, and sent to the master station.
ABB NCSA-01 can monitor the status of the CS 31 bus and DDCS link via built-in circuits. If a hardware fault is detected, it triggers an ERROR LED alarm.
If the module is located at the end of the CS 31 bus, enable the terminating resistor to reduce signal reflection and ensure stable communication.
Product Parameter
The following is ABB NCSA-01 Adapter Module detail.
|
Category |
Detailed Parameters |
|
Power Supply |
Operating voltage: 24V DC±10% Current consumption: 65mA External shielded cable power supply required |
|
Communication Interfaces |
- CS 31 bus: Shielded twisted pair (RS 485 standard), transmission rate 187.5kbit/s, maximum bus length 500m - DDCS link: Fibre optic cable (plastic core, 1mm diameter), transmission rate 4Mbit/s, maximum length 10m |
|
Data Transmission |
Supports 1-3 data sets in each direction (each data set contains 3 16-bit data words) Maximum frame length: 16 bytes in Word mode, 15 bytes in Binary mode |
|
Environmental Adaptability |
- Protection class: IP20 (dust-proof, for indoor use) - Operating temperature: 0-50°C - Installation temperature: -20-70°C - Storage temperature: -40-70°C - Relative humidity: 5-95% (no condensation) |
|

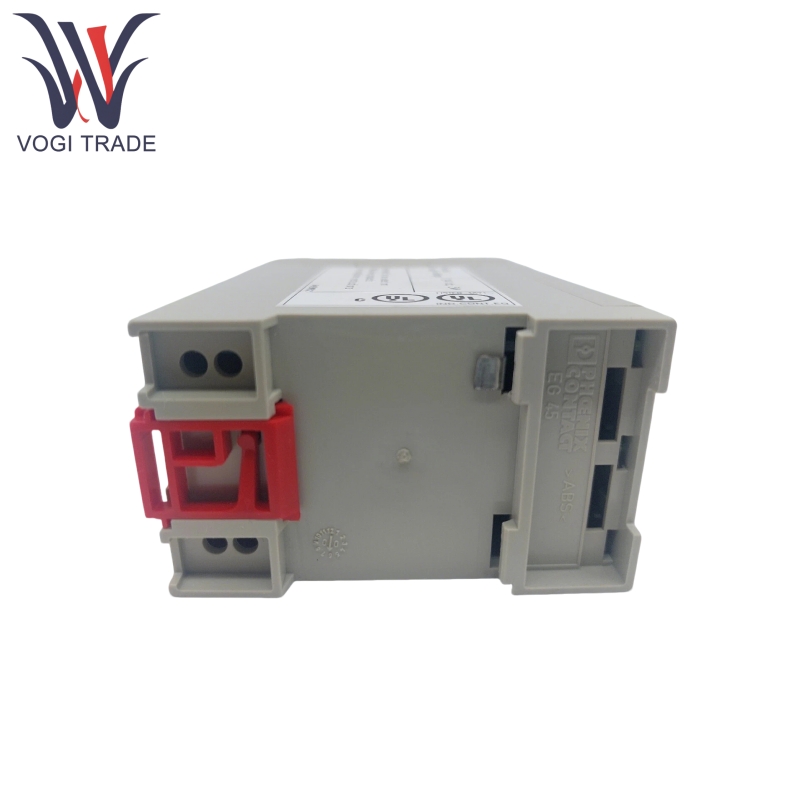

Mechanical Characteristics |
Vibration: Maximum 0.3mm (2-9Hz), 1m/s² (9-200Hz) Shock: 70m/s² (22ms) |
|

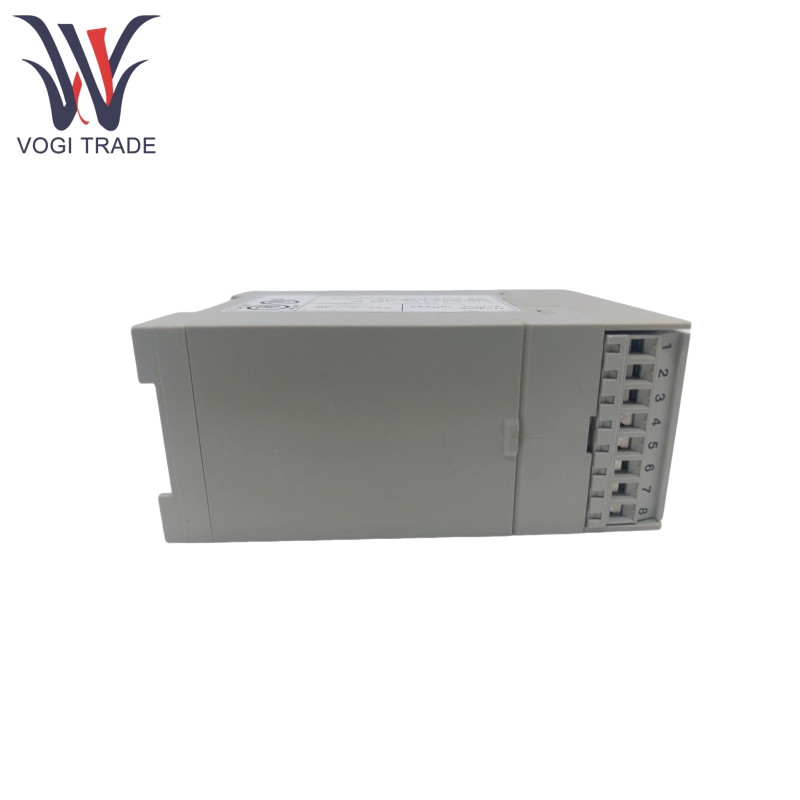

Terminals and Interfaces |
8-pole screw terminal block (X2), including data signals (D(P)/D(N)), grounding (PE/SH/SHF), power supply (+24V/0V) interfaces 9-Fibre optic interfaces (blue for receiver, grey for transmitter) |
