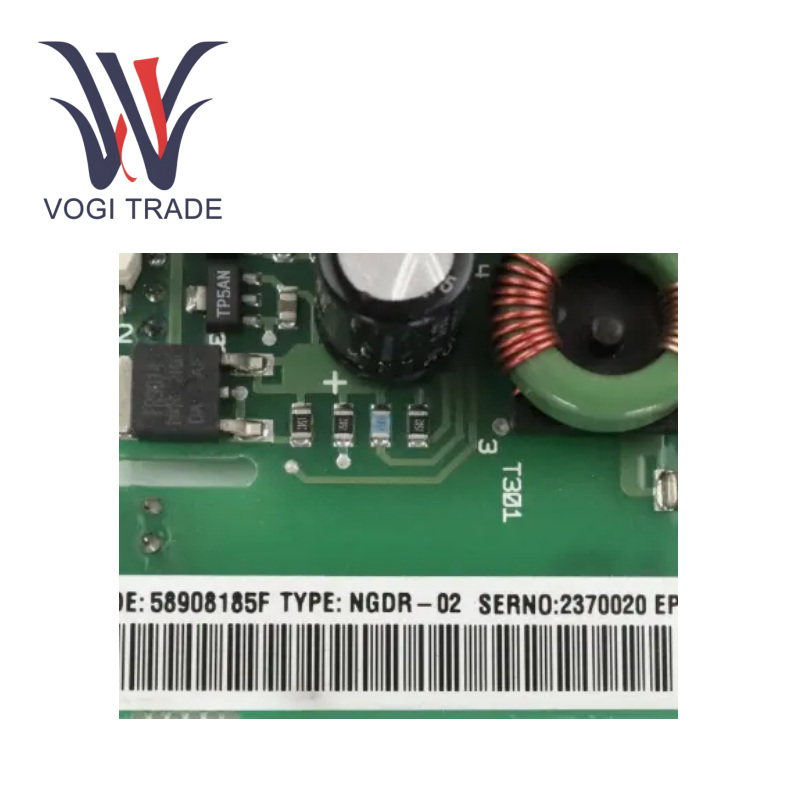

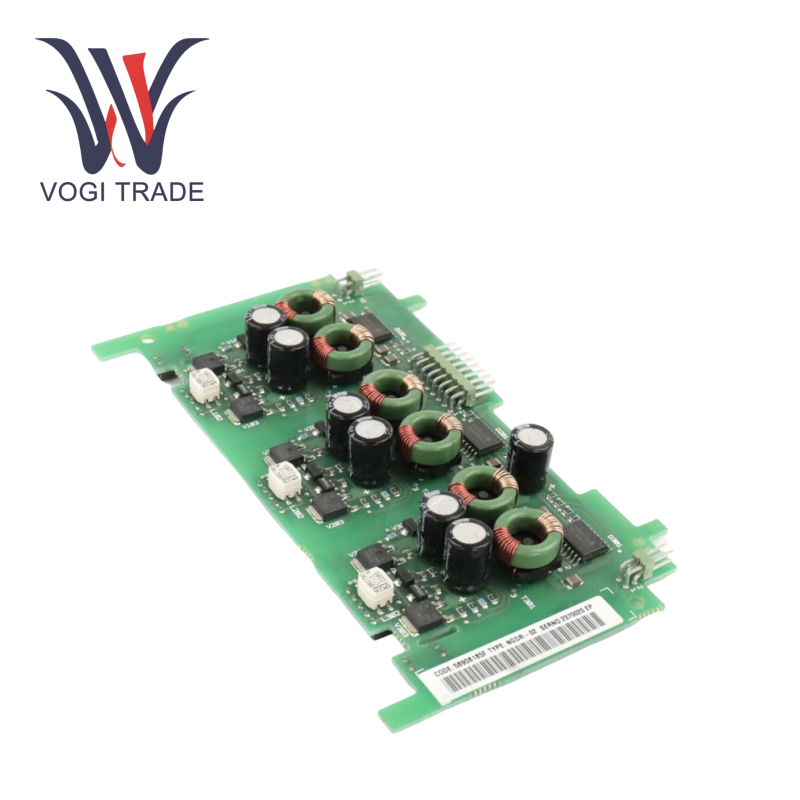

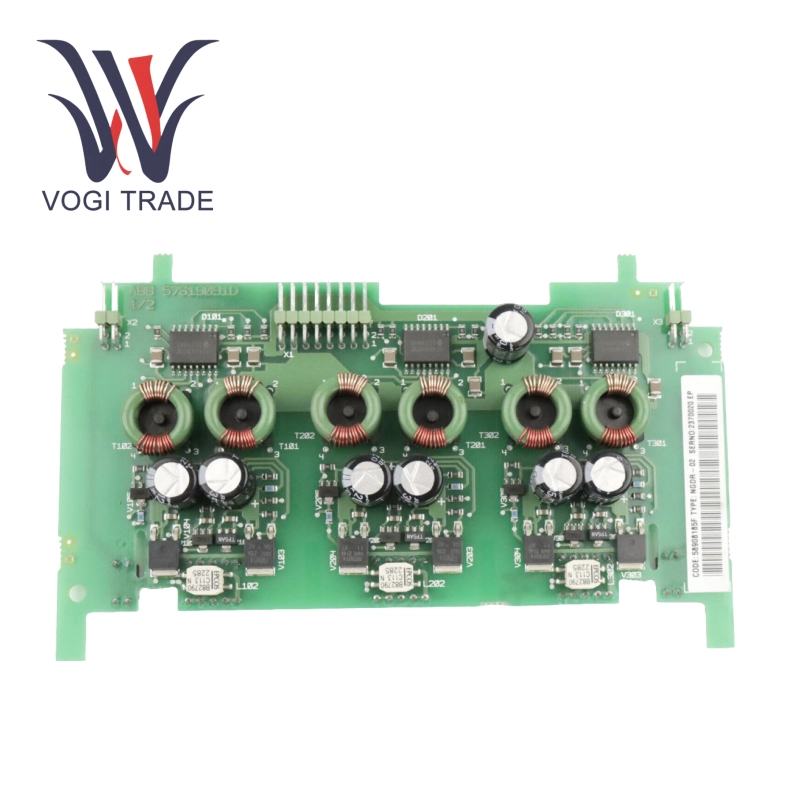

ABB NGDR-02

Detailed technical parameters

Structural form: Modular design, supports on-site installation

Working voltage: 24V DC

Processor type: Hard PLC instruction processor, processing speed ≤523μs

Communication interface: Supports industrial bus protocols such as Profibus DP and RS485

Capacitor life: Built-in high-quality electrolytic capacitors, designed life of about 90,000 hours

Environmental adaptability: Working temperature range -25℃ to +90℃, humidity ≤60%

Functional features

1. Multi-protocol communication core

ABB NGDR-02 supports mainstream industrial buses such as Profibus DP and RS485, realizes real-time data interaction between the inverter and PLC, HMI and other devices, and ensures system communication stability

2. High reliability drive control

As the core processing unit of the inverter, ABB NGDR-02 adopts modular structure and military-grade electronic components, built-in long-life capacitors, and can withstand harsh industrial environments such as dust and humidity

3. Compatibility and scalability

ABB NGDR-02 can be adapted to multiple series of ABB inverters such as ACS600 and ACS800, supports hard PLC programming and parameter configuration, and is convenient for function customization and system upgrades.

4. Safety protection mechanism

Integrates multiple protection functions such as overcurrent, overvoltage, and overheating, monitors the motor operation status in real time, and reduces the risk of damage to the IGBT module due to pulse distortion

Application scenarios

Production line motor control: Accurately adjust the motor speed and torque in automobile manufacturing and food processing lines

Heavy machinery drive: Variable frequency speed control systems for equipment such as mine hoists and port cranes

Energy infrastructure: Energy-saving variable frequency control of public facilities such as water pumps and fans

Automated warehousing system: Drive unit of logistics sorting equipment and AGV carts
