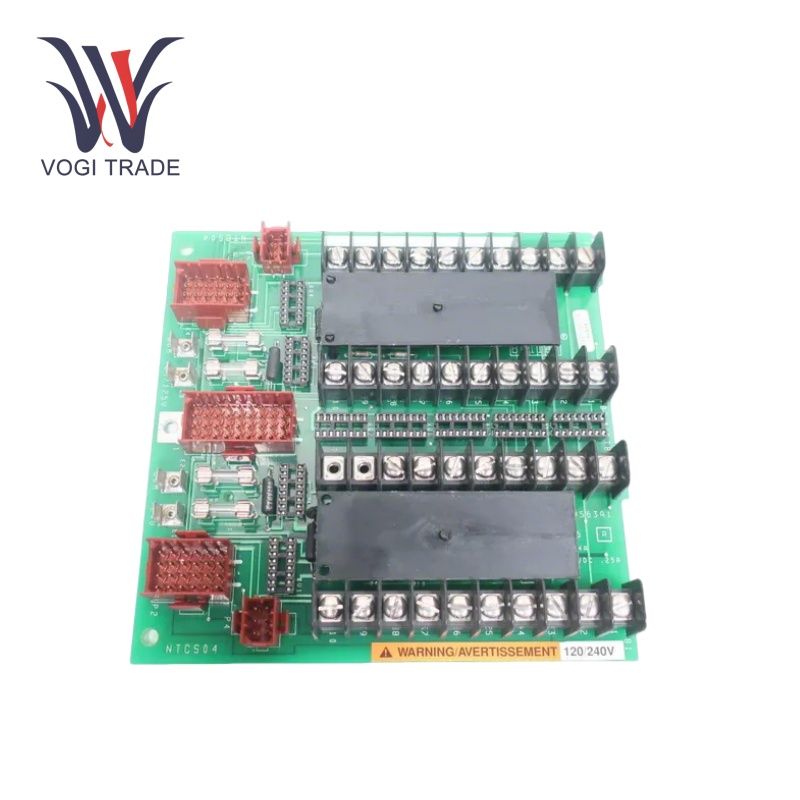

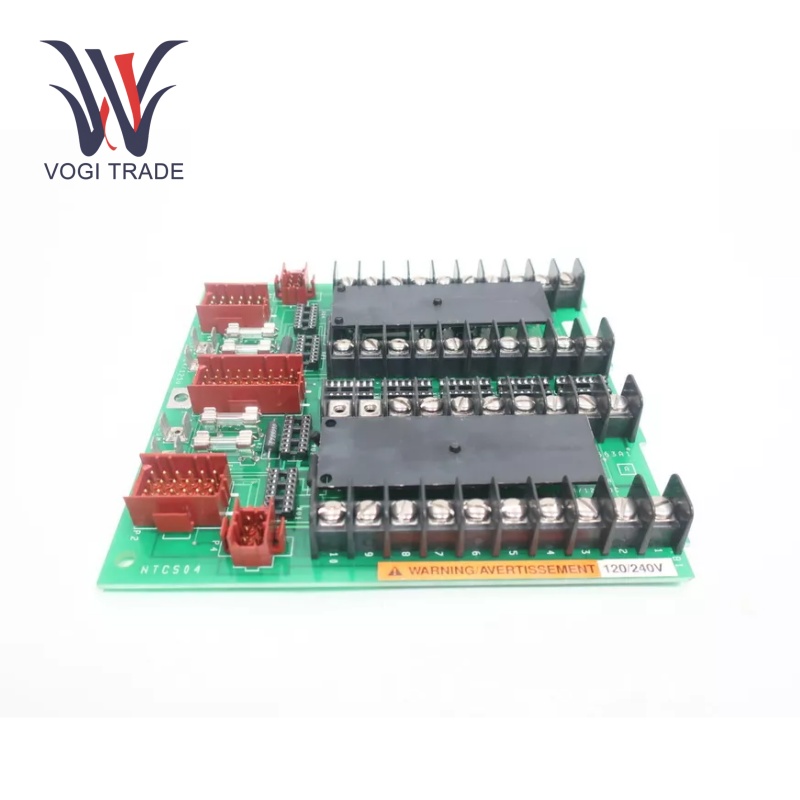

ABB NTCS04

Technical Parameters

Rated voltage: 24 V DC

Rated current: 4 A

Control voltage range: 18-30 V DC

Maximum switching power: 100 W (DC) / 200 VA (AC)

Operating temperature: -40°C to +85°C

Protection class: IP40

Functional Features

Digital Signal Terminal: ABB NTCS04 is essentially a control I/O terminal unit. It represents a unified connection point for digital input signals from various field devices. This prevents these signals from being sent to the control system. When each sensor in different areas of a large industrial complex is connected to it, it can terminate the signal so that the control system can reflect accurate data.

Compatible with ABB control systems: ABB NTCS04 has high compatibility with various ABB control systems, such as INFI 90, IMC IS X2, IM QRS 02, and NK TU 01. This compatibility facilitates effective communication between field devices, NTCS04, and control systems. It can be used in unmanned industries to interact with various elements of industrial automation systems and carry data and control commands. In the ABB INFI 90 control system of a power plant, it can be connected with sensors, allowing it to transmit power generation data to the control system to supervise the power generation process.

Mountable on standard DIN rail: ABB NTCS04 is designed for standard DIN rails. This also makes installation very simple, as it can be easily clipped onto the DIN rail in the control cabinet. Technicians can quickly install it without having to worry about complicated mounting brackets or other hardware. Since they are mounted on the DIN rail, the modules can also be easily removed or replaced during system upgrades or maintenance, minimizing downtime.

High-quality materials: ABB NTCS04 is made of high-grade materials. The housing is made of strong and impact-resistant materials. Its rugged build quality makes it suitable for industrial use, where vibration, shock, and harsh chemicals are common. In manufacturing plants that contain heavy machinery, the module can handle vibrations without causing internal components to loosen or break.

Application areas

Industrial areas:  ABB NTCS04 is used to connect digital sensors and switches to control systems in automated production lines in manufacturing plants. It can accept signals from sensors that can detect whether a part is present, whether parts are properly arranged during assembly, and whether machine tools are functioning properly. This allows the control system to regulate the movement of robotic arms, control the speed of conveyor belts, and manage the operation of different manufacturing processes by sending these signals. Reduce errors and improve product quality. It can also process signals from sensors to monitor the position of automotive parts on the assembly line, enabling seamless assembly in automotive manufacturing plants.

Industrial sector：ABB NTCS04 is used in process industries, including chemical and petrochemical, food and beverage. Taking a chemical plant as an example, it can process signals from sensors that monitor the status of valves, pumps, and reactors. The signals are processed and transmitted to the control system that performs real-time control so that various operations such as chemical reactions, distillation, etc. can be carried out accurately. It can also process signals from sensors that monitor the filling level of packaging machines, the temperature of cooking equipment, and the presence of contaminants used in food and beverage factories. They ensure that the correct data is used for control to maintain product quality and safety.

Power plant: ABB NTDI04 can process status signals from boilers, turbines, and generators in thermal power plants. These signals are processed and transmitted to the control system of the power plant, which optimizes power generation, performs real-time power generation adjustments, and ensures safe operation of the power plant. It can also process signals from sensors that monitor water levels, water flows, and turbine blade positions in hydroelectric power plants, allowing the hydroelectric power plants to operate stably.
