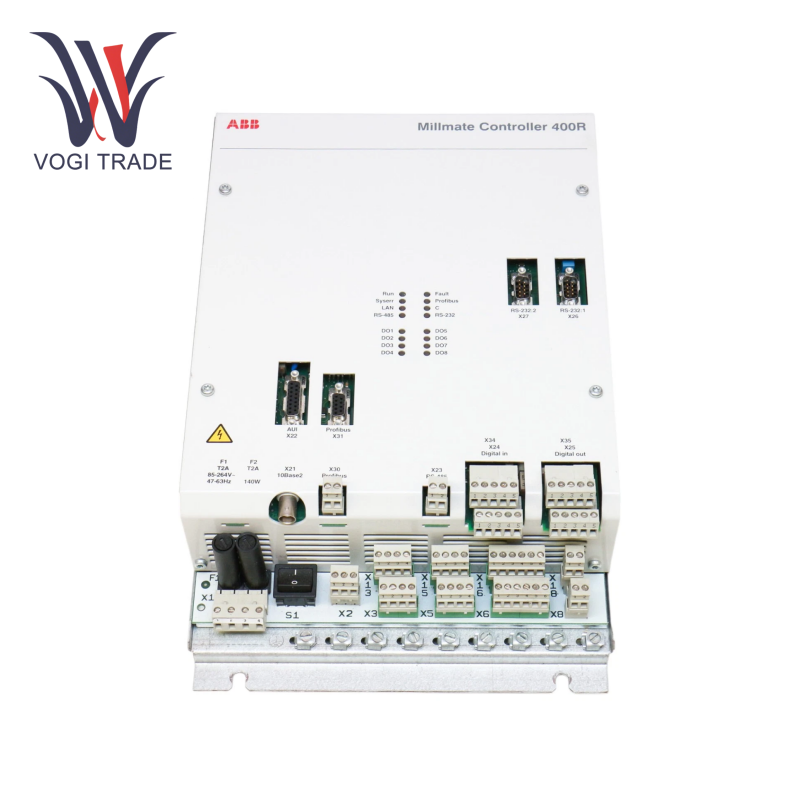

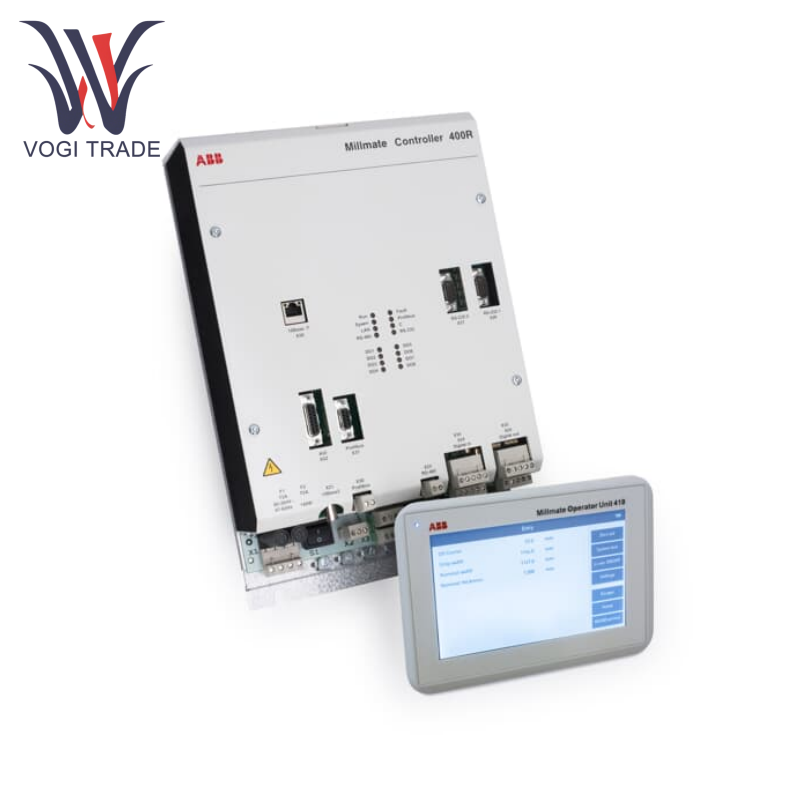

Brand: ABB Description: Control Unit Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen ABB PFXA401 3BSE024388R1 is a multifunctional industrial control module launched by ABB, which is suitable for tension control, voltage regulation and motion sequence management, and is widely used in automated production lines, motor control, metallurgy, paper making and other fields.
|
Manufacture |
ABB |
|
Model Number |
PFXA401 |
|
Ordering Number |
3BSE024388R1 |
|
Country Of Origin |
Sweden |
|
HS CODE |
8538900000 |
|
Dimension |
40*30*10cm |
|
Packing Dimension |
42*32*12cm |
|
Weight |
5.5kg |
Technical Parameters
Digital input: 8 to 16 channels
Digital outputs: 8 to 16 channels
Analogue input: 2 to 4 way
Analogue output: 4-way
Supply voltage: 24V DC
Operating Temperature: -20℃ ~ +60℃
Protection grade: IP65
Principle of Use
Input signal processing: ABB PFXA401 3BSE024388R1 receives sensor signals (e.g. tension, voltage changes) through the analogue/digital input port, and generates control commands after processing by internal algorithms.
Voltage control: ABB PFXA401 3BSE024388R1 monitors the system voltage fluctuation in real time, and adjusts the output through PID algorithm to maintain a stable power supply (e.g. PFXA401 3BSE024388R1 model).
Tension control: Combined with the feedback from the load cell, it calculates the strip tension and carries out closed-loop adjustment to ensure the stability of material transfer in the production line (applicable to paper making and metallurgy scenarios).
Distributed control: ABB PFXA401 3BSE024388R1 interacts with a host computer, PLC or DCS system via Ethernet or fieldbus (e.g. Profibus) for data synchronisation and remote monitoring.
Programming control: Use MotionStudio and other software to configure parameters and debug motion trajectories, supporting offline programming and real-time adjustment.
