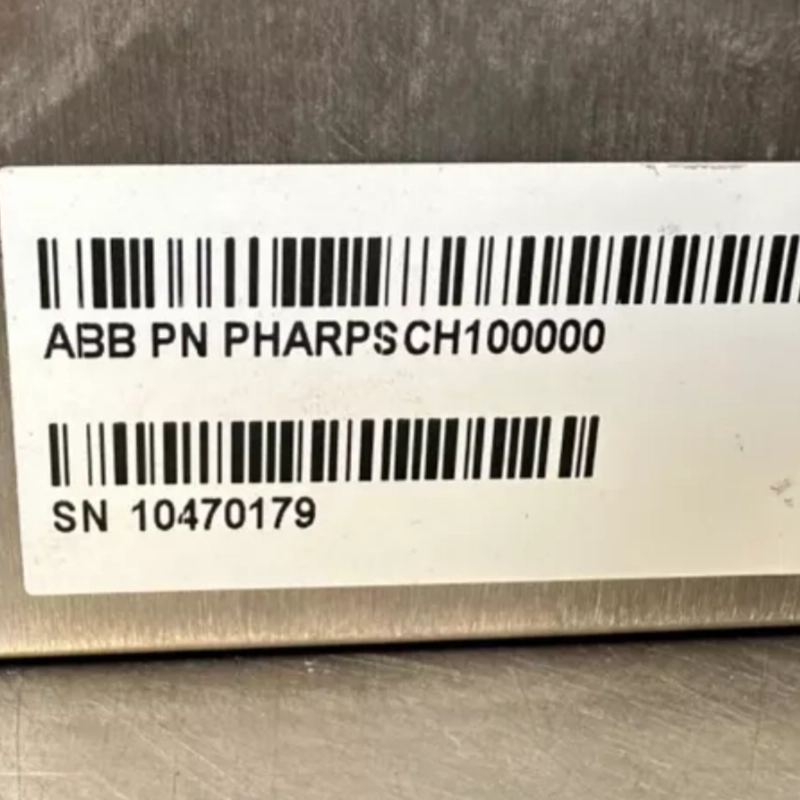

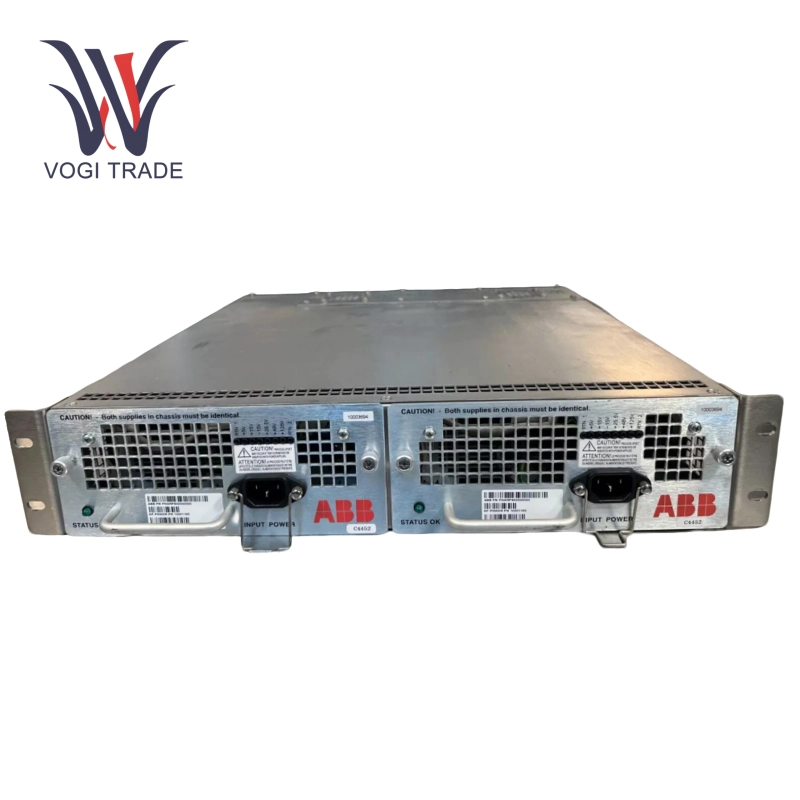

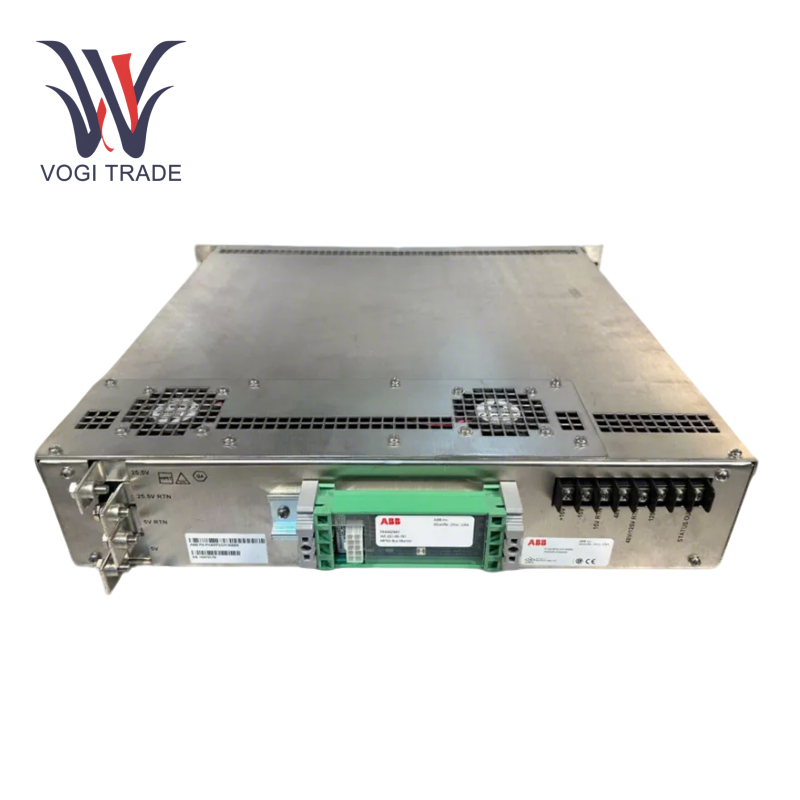

ABB PHARPSCH100000

Technical Parameters

Input voltage: 24V DC (main mode) or 120/240V AC (dual mode compatible)

Output voltage: 24V DC, power 50W

Processing capacity: 5000 instructions/second

Storage Capacity:512MB RAM + 4GB Flash

Communication interface: Ethernet, RS-232, RS-485

Operating temperature: -20°C ~ +60°C

Product Features

Multi-functional integration: Both power conversion and control functions, ABB PHARPSCH100000 support for multiple outputs (three DC) and complex signal processing (mixed digital and analogue), reducing the number of system components .

High precision and reliability: Swiss manufacturing process, voltage adjustment rate ≥ 80%, output accuracy of 95%, to adapt to the complex environment of electromagnetic interference.

Strong communication scalability: integrated Ethernet, RS-232/485 interface, to achieve equipment interconnection and real-time data sharing, to support the intelligent needs of Industry 4.0.

Modular design: support rapid disassembly and replacement, reduce maintenance costs; wide temperature range version to meet the needs of extreme environmental operation.

Principle of use

Power Management: ABB PHARPSCH100000 converts external AC or DC input into a stable 24V DC power supply required by the system, and ensures power supply continuity through redundant design.

Data Processing and Control: The built-in high-performance processor executes the control logic, monitors input signals in real time, and outputs commands to actuators.

Communication Coordination: As a communication hub, ABB PHARPSCH100000 coordinates the data interaction between modules and integrates with the upper DCS/PLC system through Ethernet to achieve remote monitoring and command issuance.

Fault diagnosis and protection: Built-in self-test function, power supply abnormality, communication interruption and other faults trigger alarms, and through isolation technology to prevent the spread of interference.
