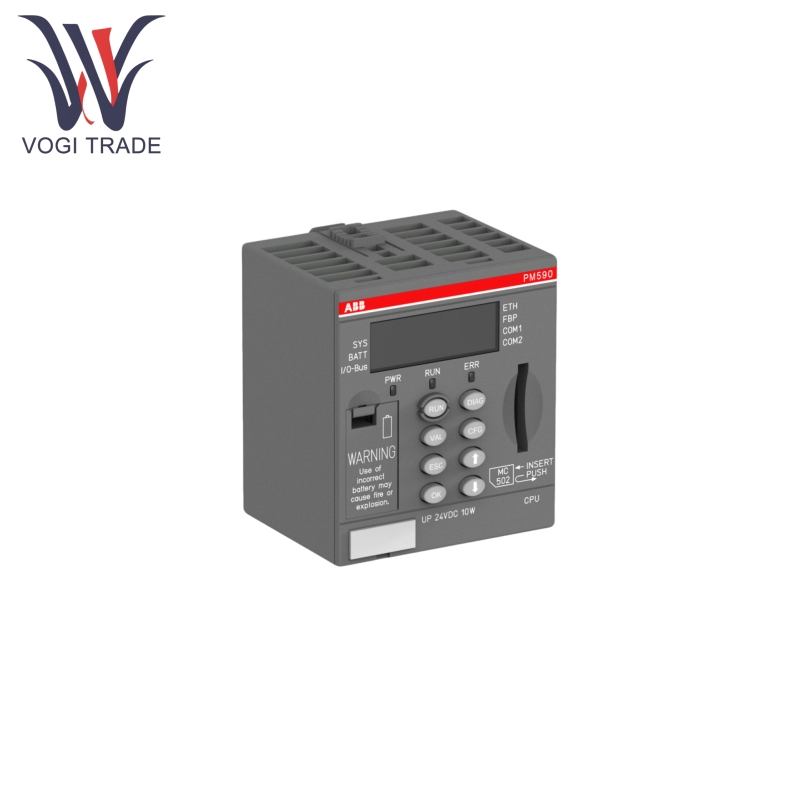

ABB PM590-ETH

Product Features

ABB PM590-ETH is equipped with a 32-bit Freescale ARM processor with a clock speed of 400MHz and supports fast instruction execution (minimum cycle time of 0.002µs for binary instructions).

ABB PM590-ETH has 2MB of program memory (flash EPROM+RAM), 3072kB of data memory (including 1536kB buffer), and supports memory card expansion (for user data storage, program backup and firmware update).

ABB PM590-ETH has built-in Ethernet interface (10/100 base-TX, 1x RJ45), supports TCP/IP, Web server, SNTP and IEC60870-5-104 protocols for remote monitoring and data uploading.

ABB PM590-ETH has 2 RS-232/485 interfaces (configurable, rate 0.3~187.5 kB/s), supporting Modbus (master/slave), CS31 bus protocol, compatible with programming and serial communication.

ABB PM590-ETH has 1 FBP interface to support fieldbus expansion and can connect up to 4 external communication modules (e.g. PROFIBUS DP, CANopen, etc.).

ABB PM590-ETH has a battery backup of data, a typical data buffer time of 3 years after power failure (+25°C) and a low battery alarm 2 weeks in advance.

ABB PM590-ETH is equipped with LCD display, 8 function keys and LEDs, and supports RUN/STOP switching, status display and fault diagnosis.

ABB PM590-ETH supports password-protected user programs to prevent unauthorized modifications.

Product Using Principle

ABB PM590-ETH can receive digital/analog signals from on-site sensors via I/O expansion modules and transmit them to the processor via RS-232/485 or FBP interface.

ABB PM590-ETH can perform real-time arithmetic on the collected data and execute control logic based on the logic program written by the user.

ABB PM590-ETH can convert the operation results into control signals and drive the actuators through I/O modules to realize the regulation of the production process.

ABB PM590-ETH can upload data to SCADA system or host computer through Ethernet interface, and receive remote control commands at the same time; locally, it can realize status query and operation through display screen and keypad.

ABB PM590-ETH can backup key data via battery, store program and configuration parameters in memory card, and support firmware on-site update.

Product Application

ABB PM590-ETH can be widely used in manufacturing industry, energy industry, infrastructure, harsh environment, etc.

Manufacturing industry:

production line automation control (such as automobile assembly, machining), to realize equipment linkage and process parameter adjustment.

Energy industry:

Unit control in power, oil and gas fields (such as generators, pumping units), access to the dispatching system through the IEC60870-5-104 protocol.

Infrastructure:

Process control in water treatment and wastewater treatment plants, supporting remote monitoring and fault diagnosis.

Harsh environment:

XC version is suitable for metallurgy, chemical industry and other high temperature, high humidity or corrosive environment to ensure stable operation.

Product Parameter

The following is ABB PM590-ETH Processor Module detail.
