ABB PP846A 3BSE042238R2

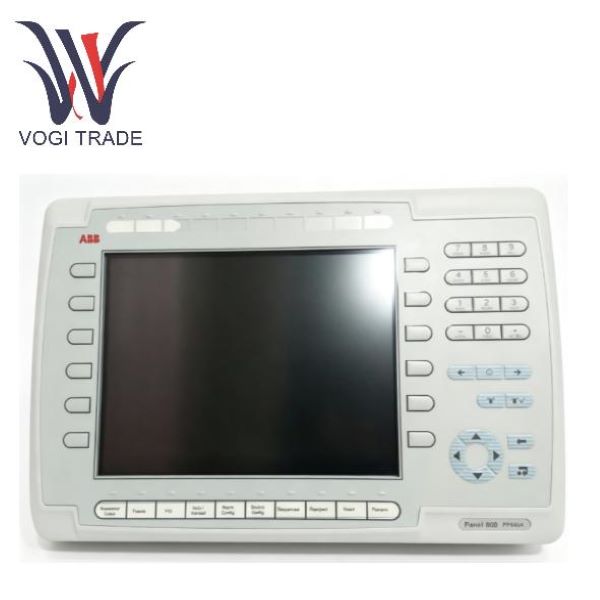

The ABB PP846A 3BSE042238R2 is a 10.4-inch industrial HMI operation Panel of the Panel 800 series, specially designed for the ABB 800xA/AC800M DCS system. It features dual operation of resistive touch screen and physical hard keys. It is equipped with functions such as process monitoring, equipment operation, alarm events, trend recording, and permission management. The front panel is IP65 protected, with strong anti-interference ability, making it suitable for on-site operation in process industries such as chemical engineering, power, and water treatment. By connecting the controller via Ethernet and configuring it, on-site human-machine interaction can be achieved, facilitating local monitoring and intervention by inspection personnel.

Product Advantages

1. Dual operation mode:

Physical hard buttons are suitable for operation in workshops while wearing gloves, and touch screens are used for fine picture operation, adapting to industrial field working conditions.

2. Native compatibility with ABB DCS:

Deeply compatible with 800xA and AC800M systems, with stable communication and no need for additional protocol conversion.

3. Reliable industrial protection:

The front panel is IP65 dust-proof and splash-proof, operates within a wide temperature range, is resistant to vibration and electromagnetic interference, and is suitable for harsh workshop environments.

4. Local redundant operation:

It can serve as a local operation station on site. When the DCS host in the central control room malfunctions, the site can still independently monitor and operate.

5. Easy maintenance:

The USB port enables quick uploading and downloading of programs and export of historical data. Fault information is directly displayed on the panel for convenient troubleshooting.

Application Scenarios

Primarily designed to complement ABB AC800M/800xA distributed control systems (DCS), these units are widely used in process industries:

Power Generation: Power plant boilers, auxiliary equipment, and substation local operation panels.

Chemical & Petrochemical: Reaction vessels and pipeline process field operation stations.

Pulp & Paper, Water Treatment, & Pharmaceuticals: Production line local monitoring panels.

Metallurgy, Cement: Factory floor DCS local HMI operation.

Application: Control cabinets or field-mounted operation panels; serves as an alternative to central control room remote operation, facilitating on-site inspections and local manual intervention.

Installation and Maintenance

1. Installation: Drill holes in the control cabinet panel for embedded installation, tighten the panel clips, and ensure proper sealing strips to guarantee IP65 protection.

2 Wiring communication: Connect to the AC800M controller system network via Ethernet cable. Serial communication can also be used.

3. Screen configuration: Draw process screens, configure alarms, trends, and button logic in ABB's dedicated configuration software, and download them to the HMI.

4. Power-on debugging: Power on, set the IP address, and establish a communication connection with the controller; Test screen data collection, button control output, and alarm triggering.

5. Daily operations: Operators can touch the screen or press the hard buttons on the side to view parameters, start and stop equipment, and confirm alarms. Regularly export historical records via USB.

6. Maintenance: Regularly clean the screen and check the power supply and communication lines. When replacing spare parts, directly import the original picture project files for quick recovery.
