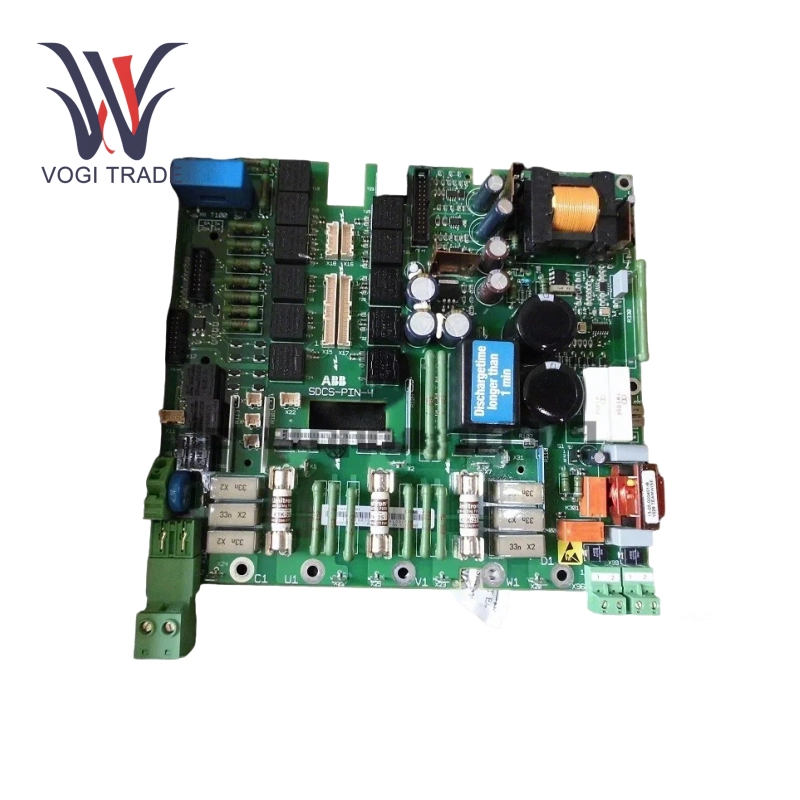

ABB SDCS-PIN-4-COAT 3ADT314100R1001

Technical parameters

Input voltage: 24 VDC

Control voltage: 24 VDC

Maximum input current: 2A

Operating temperature: 0°C to +55°C-

Storage temperature: -40°C to +85°C

Relative humidity: 5%-95% (non-condensing)

Electrical standards: Comply with electromagnetic compatibility standards such as EN 61000-6-3, EN 61000-6-2

Principle of use

Power interface function: ABB SDCS-PIN-4-COAT 3ADT314100R1001 provides a stable power interface through 24V DC input to power the drive system (such as inverter, servo motor), and realizes voltage/current conversion and distribution through internal circuits, built-in onboard transformer and relay output, supports multi-channel signal isolation, and ensures signal stability in high noise environments.

Signal processing and control: Receive control instructions from PLC or DCS, through digital control technology Adjust the output signal and drive the actuator (such as motor speed regulation, valve opening and closing). Use PWM (pulse width modulation) technology to achieve precise adjustment of the output voltage to adapt to different load requirements.

System integration: ABB SDCS-PIN-4-COAT 3ADT314100R1001 is a component of ABB drive control system. It interacts with the host computer or other control devices through standard industrial protocols (such as Modbus) and supports distributed control architecture.
