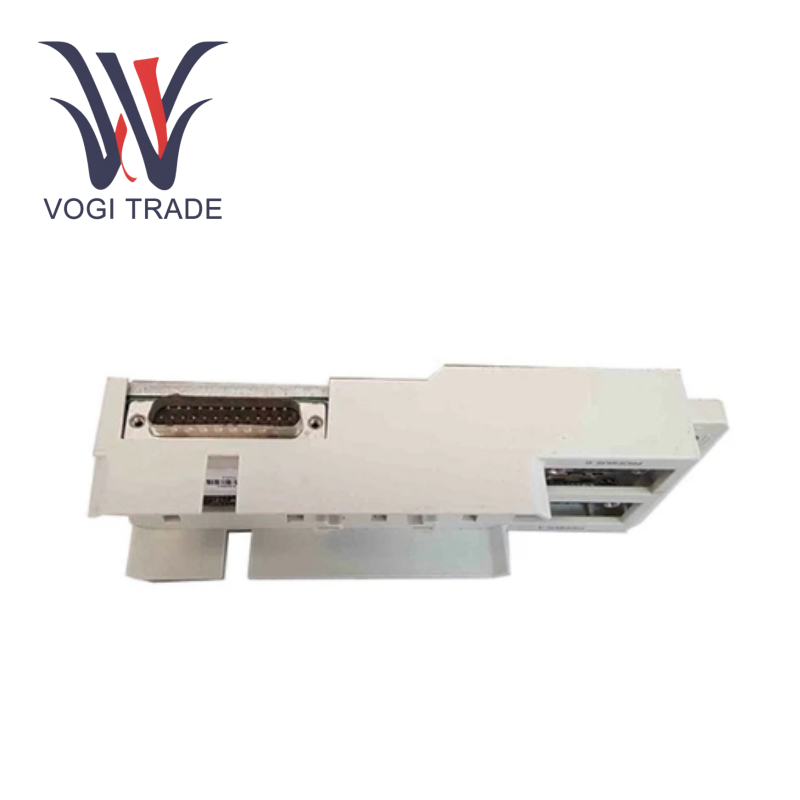

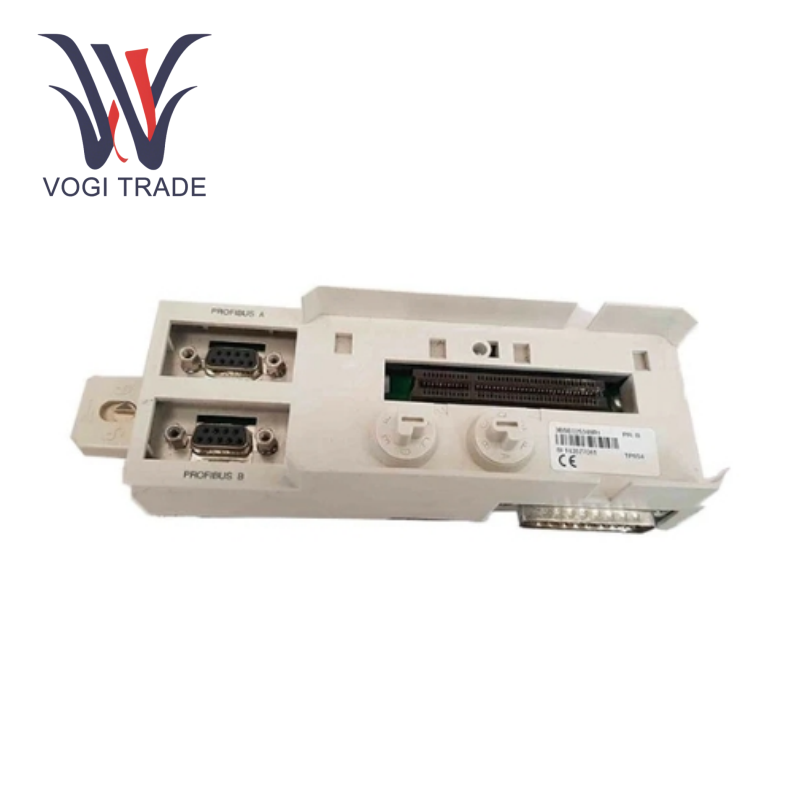

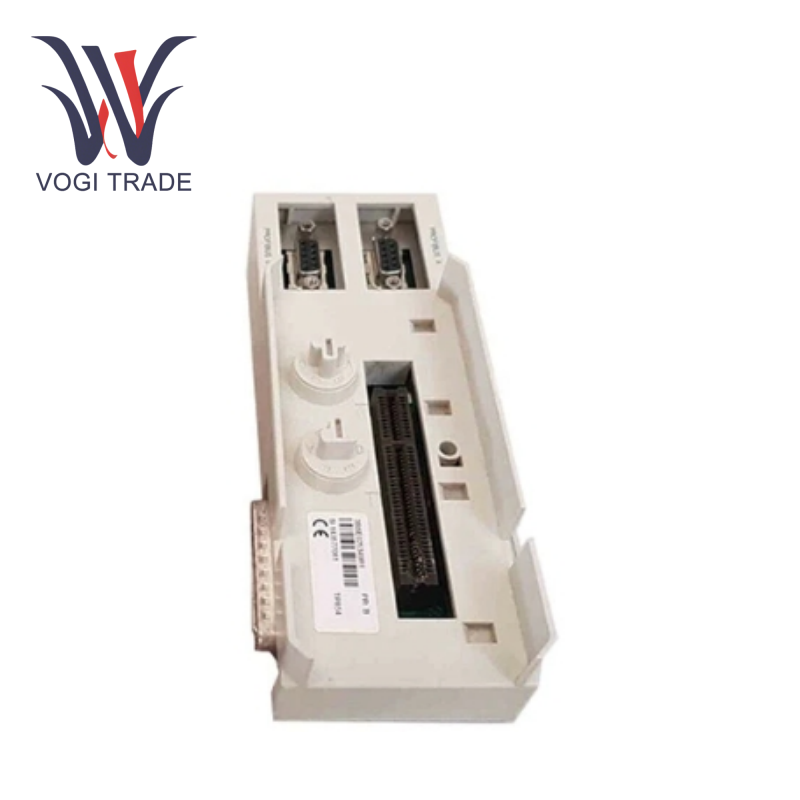

Brand: ABB Description: Adapter Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty:20 Payment Term: T/T Shipping Port: Shenzhen ABB TP854 3BSE025349R1 is a Baseplate that provides a stable physical mounting platform and reliable electrical connections and is the core component of the control system.
|
Manufacture |
ABB |
|
Model Number |
TP854 |
|
Ordering Number |
3BSE025349R1 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
85013100 |
|
Dimension |
16*16*6cm |
|
Packing Dimension |
18*18*8cm |
|
Weight |
0.8kg |
Technical parameters
Protection level: IP20
Operating temperature: 0°C to +55°C;
Storage temperature: -40°C to +70°C
Power supply voltage: 24V DC
Output frequency: 30kHz (associated control board function)
Support Profibus-DP/V1 protocol, redundant configuration
Installation method: DIN rail installation
Functional features
1. Industrial-grade physical support
ABB TP854 3BSE025349R1 uses a composite material substrate to provide high load capacity and anti-seismic structure to ensure zero displacement operation of CI854 modules in a vibration environment
2. Deep system compatibility
As a dedicated base for ABB 800xA and AC 800M control systems, ABB TP854 3BSE025349R1 achieves seamless plug-in with CI854 modules through a dedicated interface, and is compatible with S800 I/O system expansion modules
3. High reliability design
With EMC anti-interference certification, it can work continuously in G3 corrosion environment (ISA-S71.04 standard) and 95% humidity without condensation, meeting the requirements of 24/7 continuous operation
4. Maintainability optimization
ABB TP854 3BSE025349R1's rail mounting structure and screw terminal design support hot swapping and quick replacement, greatly reducing system downtime
Compatible supporting products
Core module: CI854 communication interface module (mandatory)
Control system: ABB 800xA DCS, AC 800M PLC
Expansion components: S800 I/O module, AC500 PLC controller
Application scenarios
Process control: Pharmaceutical factory reactor temperature monitoring system (equipped with CI854 module to collect sensor data)
Production line automation: Food processing and packaging line robot control unit (integrated in AC 800M PLC cabinet)
Energy infrastructure: Thermal power plant DCS system redundant communication node (connected to protection relay via Profibus-DP)
Building management: Commercial complex HVAC system fan control terminal unit (supports Modbus TCP/IP protocol
