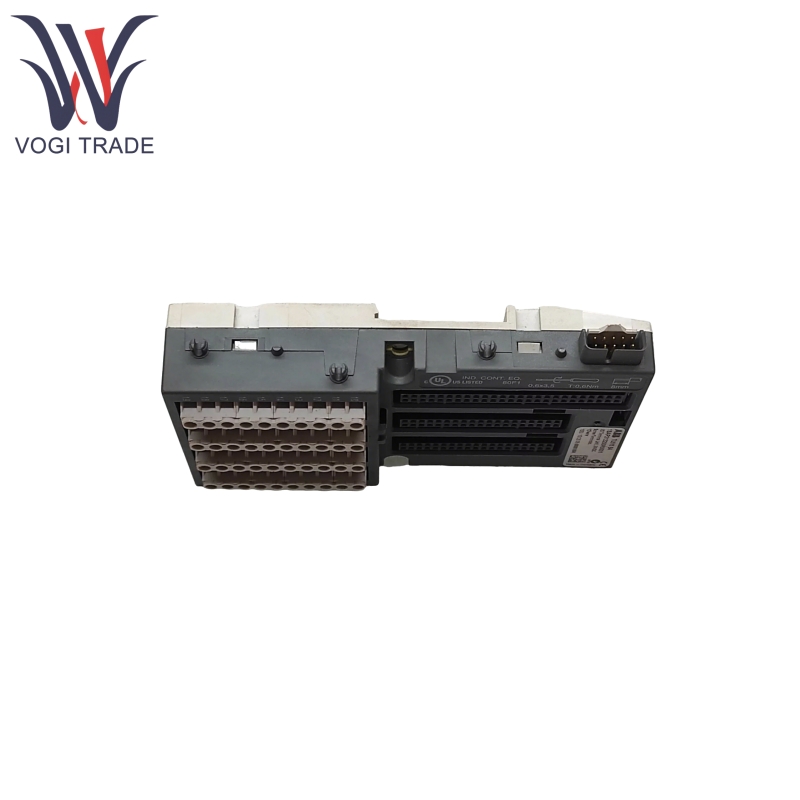

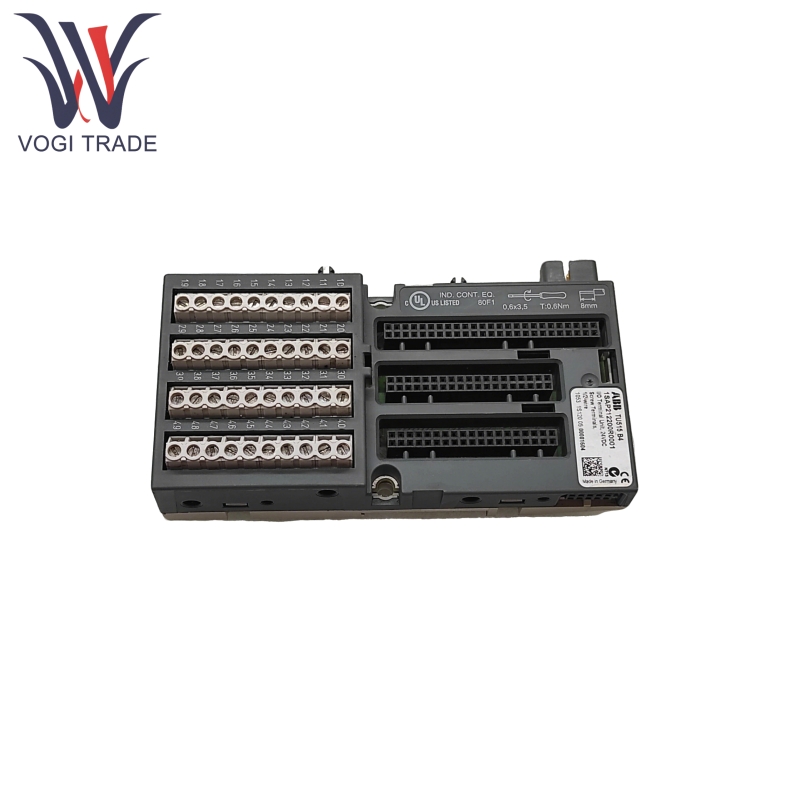

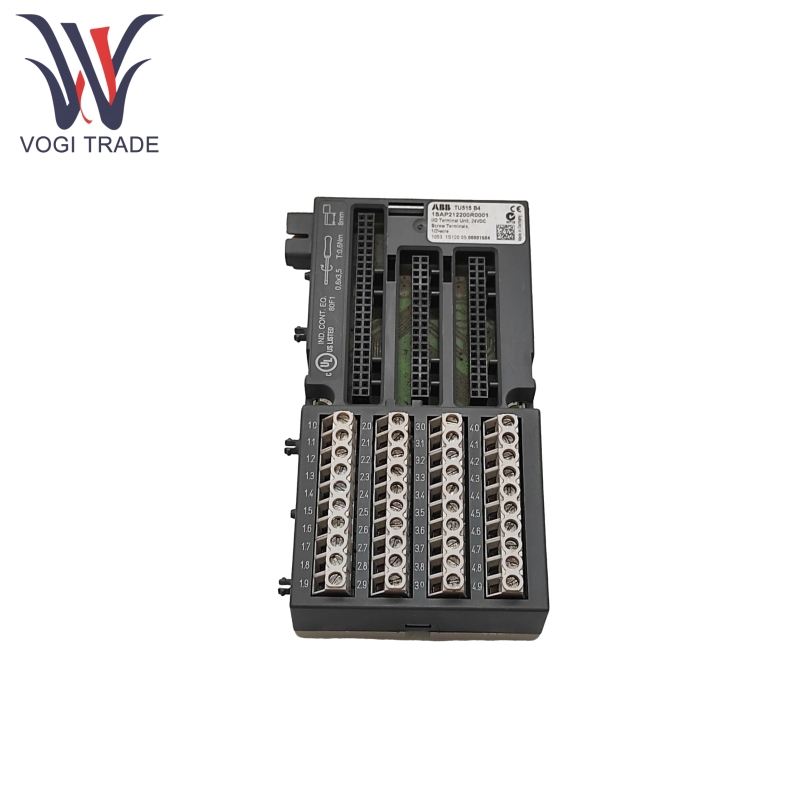

Brand: ABB Description: I/O Terminal Unit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB TU515 1SAP212200R0001 main function is to provide a connection interface for 24 V DC digital I/O modules, supporting screw terminal connection. It is designed as a signal transfer component in industrial automation control systems, used to expand the input/output capabilities of PLCs and adapt to the transmission requirements of analog and digital signals. It is widely used in the construction of modular automation systems.
|
Manufacture |
ABB |
|
Model Number |
TU515 |
|
Ordering Number |
1SAP212200R0001 |
|
Catalog |
S500 I/O |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
14*8*4cm |
|
Weight |
0.2kg |
Product Features
ABB TU515 1SAP212200R0001 is equipped with screw terminals, supporting wire connections with cable cross-sections ranging from 0.08 to 2.5 mm², ensuring stable electrical contact and suitability for long-term use in industrial environments.
ABB TU515 1SAP212200R0001 features no configurable analog I/O channels (primarily digital signals), focusing on the conversion and transmission of 24 V DC signals.
ABB TU515 1SAP212200R0001 has an IP20 protection rating, suitable for indoor industrial control cabinets and other non-dusty, non-humid environments. The operating temperature range is 0°C to +60°C, and the storage temperature range is -40°C to +70°C, capable of withstanding temperature fluctuations in most industrial scenarios.
ABB TU515 1SAP212200R0001 supports use in environments up to 2,000 meters above sea level, meeting the needs of industrial applications in high-altitude regions.
ABB TU515 1SAP212200R0001 is compatible with both DIN rail (TH35-15) and panel mounting installation methods, accommodating different control cabinet layout requirements.
Product Using Principle
TU515 1SAP212200R0001 can be connected to the signal cables of field sensors and actuators (0.08–2.5 mm²) via screw terminals, and communicates with the PLC's CPU module or other expansion units via the I/O-Bus interface at the other end, forming a signal transmission link.
TU515 1SAP212200R0001 provides a power supply interface for connected 24 V DC I/O modules, ensuring their normal operation.
As a modular component, ABB TU515 can be expanded in series or parallel with multiple I/O modules, helping the PLC system expand its signal processing capabilities and achieve monitoring and control of more field devices.
Product Application
TU515 can be used in industrial automation production lines, such as automobile manufacturing and electronic assembly lines, to connect digital signals from equipment such as conveyors, sensors, and solenoid valves.
In the chemical and food and beverage industries, ABB TU515 can be used in conjunction with analog I/O modules to collect signals such as temperature and pressure, and then transfer them to a PLC for processing.
With marine-grade certification (ABS, BV, etc.), ABB TU515 can be used for signal conversion in ship automation systems and port machinery control systems.
TU515 can be used for infrastructure monitoring, such as in control cabinets at water treatment plants and power substations, to achieve centralized management of distributed I/O signals.
