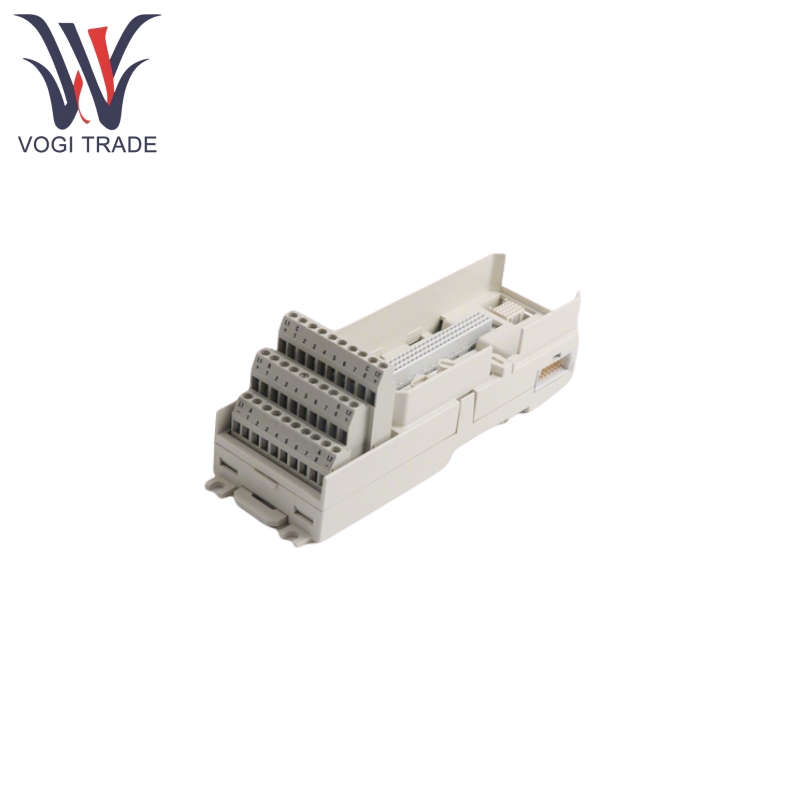

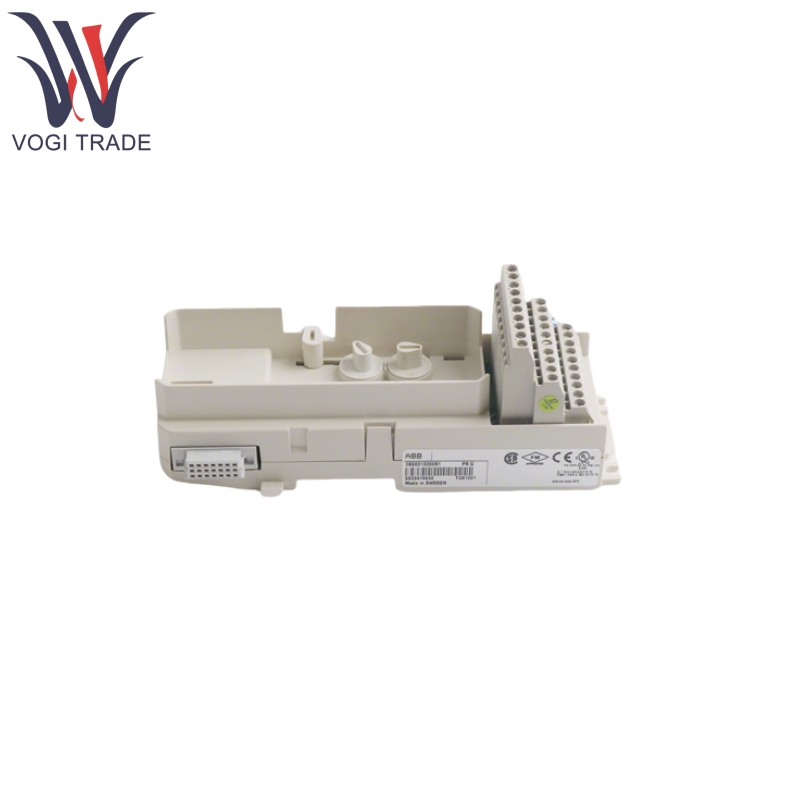

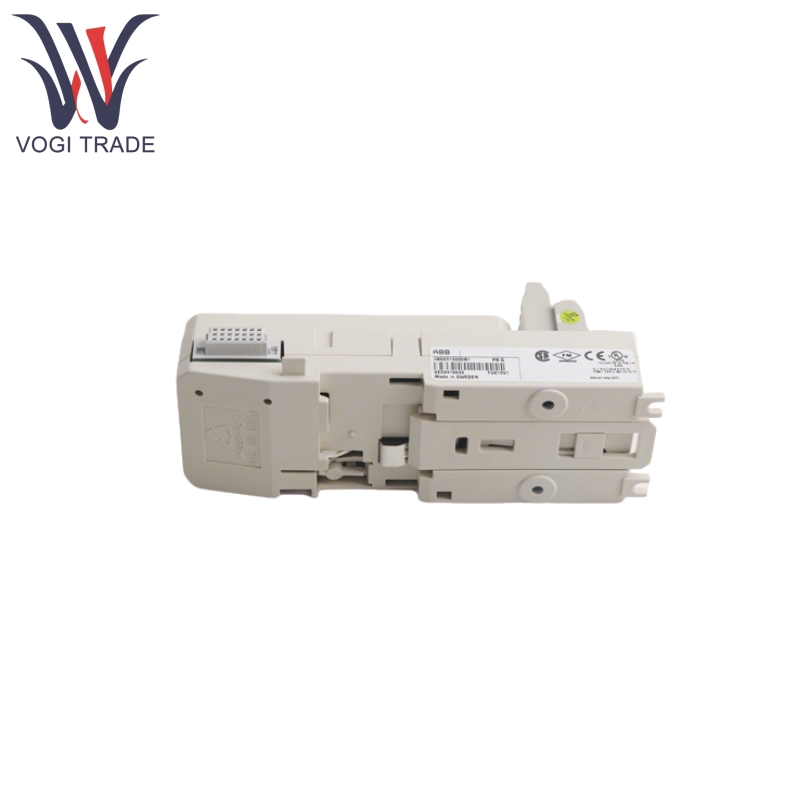

Brand: ABB Description: Module Termination Unit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen ABB TU810V1 is used in industrial automation scenarios to connect field devices to control systems. As a core component of the S800 I/O system, it enables efficient control of devices such as sensors and actuators through signal distribution, address generation, and electrical isolation functions.
|
Manufacture |
ABB |
|
Model Number |
TU810V1 |
|
Ordering Number |
3BSE013230R1 |
|
Catalog |
S800 I/O |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9032900090 |
|
Dimension |
18*8*8cm |
|
Weight |
0.2kg |
Product Features
ABB TU810V1 supports flexible expansion, allowing multiple MTUs to be cascaded to increase the number of I/O points, with a maximum of 32 MTUs supported on a single bus.
ABB TU810V1 features a mechanical key control design (2 mechanical keys, 36 combinations) to prevent accidental insertion of different types of I/O modules, ensuring system stability.
ABB TU810V1 has 16 channels (8 digital input/output, 4 analog input/output) and supports mixed-signal configurations.
ABB TU810V1 supports digital signals (dry contacts/24V DC), analog signals (0-10V/4-20mA), and pulse signals.
Product Using Principle
ABB TU810V1 can distribute ModuleBus signals to I/O modules and downstream MTUs, ensuring address continuity.
ABB TU810V1 can dynamically allocate addresses to I/O modules using a signal shifting algorithm to avoid conflicts.
ABB TU810V1 can adjust 36 combinations using dual mechanical keys to match different types of I/O modules and prevent physical misinsertion.
ABB TU810V1 can isolate field devices from control systems to reduce the risk of electromagnetic interference (EMI).
Product Application
Production Line Control:
ABB TU810V1 can connect to PLCs, robot controllers, and sensors to enable real-time data collection and control of equipment status.
Packaging Machinery:
ABB TU810V1 can adjust motor speed via analog signals and control solenoid valve operations via digital signals.
Chemical and Metallurgy:
ABB TU810V1 can collect temperature, pressure, and flow data, and control valve openings and reactor parameters.
Energy Management:
ABB TU810V1 can monitor the operational status of transformers and variable frequency drives in power plants and optimize power distribution.
Water Treatment:
ABB TU810V1 can monitor water quality parameters (pH, turbidity) and control pumps and aeration equipment.
Rail Transportation:
ABB TU810V1 can connect to track circuits and signal machines to achieve train scheduling and safety protection.
