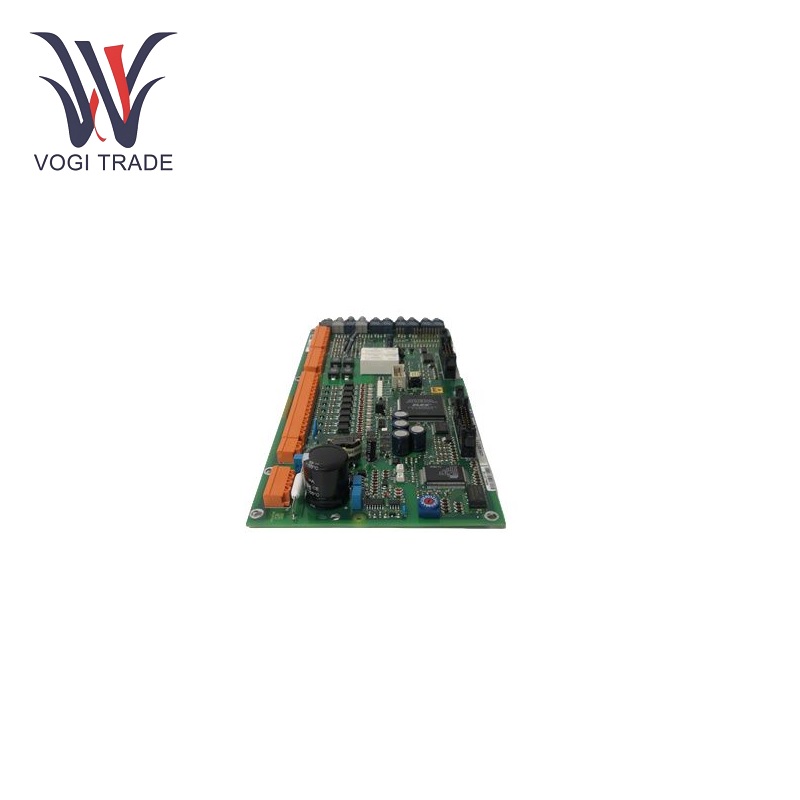

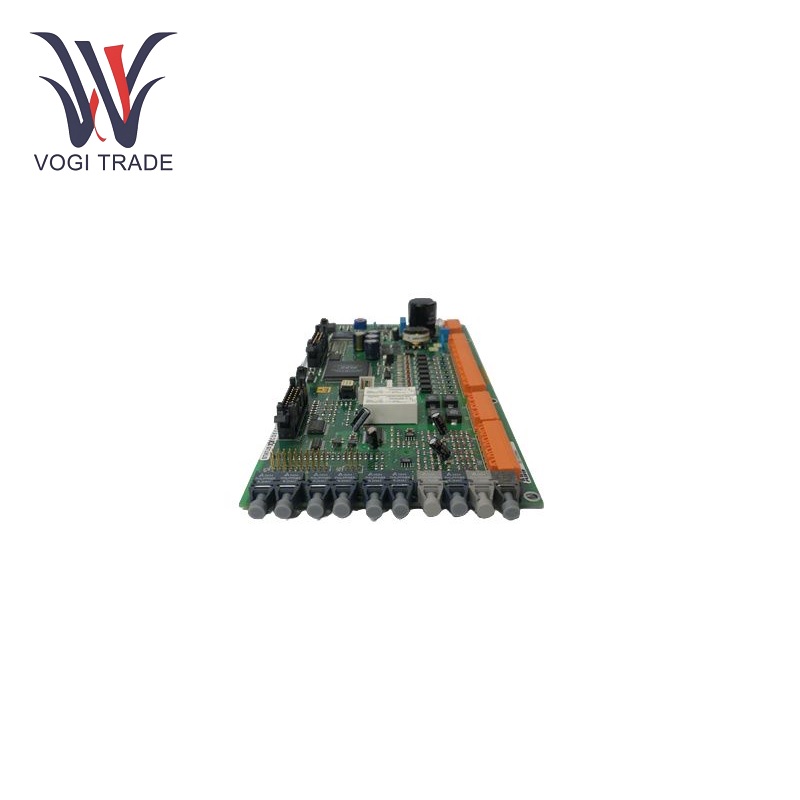

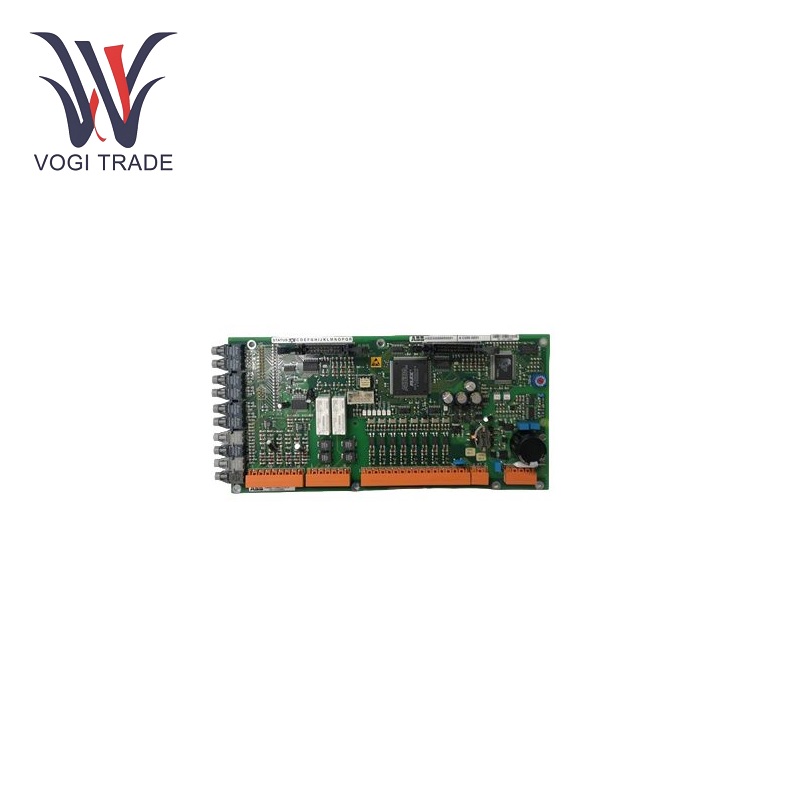

ABB UAC389AE01

Technical parameters

Input channels: general multi-channel input, 4~8 channels.

Input: 0-10V, -10V to +10V

Input range: 0-20mA, 4-20mA

Resolution: up to 12 bits or more

Accuracy: up to ±0.1% or more

Output type: transistor output or relay output

Output voltage: DC 24V,

Output current: 0.5A 1A

Interface: RS485, CAN bus

Communication baud rate: maximum 12M

Operating temperature range: -40℃～ +85℃

Environmental humidity: 5% to 95% RH

Strong anti-interference ability: strong electromagnetic compatibility and anti-interference ability, can work stably in industrial environments with strong electromagnetic interference

Functional features

High conversion accuracy: ABB UAC389AE01 has high-precision data to analog, analog to data conversion technology, ensure that the input analog signal can be converted into a very high-quality digital signal, and the output digital signal can also have a high conversion rate.

Flexible design: The module design is flexible, and the input and output channels can be easily customized according to actual needs through software configuration and programming settings.

Wide compatibility: by being compatible with various industrial communication protocols and standards, ABB UAC389AE01 provides communication and data exchange with other devices in the system to achieve interoperability of different devices.

Strong anti-interference ability: ABB UAC389AE01 has good electromagnetic compatibility and anti-interference ability, and can work stably in harsh industrial environments and strong electromagnetic interference.

Application scope

Industrial automation: ABB UAC389AE01 Widely used in various industrial equipment, such as machine tools, robots, packaging machines, conveying equipment and other control systems, to collect and process a large number of analog signals such as temperature, pressure, flow, displacement, etc., and output digital signals to control the operation of actuators such as motors and valves.

Building automation: Applied to building automation systems, monitor and control analog signals of parameters such as temperature, humidity, and illumination in buildings, and control the operation of equipment such as air conditioners, fans, and lighting equipment through digital signals to achieve intelligent management of buildings.

Power system: ABB UAC389AE01 Applied to power generation, transmission, and distribution equipment in power systems, to measure and control analog signals of voltage, current, power and other parameters, and output digital signals to control the operation of switches, circuit breakers and other equipment to ensure safe and stable operation of the power system.

Process industry process automation: ABB UAC389AE01 can monitor and control analog signals of various process parameters in process industries such as chemical, petroleum, and metallurgy, and output digital signals to control the operation of various equipment such as pumps and valves to ensure the normal operation of the production process.
