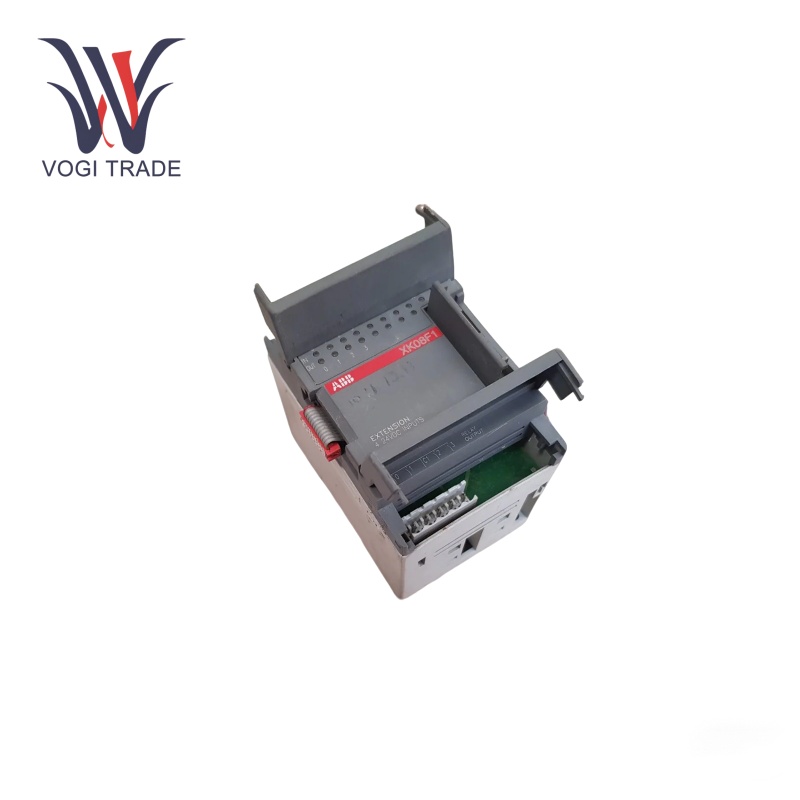

Brand: ABB Description: Digital I/O Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: ShenZhen ABB XK08F1 is a digital input/output module, which plays a crucial role in enhancing system functionality and productivity, contributing to the intelligent and efficient operation of production processes.
|
Manufacture |
ABB |
|
Model Number |
XK08F1 |
|
Ordering Number |
1SBP260604R1001 |
|
Catalog |
Advant OCS |
|
Country Of Origin |
Sweden |
|
HS CODE |
85389091 |
|
Dimension |
9.3cm*8.5cm*6.5cm |
|
Packing Dimension |
12cm*11cm*9cm |
|
Weight |
0.2kg |
1. Technical Parameter
Rated Voltage: 24VDC.
Operating Temperature: -20°C to +70°C.
Storage Temperature: -40°C to +85°C.
Logic “1” Voltage: ≥ 13 V DC.
Logic “0” Voltage: ≤ 3 V DC.
Output Voltage Drop: ≤ 2 V at rated current.
2. Functional Features
Isolation Protection: ABB XK08F1 has 4 isolated inputs, which can prevent the external signal interference and keep the input signal's accurate.
Hot Swap: ABB XK08F1 can be replaced without affecting the I/O station as a whole, and is easily maintainable in a fully automatic I/O station.
Status Indication: There are at least three LEDs (for fault, operation and warning) mounted on the front end for quick display of the operation status of the module.
Mechanical and Electrical Keying: ABB XK08F1 supports mechanical and electrical keying, mutual blind matching of the module and MTU, electronic identification ID of each module, preventing false insertion and false operation and ensuring the safety and reliability of the system.
High Load Capacity Output: The 4 relay outputs can directly drive high-power load devices, suitable for controlling various types of industrial control equipment (motors, solenoid valves, etc.).
3. Application Areas
Manufacturing Industry: ABB XK08F1 is used in production line controls, control of motor start and stop, control of valve opening and closing, sensor signal detection, etc., to achieve automation control of production process.
Logistics and Warehousing: In logistics sorting systems and warehouse access control systems, ABB XK08F1 can control conveyor belts, automatic doors and other equipment, and receive signals from sensors such as photoelectric switches and proximity switches to improve the efficiency of logistics operations.
Power Industry: It is used in the power distribution system for monitoring the working condition of circuit breakers, contactors and other equipment, and controlling the switch connection of power supply circuit to ensure stable operation of power system.
Building Automation: ABB XK08F1 can be used in intelligent building systems for controlling lighting, air conditioning, elevators and other equipment, realizing intelligent management of the building.
