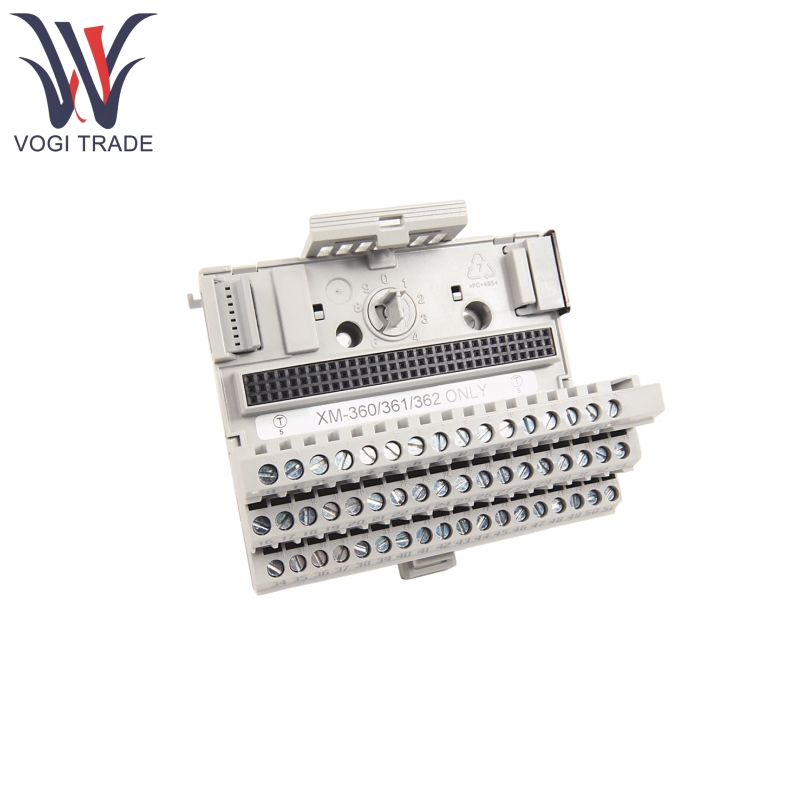

Brand: Allen Bradley Description: Terminal Base Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 1440-TB-E is used for sensor, signal conditioner or control to control connection, benefits the monitoring and data acquisition of the equipment status in the complex industrial field, cut down the cost: reduce the wiring and mechanical contact.
|
Manufacture |
Allen Bradley |
|
Model Number |
1440-TB-E |
|
Ordering Number |
1440-TB-E |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
10*8*6cm |
|
Weight |
0.6kg |
Product Features
Allen Bradley 1440-TB-E accepts 4-20mA analog signals and digital input/output: including vibration sensors, temperature transmitters, or pressure sensors.
Allen Bradley 1440-TB-E features built-in signal conditioning circuits, including filtering, amplification, and linearization processing, to ensure signal stability.
Allen Bradley 1440-TB-E operates on a 24V DC input voltage (±10%) and supports SELV/PELV safety extra-low voltage power supply, compliant with IEC 61140 standards.
Allen Bradley 1440-TB-E can deliver up to 1.5A per channel and can be set in redundant power supply setups for increased security.
Allen Bradley 1440-TB-E supports the DeviceNet communication protocol, enabling seamless integration with ControlLogix controllers and Studio 5000 software.
Allen Bradley 1440-TB-E has an isolated communication port to avoid signal noise and differences in ground potential.
Product Working Principle
Allen Bradley 1440-TB-E can be connected to vibration sensors, temperature transmitters, and other devices via terminal blocks, supporting IEPE (integrated circuit piezoelectric) and non-contact sensors.
It can filter, amplify, and linearize input signals to eliminate noise and match the control system's input range.
It provides a stable 24V DC power supply for sensors and the module itself, supporting redundant power supply to avoid single points of failure.
It can transmit processed signals via the DeviceNet network to the ControlLogix controller or upper-level software for real-time monitoring and analysis.
Product Parameter
The following detail is for Allen Bradley 1440-TB-E Terminal Base.
|
Parameter |
Specification |
|
Input Voltage |
24V DC ±10% (SELV/PELV compatible) |
|
Output Current |
1.5A per channel, total power ≤30W |
|
Signal Type |
Analog (4-20mA), Digital (dry contact) |
|
Communication Protocol |
DeviceNet (baud rate adaptive) |
|
Number of Channels |
8 channels (expandable) |
|
Insulation Resistance |
≥100MΩ (at 500V DC) |
|
Withstand Voltage Test |
1500V AC (for 1 minute) |
