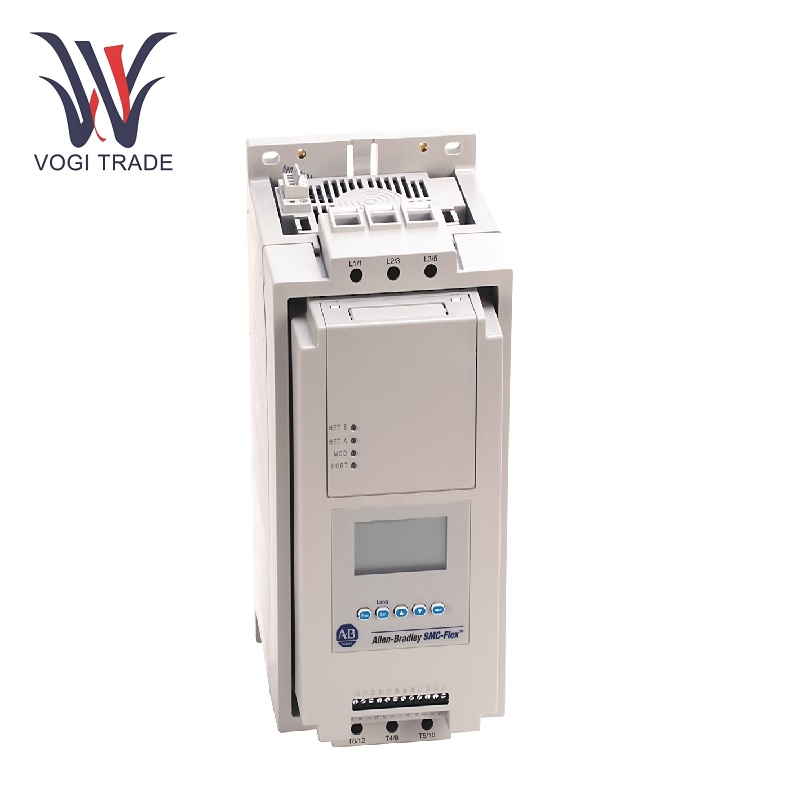

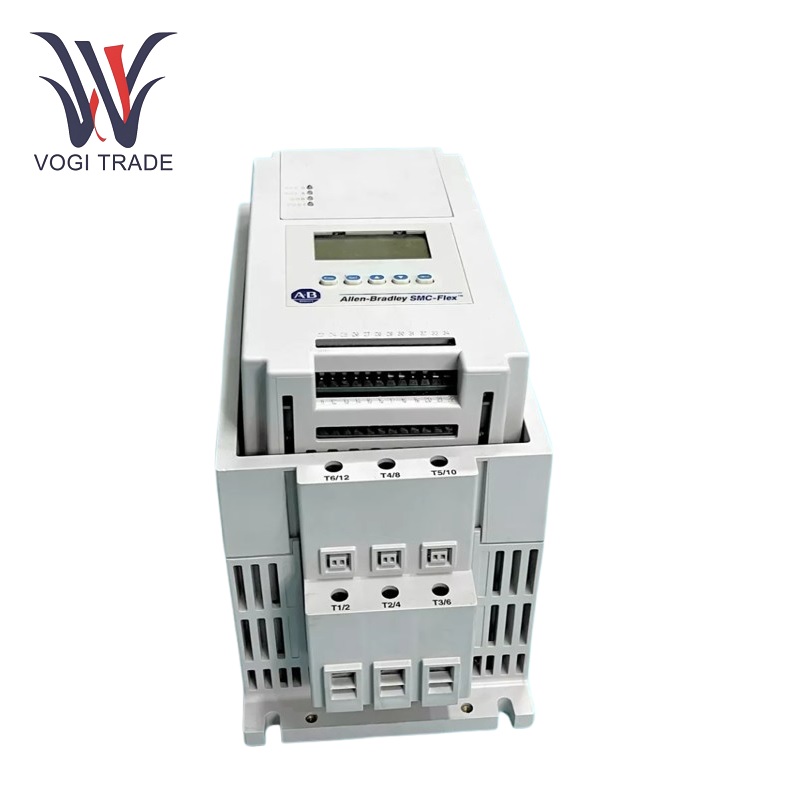

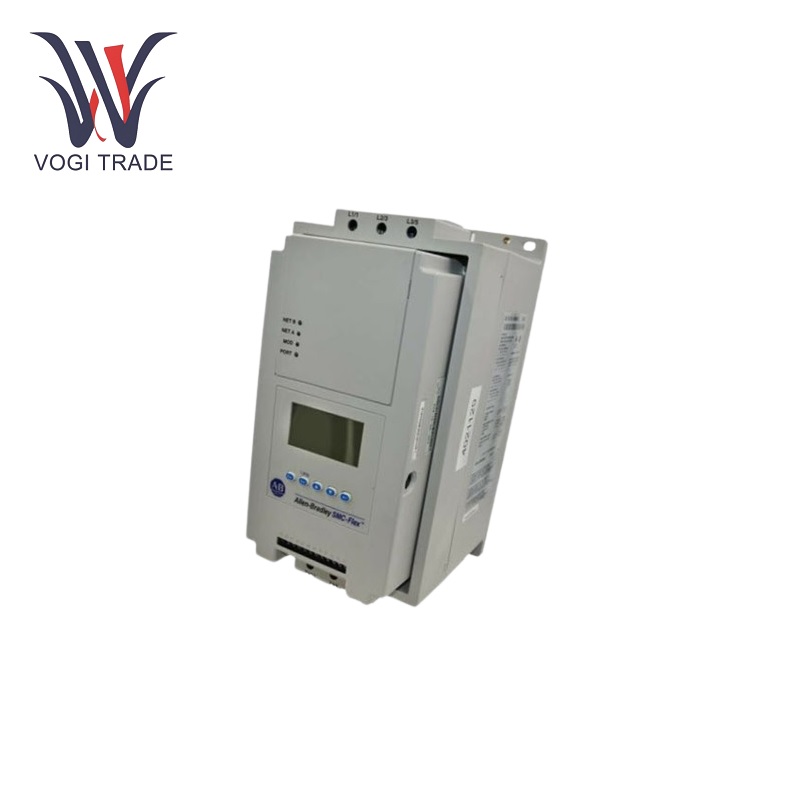

Allen Bradley 150F85NBDB

Technical Specification

Input Voltage: 200 - 480 V AC, 3-phase, 50/60 Hz;

Control Voltage: 100 - 240 V AC; Current Rating: 85 A;

Trip Classes: 10, 15, 20 and 30;

Trip Current Rating: 117% of motor FLC;

Transformer Control Module: 75 VA @ 100...240 V AC (-15%, +10%);

Heatsink Fan Rating: 20 VA @ 110/120 V AC or 220/240 V AC;

Operating Temperature: -5 to 50 °C (23 to 122 °F) operating, -20 to 75 °C storage.

Function Features

Motor Starting Function: Allen Bradley 150F85NBDB provides slow ramp-up of voltage supply to the motor when starting, thus reducing the inrush current and thus reducing mechanical stress on the motor and on other connected equipment. This ensures increased life capability and reliable operation of the system.

Integrated Motor Overload Protection: The Allen Bradley 150F85NBDB continuously monitors the motor current and can detect overload conditions. The breaker trips if the overload is detected and protects the motor from damage that could otherwise lead to repairs that are quite costly or loss of production.

Pump Control Option: Allen Bradley 150F85NBDB tends to deal with certain applications related to pumps, hence, optimized control and protection of pump motors including the provision of smooth starts/stops, eliminating water hammer effects by controlling the discharge valve opening.

Indication to the operator: Motor status- stopped, starting, stopping, at speed, alarm, and fault, allows the operator to quickly and with a glance assess the equipment operational condition.

Capability for Communication: That was designed for integration into industrial control systems to communicate via standard communication protocols with other devices. Allen Bradley 150F85NBDB also allows remote monitoring and control of the motor, in conjunction with the integration of any other components of automation to permit controlled optimization of a particular system.

Flexible Configuration: It holds many programmable settings available for modified trip classes, current-limit settings, and control. For improved flexibility and adaptability, users can calibrate the controller to suit particular applications and motors.;

Applications

Heating, ventilation, and air conditioning systems: Allen Bradley 150F85NBDB can be used in HVAC systems for fans, pump and compressor motor control. Precision control and protection are essential for HVAC systems since they ensure proper working of HVAC equipment and medium comfort while also saving energy.

Water and Wastewater Treatment: in water treatment plants, it controls pumps for water supply, filtration, and wastewater disposal. In such an application, pump control and overload protection is quite useful because it prevents pump breakdowns while ensuring water supply.

The mining and minerals industry: In mining equipment like crushers, conveyors, and slurry pumps, Allen Bradley 150F85NBDB controls motors. It has a large current rating and robust protection, making it well suited to handle the heavy loads and harsh operating conditions in the mining industry.

Food and beverage: Allen Bradley 150F85NBDB controls motors in food processing machines; they engage whatever they support: mixers, conveyers, and packers. Good performance and market compliance standards ensure sanitary functioning and efficient food and beverage processing.

Pharmaceutical manufacturing:  it is Allen Bradley 150F85NBDB that controls the motors in different machinery: reactors, centrifuges, and conveyor systems. Precision control and protection are critical to assuring product quality and integrity throughout the pharmaceutical process.
