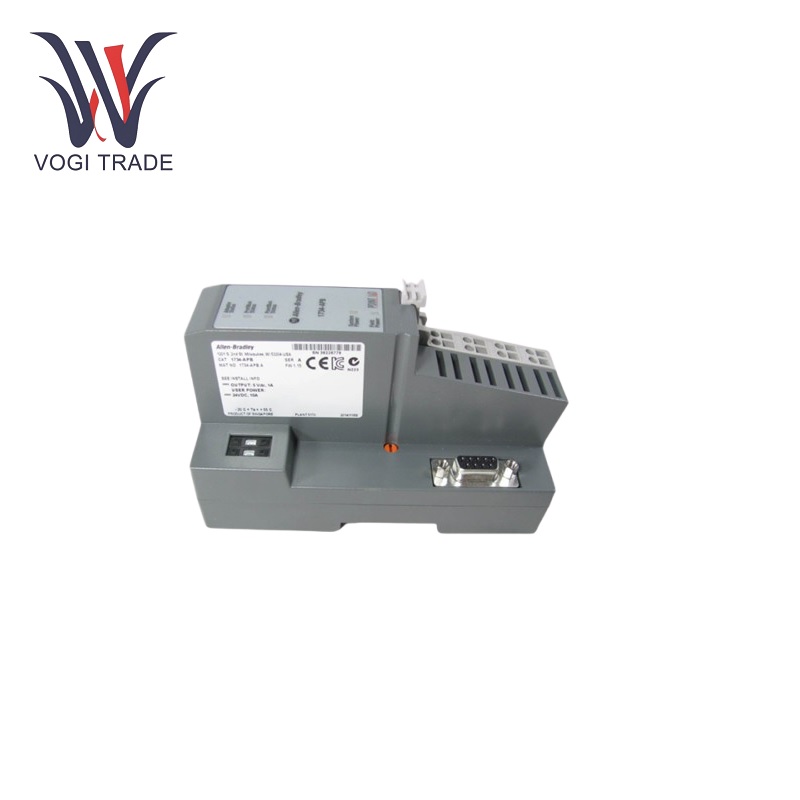

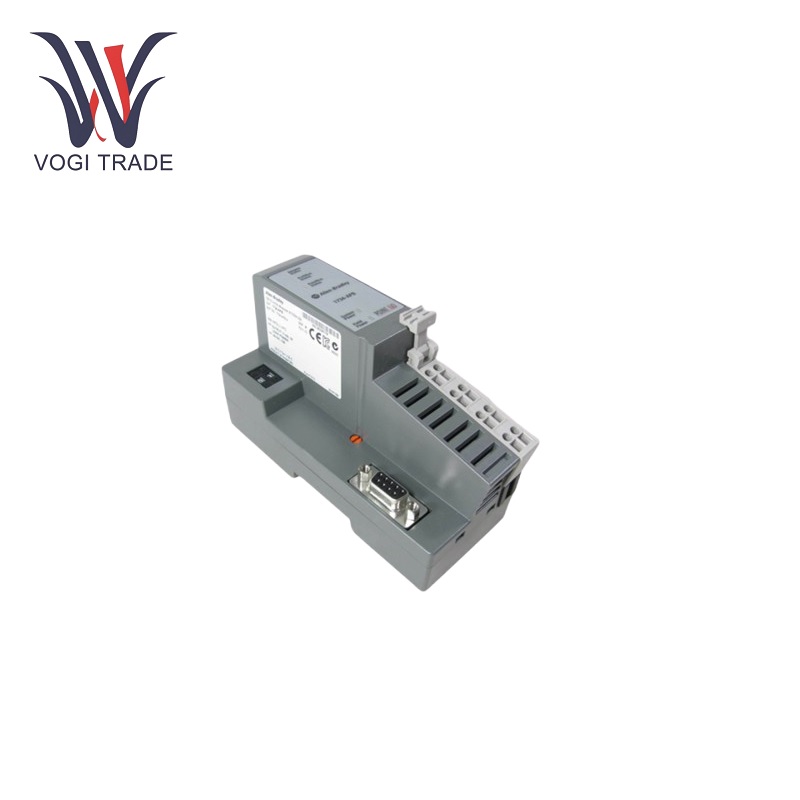

Allen Bradley 1734-APB

Technical Parameter

Input Voltage: 24 volts DC, input range: 10 to 28.8 volts DC.

Field side current: 400 milliamperes.

Maximum inrush current: 6A for ten milliseconds.

Point bus current: 1,000 milliamperes.

Power consumption: 8 watts.

Power dissipation: 2.8 watts (on 28.8 volts).

Input overvoltage protection: It features reverse polarity protection.

Operating Temperature: -20 to +55 degrees Celsius.

Function Features

Interface function: Allen Bradley 1734-APB simultaneously resides on the point I/O backplane (point bus) and the Profibus network, enabling seamless interfaces between the point I/O modules and the Profibus network system.

Master/slave capabilities: On the point bus, Allen Bradley 1734-APB functions as a master unit and communicates with a maximum of 63 point I/O modules while acting as the slave unit on Profibus. I/O data exchange occurs between Allen Bradley 1734-APB and Profibus master.

Power conversion: It converts applied field power of 12-24 volts DC on the point bus (5 volts) logic power to point I/O modules.

Diagnostics and configurability: Full diagnostics and configurable settings make it a convenient unit for applying and troubleshooting point I/O systems.

Hot swapping: The removal and insertion under power (RIUP) feature of Allen Bradley 1734-APB  allows you to replace modules while the system is powered on, thus minimizing downtime.

Modular Design: Modular construction permits independent selection of I/O, termination style, and network interface, thus allowing for flexibility in configuring the system.

Protection Options: Allen Bradley 1734-APB  has input overvoltage protection and reverse current protection, thereby protecting other components and equipment connected to the same module from damage.

Conformal coating option: It is also available with a conformal coating that adds extra protection against environmental stressors, such as moisture, dust, and chemicals.

Applications

Process control: In such industries as chemicals, pharmaceuticals, and food processing, Allen Bradley 1734-APB helps to manage and control vital processes by interfacing with sensors, actuators, and other process control equipment. This goes a long way toward ensuring product quality and process efficiency.

Material handling: In material handling systems, such as automated warehouses or distribution centers, it controls the operations of motors, drives, and sensors for moving and storing goods.

Building automation: In building management systems, Allen Bradley 1734-APB is used to control lighting, HVAC (heating, ventilating, and air conditioning) systems, and other building services, all of which improve energy efficiency and occupant comfort.

Automotive Manufacturing: In automotive assembly lines, it operates assembly machinery, welding robots, and paint systems, which ensures high-quality and effective automobile manufacturing.

Power Generation and Distribution: Allen Bradley 1734-APB can be used in power generation and distribution for monitoring and controlling equipment in power generation plants, switchgears, and protection relays in electrical substations; their reliable operation is essential in light of power grids needing reliable operations.
