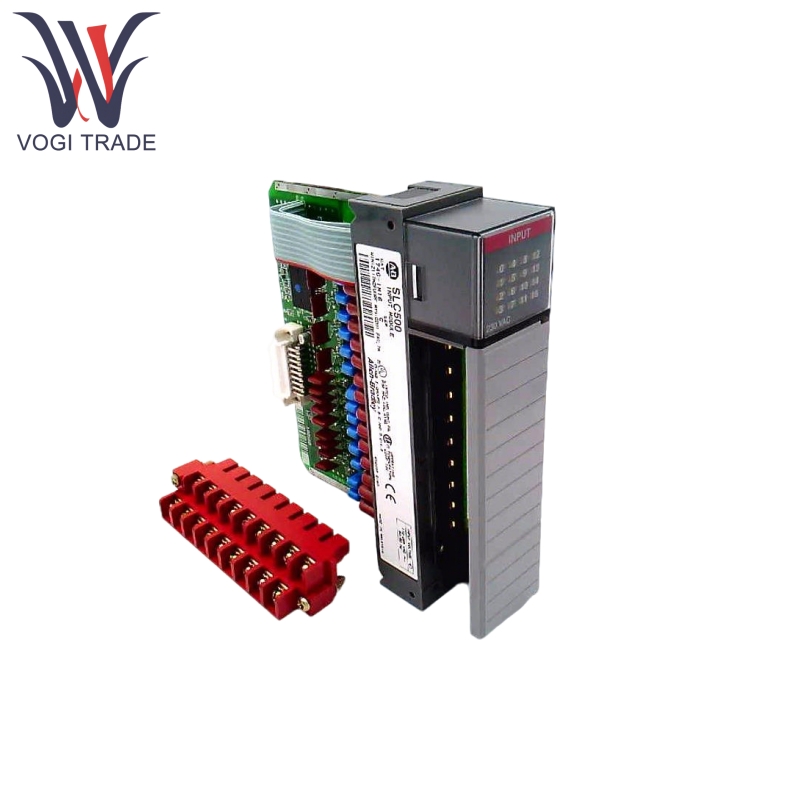

Brand: Allen Bradley Description: AC Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 1746-IM16 is 16 Point 240V AC Input Module which is particularly used for automation control system, which is able to take large AC voltage from external devices and convert it to be recognizable by PLCs. With universal base installation, modular design, RTB installation can adapt high -end industrial needs with high reliability and anti-interference ability.
|
Manufacture |
Allen Bradley |
|
Model Number |
1746-IM16 |
|
Ordering Number |
1746-IM16 |
|
Catalog |
SLC 500 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8471800000 |
|
Dimension |
10*8*6cm |
|
Weight |
0.8kg |
Product Features
Allen Bradley 1746-IM16 supports a wide AC voltage input range of 170-265V, adapting to power fluctuations in various industrial environments.
Allen Bradley 1746-IM16 input terminals are isolated from the control logic by 1500V AC isolation, effectively resisting electromagnetic interference.
The ON state has a delay of 35ms, and the OFF state has a delay of 45ms, ensuring stable signal transmission.
Allen Bradley 1746-IM16 complies with the NEMA ICS 2-230 noise immunity rating, making it suitable for harsh industrial environments.
Allen Bradley 1746-IM16 supports RTB installation, facilitating quick wiring and maintenance.
Allen Bradley 1746-IM16 can display real-time input status and fault information via LED indicator lights.
Product Working Principle
Allen Bradley 1746-IM16 can be installed locally or in an expansion rack via the SLC 500 I/O chassis and communicates with the SLC 500 controller backplane bus.
Allen Bradley 1746-IM16 can connect to external devices using RTB terminal blocks and supports 14 AWG wire connections.
AC signals from external devices are converted into digital signals via optocouplers, then filtered and isolated before being transmitted to the PLC controller.
The controller reads the input status using RSLogix 500 programming software to perform logic control or data acquisition tasks.
Product Parameter
The following detail is for Allen Bradley 1746-IM16 16 Point 240V AC Input Module.
|
Parameter Item |
Specific Indicators |
|
Input Type |
Digital Alternating Current (AC) |
|
Number of Channels |
16 channels (single group common point) |
|
Input Voltage Range |
170-265V AC, 47-63Hz |
|
Nominal Input Current |
12mA @ 240V AC |
|
Inrush Current |
1.6A (duration 0.5ms) |
|
Isolation Voltage |
1500V AC |
|
Operating Temperature Range |
0-60°C (non-condensing humidity 5-95%) |
|
Storage Temperature Range |
-40-85°C |
|
Shock / Vibration Resistance |
30G shock, 2.5G vibration (57-200Hz) |
|
Backplane Current (5V DC) |
0.08A |
