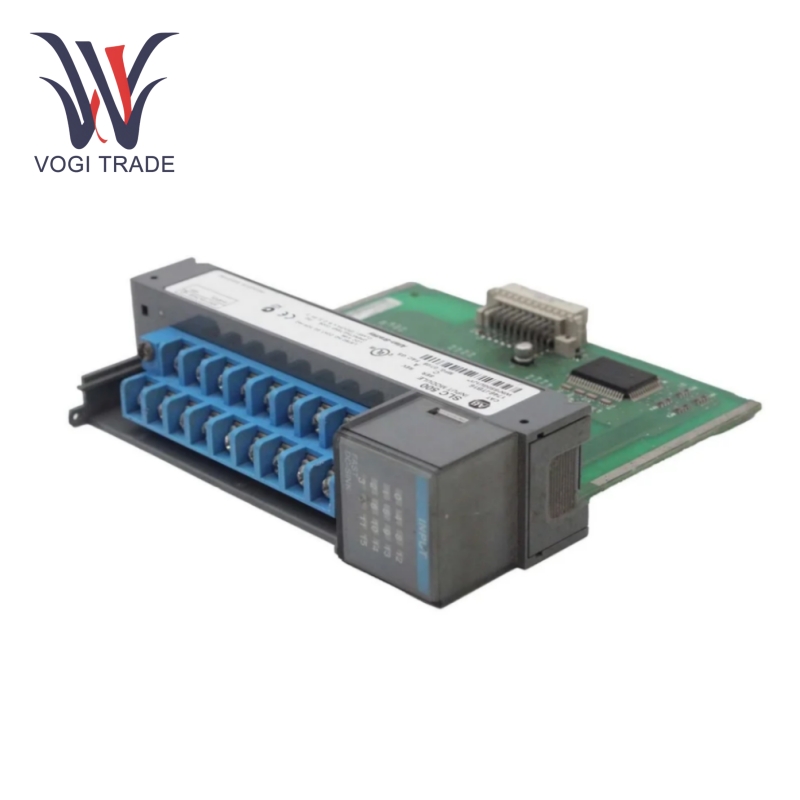

Allen Bradley 1746-ITB16

Technical Parameter

Input signal: 24 volts, DC sinking input;

Input voltage range: 10 to 30 VDC;

Input current, nominal: 8 mA at 24 volts DC.

Backplane current consumption: 0.050A at 5V DC, 0.0A at 24V DC.

Max signal delay-On: .3 ms.

Max signal delay-Off: .5 ms.

Max off-state voltage: 5 volts DC.

Max off-state current: 1.5 mA.

Operating temperature: 0 to 60ºC;

Comm circuits isolation: 500V DC;

Backplane isolation: 1500V AC.

Function Features

Fast response time：The short signal delay made the Allen Bradley 1746-ITB16 a very suitable control module for time-critical applications where fast response and timely data acquisition are essential. Its rapid detection of input signal changes-and subsequent responses-enable smooth operation to control and supervise industrial processes efficiently.

Space/Cost savings：Allen Bradley 1746-ITB16 is a combination of several analog and digital I/O sharing-based hardware platforms. It thereby saves a lot of space in the cabinet and overall hardware costs as well, making it quite economical for industrial automation systems.

High compatibility：Allen Bradley 1746-ITB16 is entirely compatible with each of the other components and modules in the same family. It can easily be incorporated into any control system based on the SLC 500 series, allowing for seamless system expansion and upgrades without major modifications.

Reliability and durability： It is made of high-quality components and designed for strong housing that offers great reliability and durability. The module can ultimately withstand industrial conditions such as temperature fluctuations, humidity, and electrical interference and guarantee long-term stability.

Applications

Manufacturing Industry: Allen Bradley 1746-ITB16 is vastly employed in factory settings for monitoring and controlling processes in a variety of production applications. It is connected to sensors mounted on conveyor belts, robotic arms, and other machinery in factories to monitor their operational status. Some of the examples include: detecting the existence of a product on the conveyor belt, monitoring arm position and movement, and signaling the control system to adapt the production process accordingly.

Automotive Industry: In the automotive industry, it is extremely essential for controlling and monitoring assembly line operations. Allen Bradley 1746-ITB16 can interface to sensors mounted on car body welding machines, painting robots, and engine assembly stations. These processes are equipped with accurate product-status detection helping in increased production viability, enhanced product quality, and enhanced productivity like current and voltage welding. The location of painting nozzles as well as the torque of the tools used in engine assembly are monitored.

Food and Beverage Industry: In the food and beverage sector, it helps monitor and control equipment such as filling machines, packaging lines, and conveyor systems. The Allen Bradley 1746-ITB16 is designed to receive signals coming from level sensors, flowmeters, and proximity sensors to ensure accuracy in filling packages and smoothness in material handling. It is also useful in ensuring quality in the products manufactured, achieving targets, and upholding strict standards on hygiene and safety.

Pharmaceutical Industry: Control and monitoring are one of the key parameters of utmost importance in pharmaceutical manufacturing. Allen Bradley 1746-ITB16 can tie into the sensors on tablet presses, capsule filling machines, and sterilization equipment. It allows for the process parameters on temperature, pressure, and flow of materials to be monitored in real-time for the quality and genetic integrity of pharmaceutical products. Moreover, it helps in meeting the stringent requirements of pharmaceutical regulation through its reliable operations.

Material Handling and Logistics: The other applications of it are found in material handling and logistics in warehouses and distribution centers, such as controlling and monitoring materials handling equipment like forklifts, conveyors, and automated storage and retrieval systems (AS/RS). Users can feed signals from sensors mounted on these devices into Allen Bradley 1746-ITB16, which can track goods movement, manage inventory levels, and streamline material flow.
