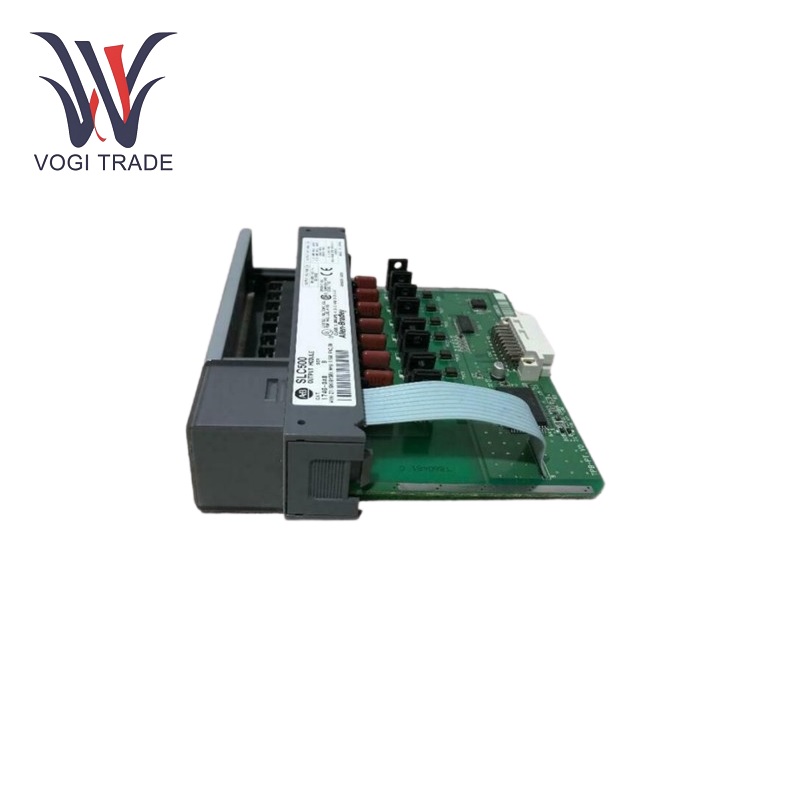

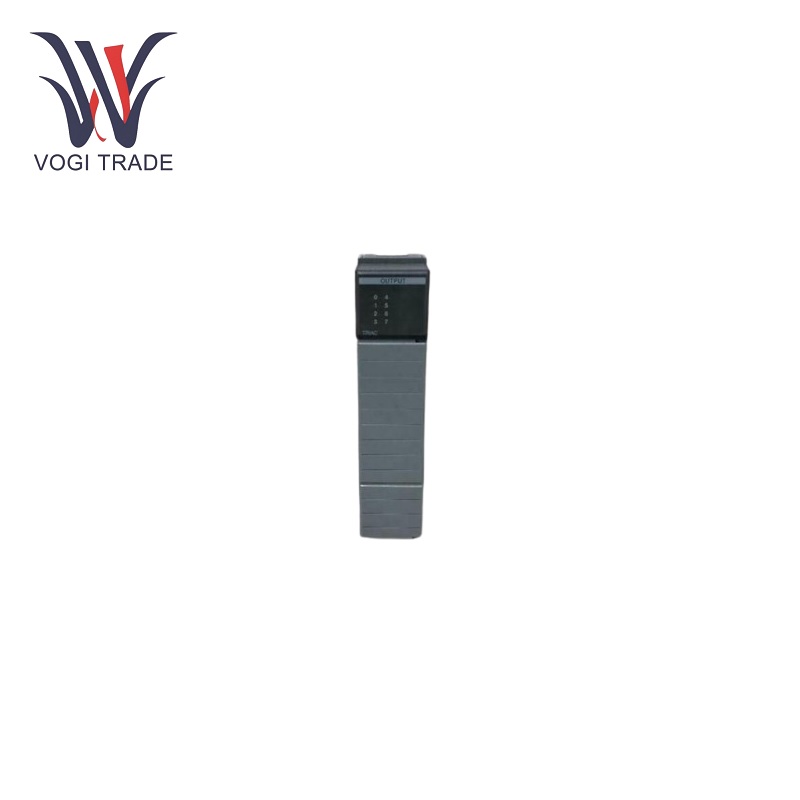

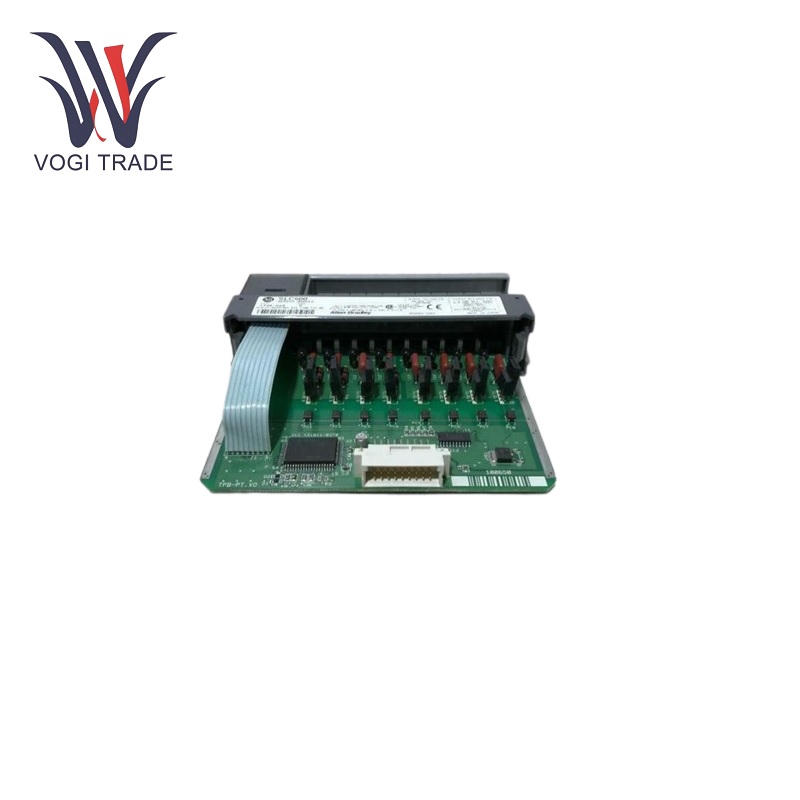

Brand: Allen Bradley Description: AC Output Module Condition: New Warranty: 1 year Inventory Qty: 5 Payment term: T/T Shipping Port: ShenZhen Allen Bradley 1746-OA8 drives 8 output channels through high-fidelity analog output to actuators like control valves, variable frequency drives, and others to precisely control flow, pressure, velocity, and others in industrial processes.
|
Manufacture |
Allen Bradley |
|
Model Number |
1746-OA8 |
|
Ordering Number |
1746-OA8 |
|
Catalog |
- |
|
Country Of Origin |
United States |
|
HS CODE |
8537.10.10.00 |
|
Dimension |
14*3.8*14.5cm |
|
Packing Dimension |
16*6*16cm |
|
Weight |
0.3kg |
Technical Parameter
Output Voltage Range: 85 - 264 VAC.
Nominal Output Voltages: 240V AC.
Frequency: 47 - 63 Hz.
Backplane Current: 185 mA.
Maximum surge current per point: 10A for 25 milliseconds.
On-State Voltage Drop: 1.5 V.
On Signal Delay, Max: 1 ms.
Off Signal Delay, Max: 11 ms.
Minimum Load Current: 10 mA.
Maximum Off-State Leakage Output Current: 2 mA.
Watts Recall Per Point: 1.0 watt.
Minimum Heat Dissipation: 0.925 watts.
Maximum Heat Dissipation: 9.0 watts. Multiple Output Channels;
Function Features
Multiple Output Channels: With eight output channels, Allen Bradley 1746-OA8 can simultaneously control a variety of electrical loads. This provides a flexibility for control in different applications.
LED Indications: The front of Allen Bradley 1746-OA8 has LED indicators that display the status of each I/O point.
Programmable Configuration: Configuration has to be done only with RSLogix 500 programming software, which allows the configuration of individual channel operations and parameters per individual application requirements.
Reliability and Durability: Constructed with high-quality components and strong construction enables Allen Bradley 1746-OA8 to withstand extreme industrial environments over a long life span. UL and CSA-certified, ensuring safety and compliance.
High current capabilities: Each channel and entire module have reasonable high current capacities, enabling it to drive through a wide variety of industrial loads.
Applications
Automotive Industry: Allen Bradley 1746-OA8 will be employed to control robotic arms, welding apparatus, conveyor belts, and other equipment in automotive manufacturing plants. This greatly enhances production efficiency and quality of the products.
Food and beverage Industry: Allen Bradley 1746-OA8 could serve to operate processing equipment like mixers, fillers, packaging machines, and conveyor systems that ensure hygienic and efficient working in production.
Building automation: In building automation systems, it can control lighting, HVAC (heating, ventilation, and air conditioning), elevators, and other equipment for improved energy efficiency and user comfort.
Water and Wastewater Treatment: Allen Bradley 1746-OA8 assists in controlling pumps, valves, and other equipment of water treatment plants and wastewater treatment facilities. Thus, it ensures proper functioning of the treatment process, ensuring safety and security of water supply.
