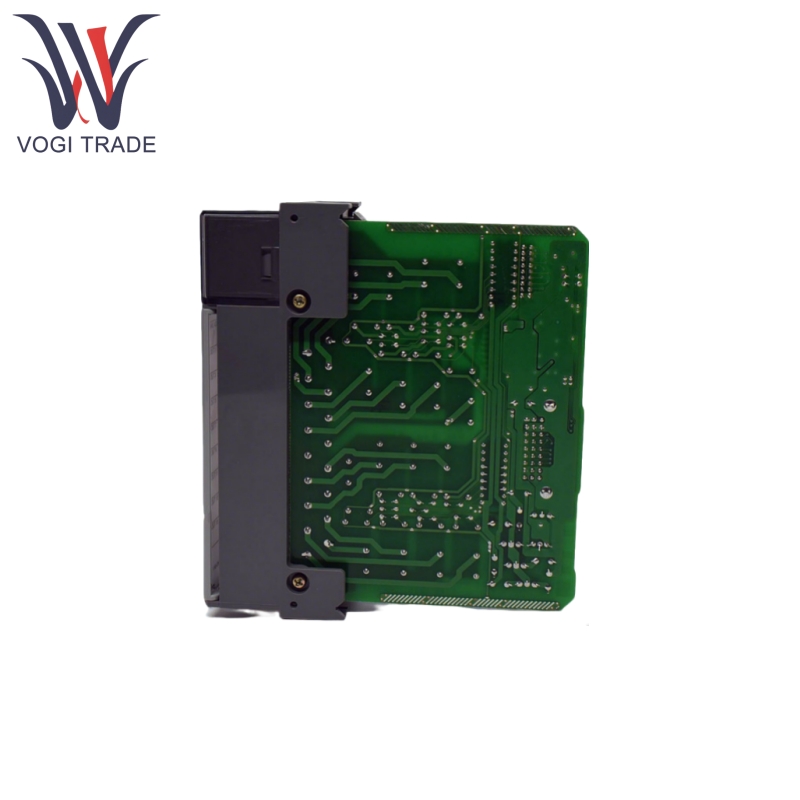

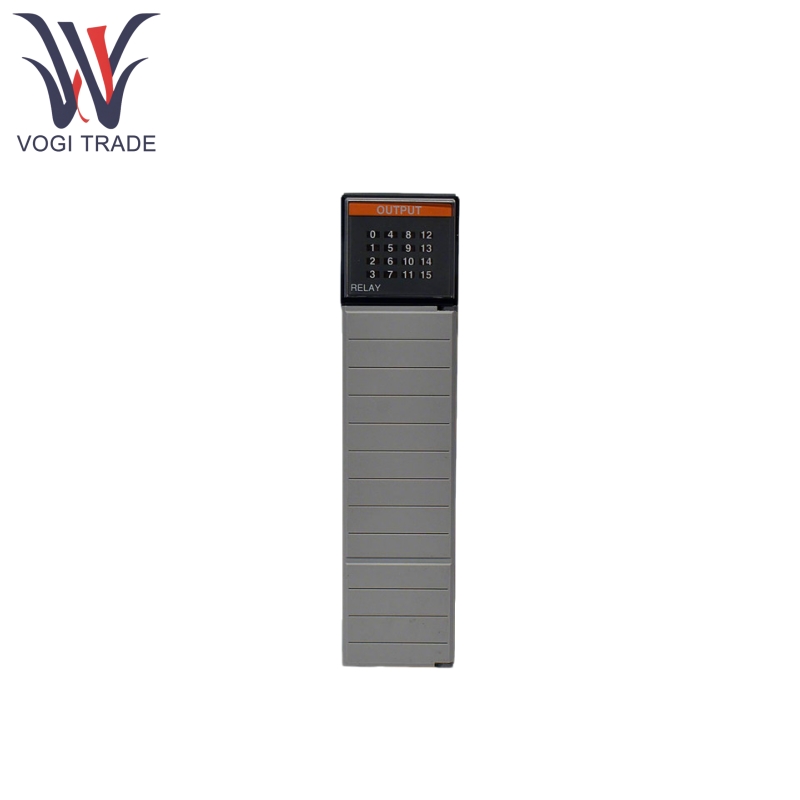

Brand: Allen Bradley Description: Relay Contact Output Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 1746-OW16 is mainly used in industrial automation systems to switch AC/DC loads, controlling external devices through the opening and closing of mechanical relay contacts. It is compatible with the SLC 500 chassis system and supports use in hazardous environments.
|
Manufacture |
Allen Bradley |
|
Model Number |
1746-OW16 |
|
Ordering Number |
1746-OW16 |
|
Catalog |
SLC 500 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
12*12*10cm |
|
Weight |
0.2kg |
Product Features
Allen Bradley 1746-OW16 uses mechanical relay contacts, supports AC/DC mixed load switching, and has high electrical isolation capability (1500V opto-isolation).
Allen Bradley 1746-OW16 has 16 output points, with every 8 points sharing a common terminal (Points per common = 8), making it suitable for controlling multiple distributed loads.
Allen Bradley 1746-OW16 uses color-coded removable terminal blocks for easy wiring and maintenance, requiring the removal of upper and lower fixing screws for disassembly.
Allen Bradley 1746-OW16 is suitable for industrial environments where explosive gases may be present. The epoxy sealing material may be affected by certain chemicals, so regular inspections are required to check for performance degradation, and the module should be replaced if necessary.
Product Working Principle
Allen Bradley 1746-OW16 controls external loads through the mechanical switching of relay contacts. When the module receives a control signal from the processor, the internal relay coil is energized, the contacts close, and the external load circuit is connected; when the signal disappears, the coil is de-energized, the contacts open, and the load is disconnected.
Relay contacts are suitable for switching inductive or resistive loads and do not require additional surge suppression. However, it is recommended to install a suppressor on external inductive loads to extend contact life.
The terminal block supports a maximum wire size of 2mm² (14 AWG), with a maximum of 2 wires per terminal. The tightening torque is 0.9 Nm (8 lb-in.).
Product Parameter
The following detail is for Allen Bradley 1746-OW16 Relay Contact Output Module.
Output Type: Relay contact output (AC/DC compatible)
Output Points: 16 points
Operating Voltage Range: AC: 5~265V AC, DC: 5~125V DC
Signal Delay: 10.0 ms for both On and Off under maximum resistive load
Off-state Leakage Current: 0 mA (no leakage)
Minimum Load Current: 10 mA (at 5V DC)
Relay Contact Ratings (Continuous Current):
AC: 2.5A at 120V, 1.0A at 240V
DC: 1.0A at 125V, 2.0A at 24V
Maximum Continuous Current: 16.0A AC (8.0A per common)
Backplane Current Consumption: 5V DC: 0.170A, 24V DC: 0.180A
Operating Temperature: 0~60°C (32~140°F)
Non-operating Temperature: -40~85°C (-40~185°F)
Operating Humidity: 5%~95% (non-condensing)
Vibration Operating: 0.015 inch displacement (peak) at 5~57Hz, 2.5g acceleration at 57~2000Hz
Shock Operating: 10g (unique to relay modules, lower than 30g for other non-relay modules)
Isolation Capability: 1500V (electro-optical isolation between I/O terminals and control logic)
Power Consumption per Point: 0.033W
Minimum Power Consumption: 5.170W (when no external power is present)
Total Power Consumption: 5.70W (when all points are energized)
