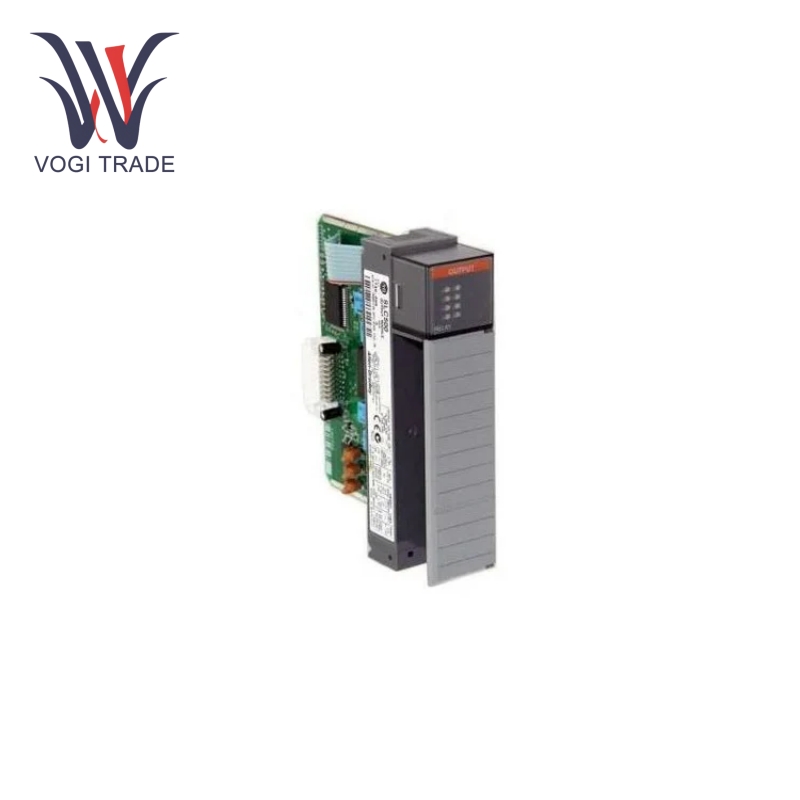

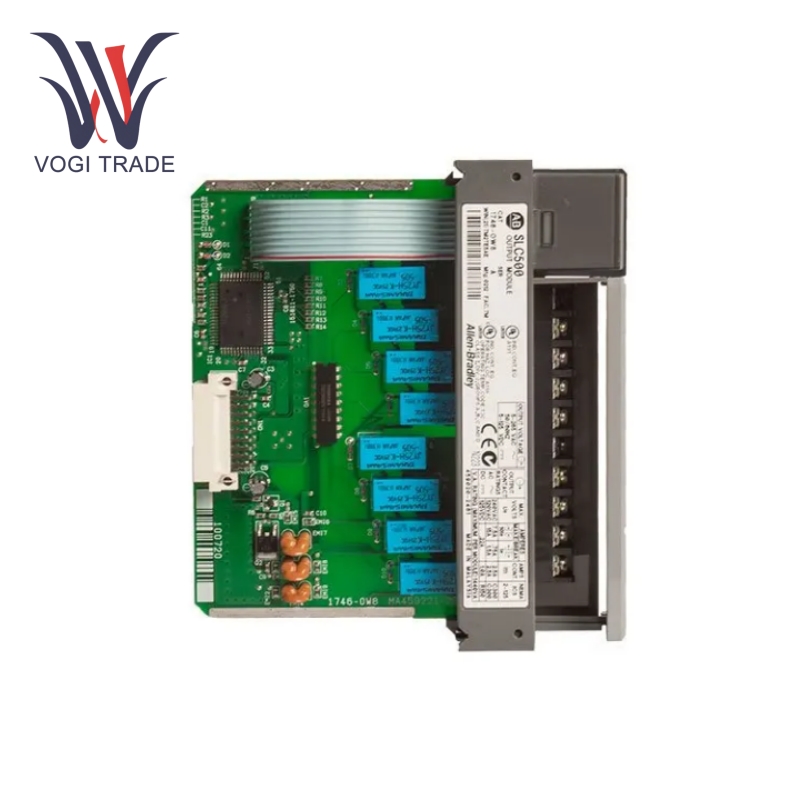

Allen Bradley 1746-OW8

Technical Parameter

Output Signal: Digital output.

Output Voltage Range: 5 - 125V DC, 5 - 265V AC.

Maximum Output Current per Channel: 10A.

Backplane Current Consumption: 0.085A at 5V DC, 0.090A at 24V DC.

Response Time: 0 - 10 milliseconds.

Operating Temperature Range: 0 to 60 degrees Celsius.

Storage Temperature Range: -40 to 85 degrees Celsius.

Vibration Resistance: Peak displacement of 0.015 inches at 5 - 57 Hz, acceleration of 2.5g at 57 - 2000 Hz.

Function Features

Signal noise reduction: The Allen Bradley 1746-OW8 has an optical coupling and filter circuitry that will function as ground noise decrease, improving the output signals and making them more accurate and reliable.

Color-coded terminal blocks: Other assures Allen Bradley 1746-OW8 uses removable terminal blocks that have different colors, while the front panel has a color band lining to match the terminal blocks to make it easy to install and maintain.

Chassis connectivity: It can interface with a maximum of three chassis and thirty I/O modules with a single controller and/or communication adapter, thus allowing great flexibility in system expansion and configuration.

Space and cost saving: In most cases, the Allen Bradley 1746-OW8 saves panel space and is cost-effective since it can directly hold different voltage categories without having to go through the interposing relays.

Wide voltage compatibility: It can operate on an AC and DC voltage supply across a vast voltage range, making it suitable for use in a wide variety of industrial applications in a variety of power supply installations and thereby minimizing the requirement for further components or voltage converters.

Applications

Material handling: Allen Bradley 1746-OW8 can control the movement and positioning of materials in conveyor systems, overhead crane controls, and other material-handling applications, thus resulting in efficient and safe transporting of products within the factory or warehouse.

Packaging equipment: Set to control fillers, cappers, labelers, case packers, etc., Allen Bradley 1746-OW8 ensures interdependence within the packaging line and accurate and consistent product packaging.

HVAC systems: It controls fans, dampers, and compressors in heating, ventilating, and air-conditioning systems, regulating the temperature, humidity, and air quality of industrial or commercial buildings.

Automotive Manufacturing: Allen Bradley 1746-OW8 is put to use in automotive production lines to control robotic arms, welding equipment, and conveyors, ensuring accurate and efficient manufacturing of vehicle components and the vehicles themselves.

Industrial automation: It is widely applied in other kinds of industrial automation processes, such as controlling motors, pumps, valves, and other electro-mechanical machines in factories, it helps to automate production lines, improve production efficiency, and provide an unhindered flow of diverse processes.

Process Control: In industries such as chemicals, petrochemical, food, and drink, Allen Bradley 1746-OW8 finds application in controlling process parameters such as temperature, pressure, flow rate, and level control. The module integrates with sensors and actuators to control operation parameters accurately, hence protecting production process quality and stability.
