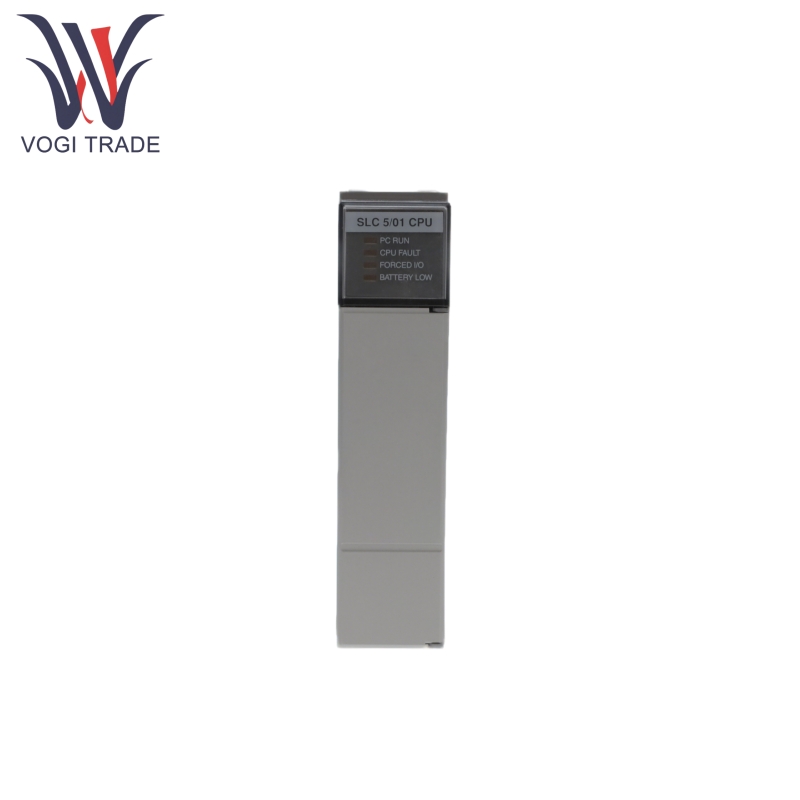

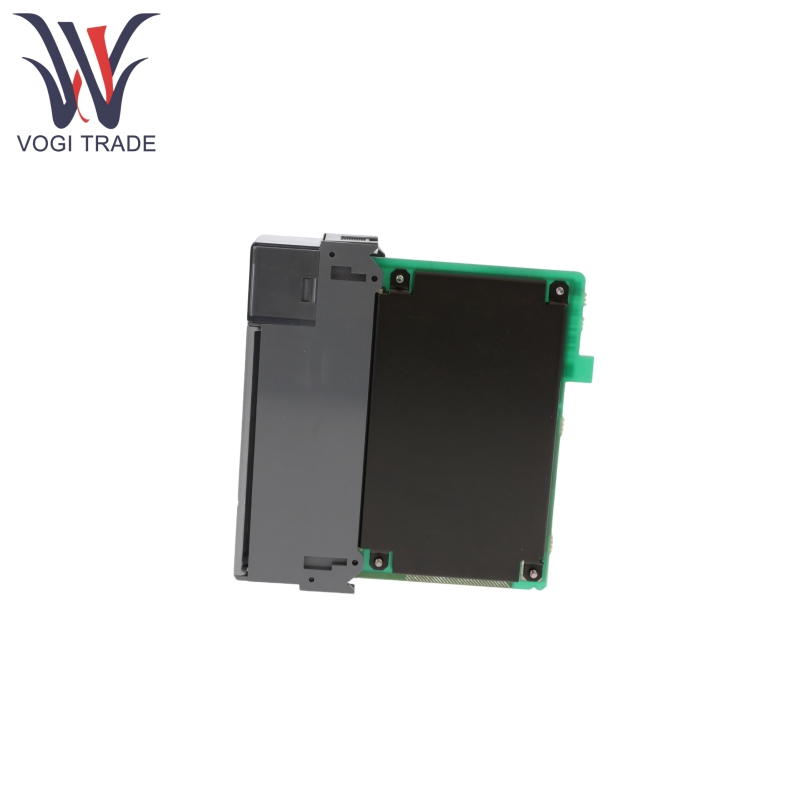

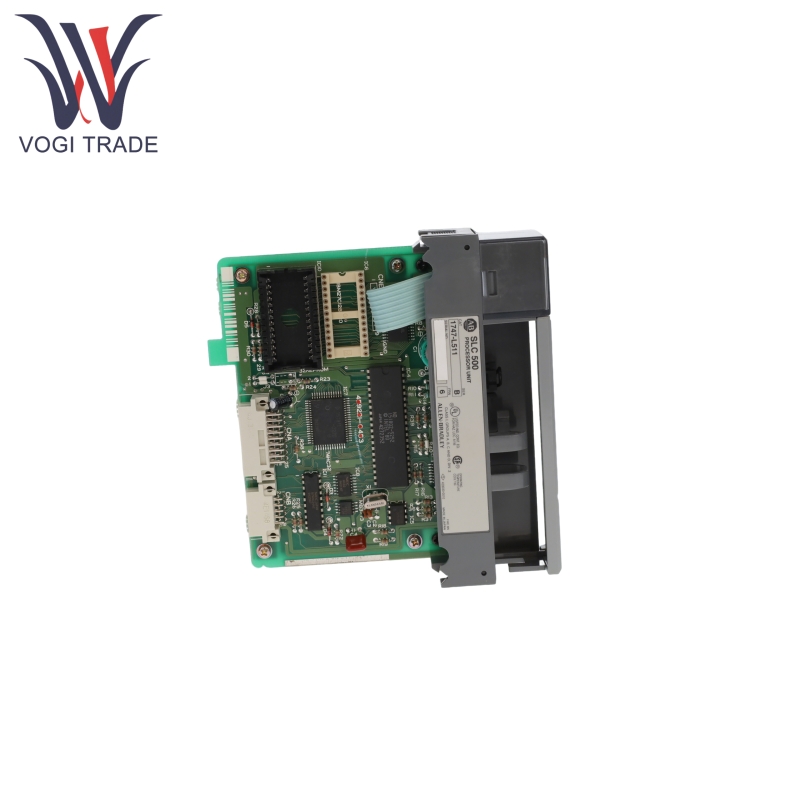

Brand: Allen Bradley Description: Controller Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 1747-L511 is designed for small and medium-sized industrial automation control systems, supports ladder diagram programming, and is suitable for cost-sensitive scenarios that require basic control functions. Its central role is to furnish dependable logic operations and I/O handling for small production machinery, process control or even as a distributed system.
|
Manufacture |
Allen Bradley |
|
Model Number |
1747-L511 |
|
Ordering Number |
1747-L511 |
|
Catalog |
SLC 500 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8543709990 |
|
Dimension |
14*14*10cm |
|
Weight |
0.6kg |
Product Features
Allen Bradley 1747 L511 processor has 1K words of user memory that can be expanded to 4K words with 1747-M1(1K) or 1747-M2(4K) EEPROM memory modules for program and data.
Allen Bradley 1747-L511 has a built-in supercapacitor or an optional battery (1747-BA) built inside, and that supercapacitor or battery does memory backup to maintain data in case there was a lose in power.
Allen Bradley 1747-L511 has a built-in DH-485 port, but can only act as a slave to an SLC 5/03 or higher processor, so it cannot be an active message originator.
Allen Bradley 1747-L511 can connect to a DeviceNet network via an expansion module or use the 1747-SN for remote I/O communication. It supports comprehensive I/O diagnostics, capable of detecting system faults and field device abnormalities.
Allen Bradley 1747-L511 is equipped with LED indicator lights that display real-time operational status (RUN), CPU fault (FLT), low battery (BAT), and I/O force (FORC), among others.
Allen Bradley 1747-L511 uses RSLogix 500 software for ladder logic programming, supporting offline editing, online monitoring, and runtime modifications. It is compatible with the 1747-CP3 programming cable, connecting to a computer via an RS-232 interface.
Product Working Principle
Allen Bradley 1747-L511 employs a cyclic scanning mechanism, sequentially executing three stages, input sampling, program execution, and output refresh.
Input sampling: Reads the status of all input modules and stores them in the image table.
Program execution: Parses instructions line by line according to ladder logic, updates internal registers, and updates the output image table.
Output refresh: Writes the results of the output image table to the physical output modules.
Allen Bradley 1747-L511 also supports ladder diagram programming, where users can write logic instructions (such as relays, timers, and counters) using RSLogix 500. The program is stored in EEPROM, and the processor executes it cyclically according to the scan period.
Product Parameter
The following detail is for Allen Bradley 1747-L511 Controller.
Power Supply:
Backplane power supply: 350mA at 5V DC, 105mA at 24V DC.
Input voltage range: 12-24V DC (requires external power module support)
I/O Capability:
Supports up to 3 local I/O chassis, with a total of 960 digital I/O points or 96 analog I/O points
Remote I/O expansion up to 4096 remote I/O points can be connected via the 1747-SN module
Processing Performance:
Program scan time: 8 milliseconds per keyword
I/O scan time: 2.6 milliseconds
Operating Environment:
Temperature: 0-60°C
Humidity: 5%-95% (non-condensing)
Vibration resistance: 2.5g (5-2000Hz) in operating state, 5g in non-operating state
