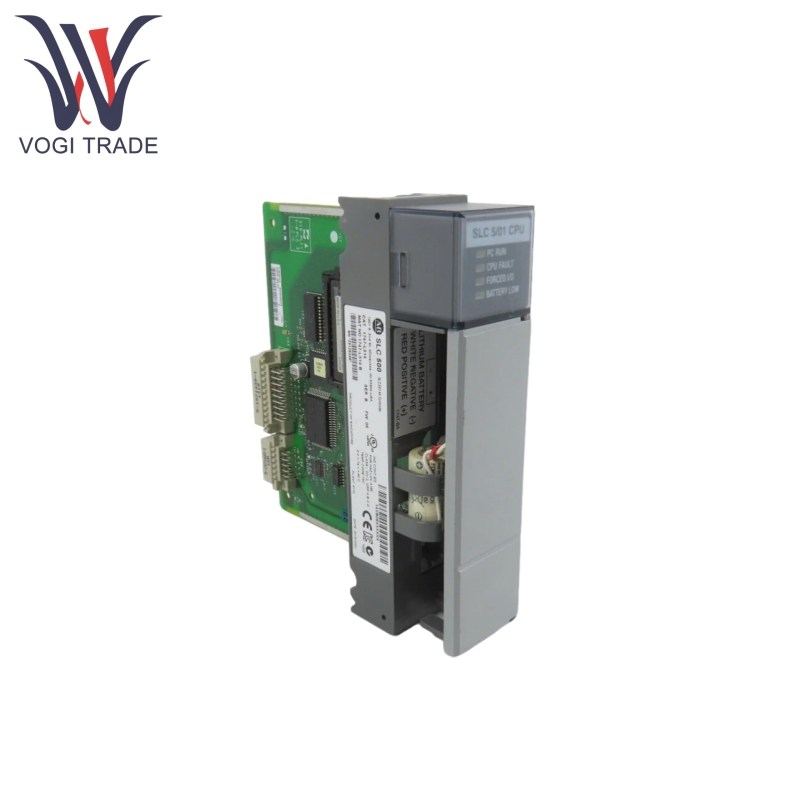

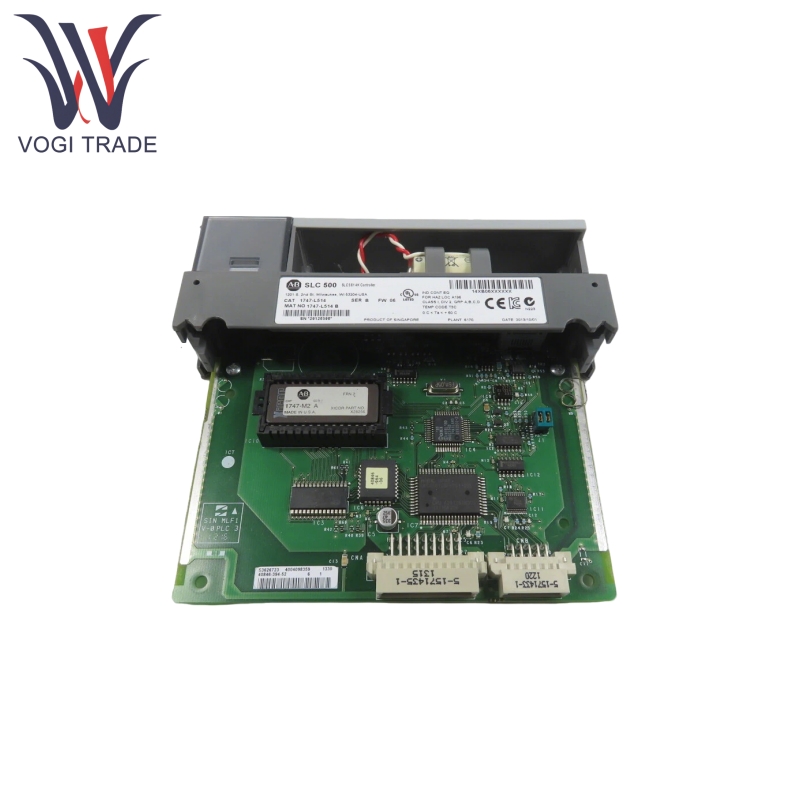

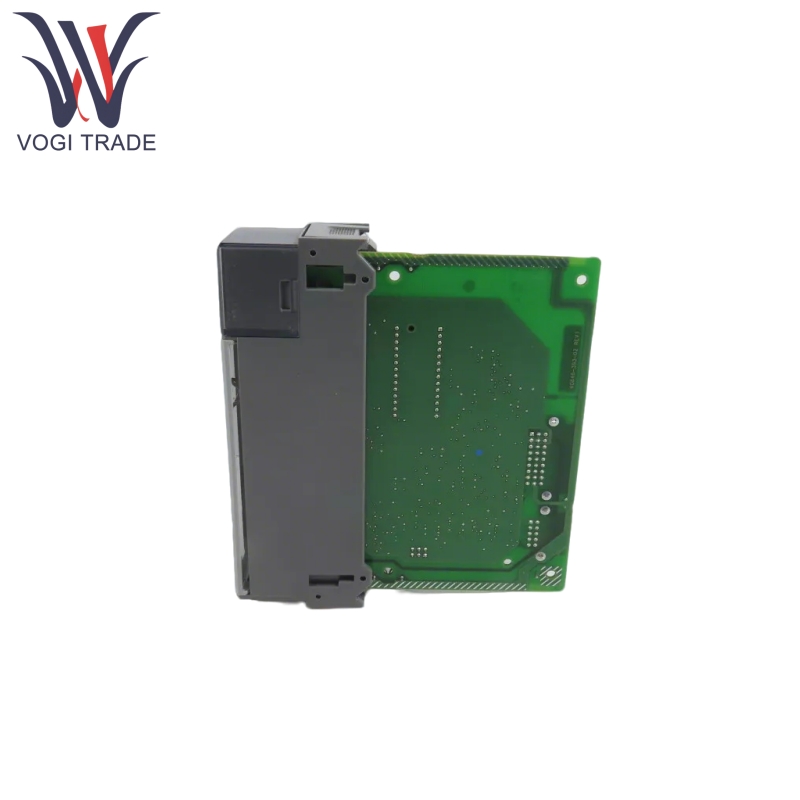

Brand: Allen Bradley Description: Processor Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 1747-L514 core positioning is to achieve logic control, sequence control, and simple process monitoring, and it is suitable for equipment with moderate requirements for I/O points and processing capacity.
|
Manufacture |
Allen Bradley |
|
Model Number |
1747-L514 |
|
Ordering Number |
1747-L514 |
|
Catalog |
SLC 500 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8471800000 |
|
Dimension |
14*14*8cm |
|
Weight |
0.6kg |
Product Features
Allen Bradley 1747-L514 features built-in 4K user program memory and supports expansion of non-volatile storage via the optional 1747-M1 (1K EEPROM) or 1747-M2 (4K EEPROM) modules, ensuring that programs are not lost in the event of a power outage.
The backup battery 1747-BA can maintain memory data for approximately two years and alerts via an LED indicator when the voltage is low.
Allen Bradley 1747-L514 comes standard with a DH-485 interface and supports network connectivity expansion via the 1761-NET-AIC adapter or third-party converters, compatible with protocols such as DF1 and ASCII.
Allen Bradley 1747-L514 can communicate as well with RS-232/RS-485 using the 1747-KE module or with remote I/O network with the 1747-DCM module.
Allen Bradley 1747-L514 supports Ladder Logic, with an instruction set including basic logical operations, timers, counters, and subroutine calls. It has interrupt handling capabilities, enabling it to respond to real-time signals from external devices.
Product Application
Allen Bradley 1747-L514 can be used in manufacturing, process automation, energy and infrastructure.
Manufacturing
Production line control: such as material transportation and motor start/stop logic on automobile parts assembly lines.
Packaging machinery: sequential control of processes such as label printing, box sealing, and palletizing.
Process Automation
Water tower water level monitoring: Real-time monitoring of water levels via sensors to control pump start/stop operations and maintain stable liquid levels.
Mixing equipment control: Coordinating the proportionate mixing of multiple liquids and temperature regulation in the food and beverage industry.
Energy and Infrastructure
Small pump station management: Integrated control of valve operation, flow regulation, and fault alarms.
Building automation: Used for elevator scheduling and timing management of lighting systems.
Product Parameter
The following detail is for Allen Bradley 1747-L514.
Power Supply Specifications: 5V DC, backplane current 0.09A, power consumption 1.75W, supports wide voltage input (24V DC ±10%).
I/O Expansion Capability: connect up to 30 I/O modules distributed in 3 1746 local chassis or remote I/O stations, supporting 4096 I/O points (mixed digital/analog).
Scanning Speed: 8ms/k word (user program execution rate), suitable for scenarios with not extremely high real-time requirements.
Environmental Requirements: Operating temperature 0-60℃, humidity 5%-95% RH (non-condensing).
