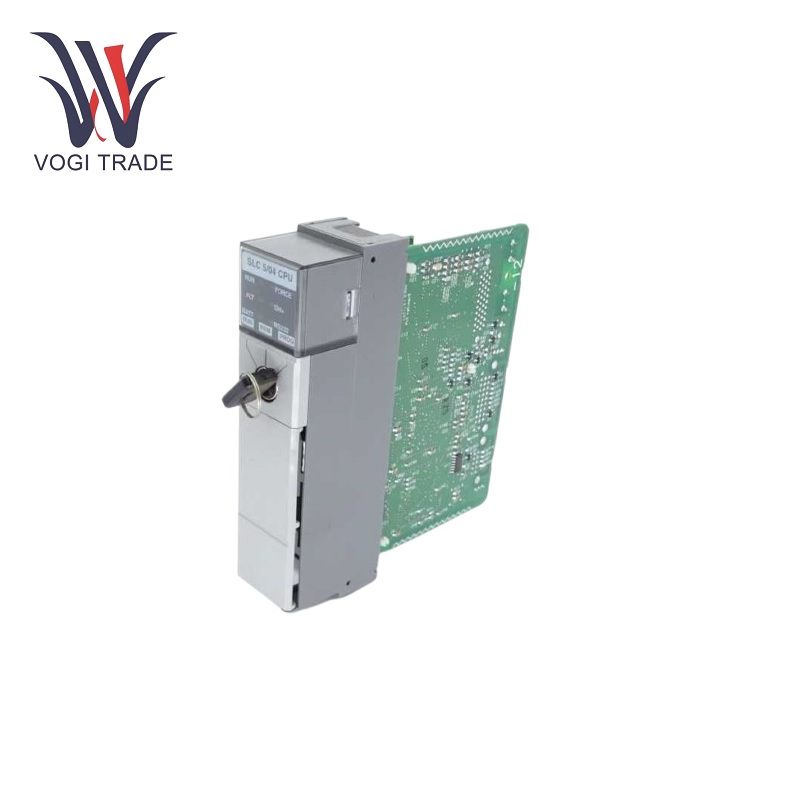

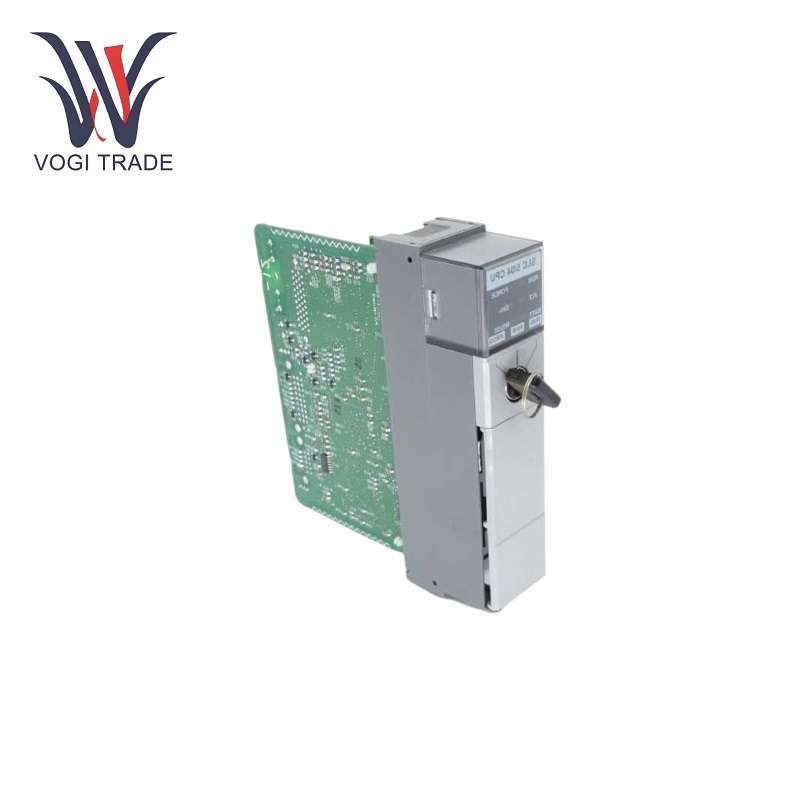

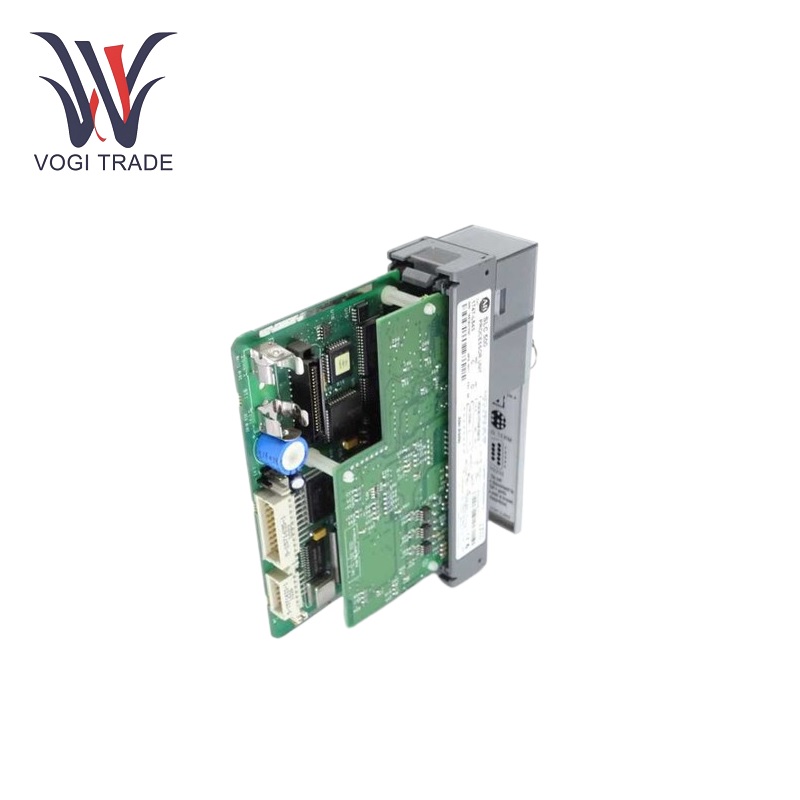

Allen Bradley 1747-L543

Technical Parameter

I/O capacity: Maximum discrete input and output capacity 4096 each.

Number of I/O module slots: 30 I/O module slots.

Average format scan time: 0.9ms/k

Average i/o scan time: · 0·225ms.

Operating temperature: 0 to 60 degrees Celsius.

Hardware communication: The DH+ and RS-232 communication ports are supported.

Communication support: Allen Bradley 1747-L543 supports Data Highway Plus communication protocol that enables high-speed communication with other processors, terminals and interfaces.

Function Features

Multi-Language Programming: Allen Bradley 1747-L543 provides by the multi-language support for ladder logic, function block diagram, and structured text. This versatility allows engineers to select the most suitable language according to their programming style and the nature of the control application. This allows for the provision of a programming software that supports various languages, and the IDE includes intuitive development tools like drag-and-drop support and online editing with complete debugging support, which improves the effectiveness of program development and maintenance.

Data Logging and Analysis: Allen Bradley 1747-L543 does causal modeling for measuring data logging and analysis. It can log process data, such as sensor values, actuators, and activity, continuously. Itis able to save this data internally and pull it out for analysis. Advanced data analytics tools can be employed to uncover trends, identify anomalies and optimize process performance. This function is key to preventive maintenance quality control and process improvement.

MOTION CONTROL Functionality : It can perform advanced motion control functions. Allen Bradley 1747-L543 supports precise servo and stepper motor movement control, enabling applications like robotic stage assembly, CNC milling or turning, and conveyor belt synchronization. It provides position control, velocity control, acceleration and deceleration profiles, and electronic gearing, among other features. This keeps manufacturing processes productive and high quality, ensuring correct and smooth motion.

Fault Detection and Diagnostics: Allen Bradley 1747-L543 comes with strong fault detection and diagnostics functionalities. It regularly checks the health of its internal components, I/O modules, and attached devices. When a fault occurs, it can quickly locate the source and nature of the problem while providing rich diagnostic information. Data is fed into a single screen that alerts maintenance personnel in case of any issues, making it easy to fix and enabling the system to start immediately, which ultimately reduces downtime and increases production efficiency.

Applications

Manufacturing Processes:  It is used widely in manufacturing processes of automotive, aerospace, electronics, etc. It manages production lines, workcells, and machining centers.

Process industries: It is used in chemical, pharmaceutical, and food and beverage industries to control and monitor intricate processes. Inside a chemical plant, Allen Bradley 1747-L543  manages reactors, pumps, and valves, ensuring that chemical reactions run safely and stably.

Material Handling and Logistics: Allen Bradley 1747-L543 controls automated material handling systems used in warehouses and distribution centers such as AS/RS (Automated Storage and Retrieval Systems), conveyor belts, and palletizers. This streamlines the movement of products, increases inventory organization and maximizes theefficiency of the entire supply chain.
