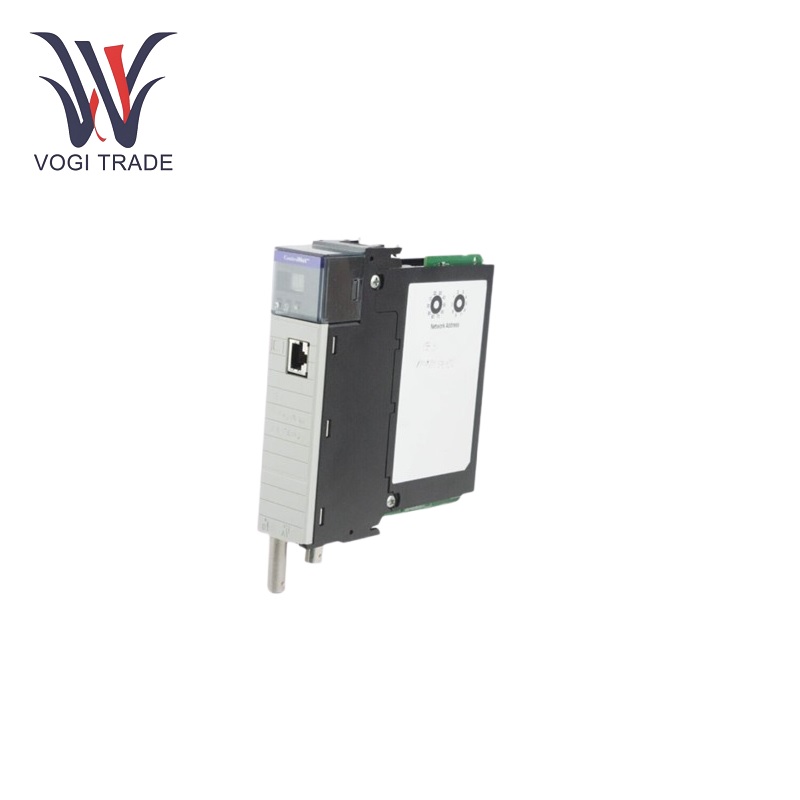

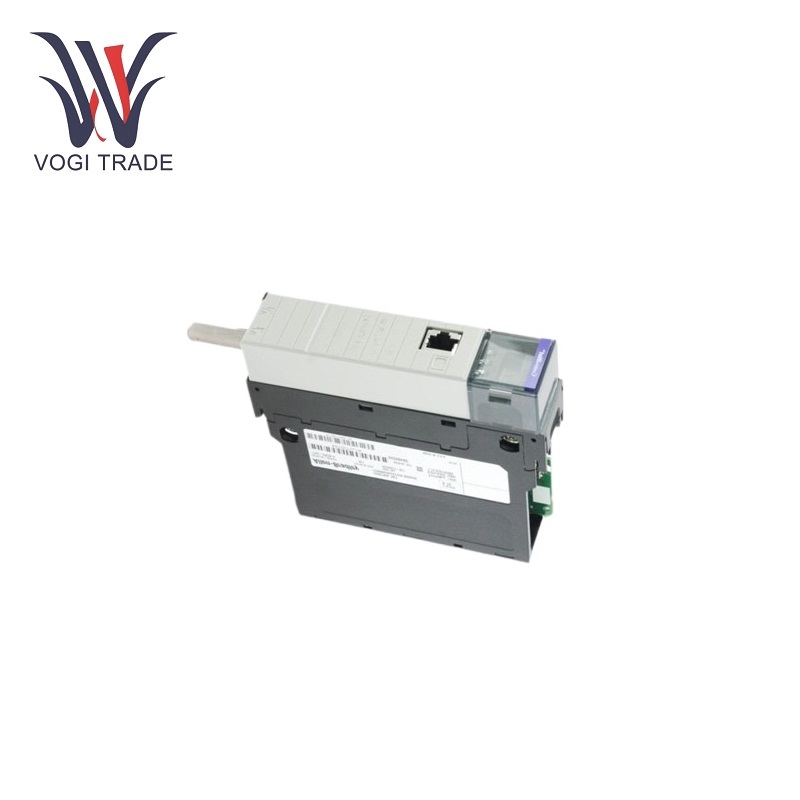

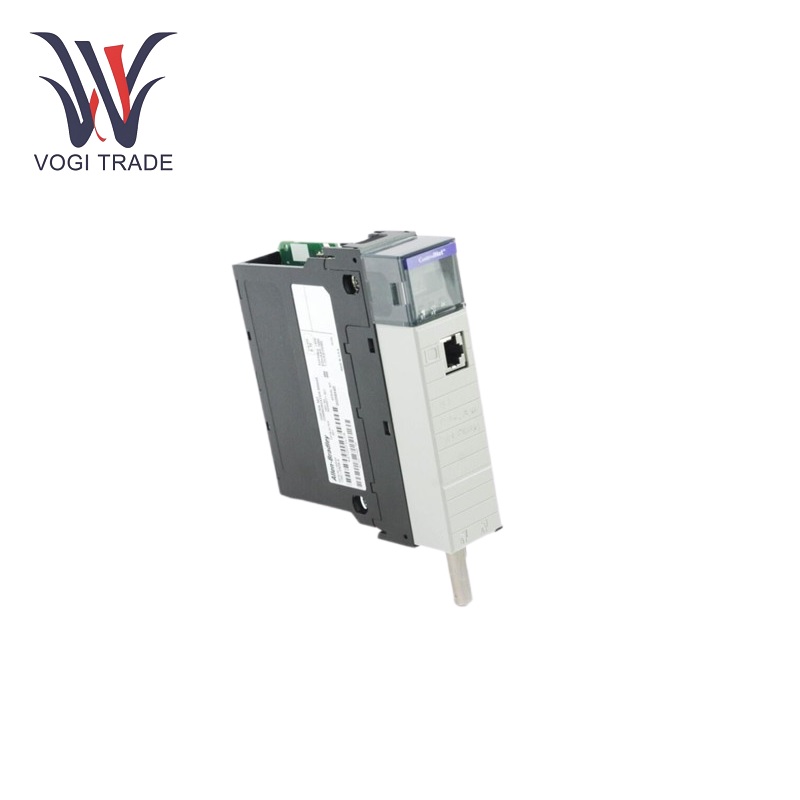

Brand: Allen Bradley Description: ControlNet Redundant Interface Module Condition: New Warranty: 1 year Inventory Qty: 9 Payment term: T/T Shipping Port: ShenZhen Allen Bradley 1756-CN2RK can be connected to multiple devices or network nodes in a flexible way, which greatly expands the communication range and connection capacity of the control system, making the architecture of the whole industrial network richer and more flexible.
|
Manufacture |
Allen Bradley |
|
Model Number |
1756-CN2RK |
|
Ordering Number |
1756-CN2RK |
|
Catalog |
- |
|
Country Of Origin |
United States |
|
HS CODE |
8537101190 |
|
Dimension |
5.4*23.5*18.3cm |
|
Packing Dimension |
8*26*22cm |
|
Weight |
0.26kg |
Technical Parameter
Ports Number:2 ControlNet BNC ports.
Transmission Rate：5000 kbps.
Worksheet Key Title：Logix
Communication Connections：128.
Power Dissipation：5.6 W.
Thermal Dissipation：19.1 Btu/h
Operating Temperature：0 to 60°C.
Operating Storage Temperature: -40 to 85 °C.
Relative Humidity：5 to 95%,noncondensing.
ESD Immunity:8 kV air discharge, 6 kV contact discharge.
EFT/B Immunity：±3 kV on ControlNet ports.
Function Features
Network Topology Support: Allen Bradley 1756-CN2RK supports various network topologies, including star, bus, and tree. So, it enables integration in existing industrial networks and adaption for different plant layout and requirements.
Time Synchronization: Time synchronization is also important for many control applications. Allen Bradley 1756-CN2RK can accurate time synchronization can be performed throughout the network. The chief objective of this is to reduce n the overall error and enhance the efficiency industrial working.
Built-In Diagnostic: Allen Bradley 1756-CN2RK contains inbuilt diagnostic properties. It can constantly monitor the state of the communication links and detect errors or faults such as an open cable, signal interference, or port failure, and provide the operators with detailed diagnostic information or alert the maintenance crew.
Data Buffering and Flow Control: It can buffer data when there is network congestion or high network traffic. This feature guarantees that no information is lost out of their systems, assisting in maintaining a smooth and gradual array of information across the networks.
Scalability: The Allen Bradley 1756-CN2RK is very scalable. This allows more devices to easily be added to the network it supports as industrial processes scale or evolve. This scalability provides the industrial control system the potential for future-proofing while permitting effortless upgrades and changes.
Applications
Manufacturing Industry: It is used in manufacturing plants to connect PLCs, motor drives, sensors, and other electronic automation equipment. They serve as a communication bridge between various components on the factory floor, allowing the timely exchange of control signals and data for the accurate regulation of manufacturing processes ranging from assembly lines and machining operations to material handling systems.
Automotive Production: It is a key component in automotive production plants. Robotic arms, conveyor belts, and quality control systems all connect through Allen Bradley 1756-CN2RK. It brings the assurance of reliable communicator, that makes different stages of production including body welding, painting and final assembly synchronised, therefore increasing production efficiency and product quality.
Process Industries: Allen Bradley 1756-CN2RK is a device used to interconnect process control systems, pumps, valves and temperature/pressure sensors. Its accuracy in transferring and synchronizing data plays an important role in maintaining the process parameters strictly, so that the safety of the produced products is ensured.
