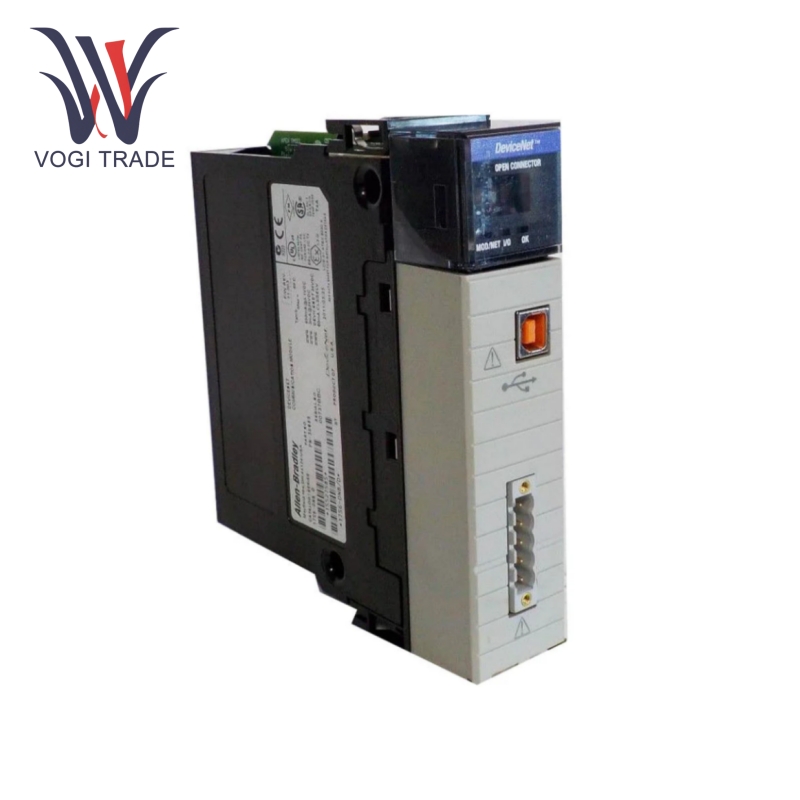

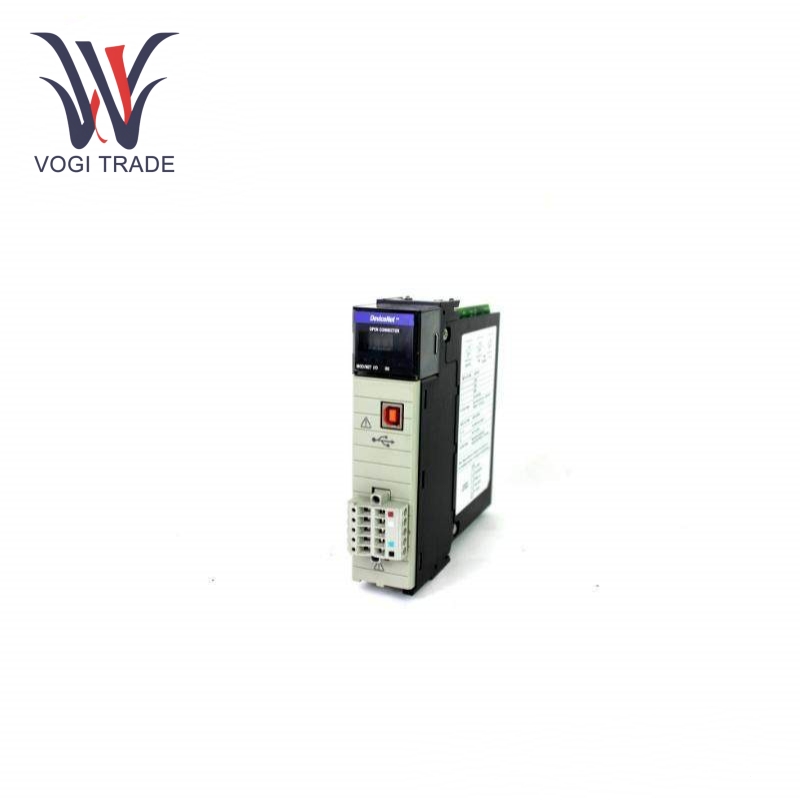

Allen Bradley 1756-DNB

Technical Parameter

Digital I/O: 128,000.

Analog I/O: 4,000.

Backplane Current: 580 milliamps @ 5.0 volts DC, 3 milliamps @ 24 volts DC.

DeviceNet Current: Maximum 90 milliamps @ 11 - 25 volts DC, typical 30 milliamps @ 11 - 25 volts DC.

Power Dissipation: Maximum 5.3 watts.

Thermal Dissipation: 19.8 BTU per hour.

Insulation Voltage: 30 volts continuous.

Communication Rates: 125 kbps (500 m max), 250 kbps (250 m max), 500 kbps (100 m max).

Maximum Number of Nodes: 64.Operating

Temperature: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).

Storage Temperature: -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit).

Relative Humidity: 5 to 95% without condensation.

Shock: 30 g operational, 50 g non-operational.

Vibration: 5 g from 10 - 150 Hz.

Program Scan Time: 0.08 milliseconds.

Function Features

Data collection and transfer: Allen Bradley 1756-DNB acts as a bridge communication between DeviceNet and the ControlLogix system. Collecting data from DeviceNet module and delivering it to the controller.

Flexible communication modes: It uses strobe, polling, change of state, and cyclic messages to efficiently retrieve data from and supply data to every device. Allen Bradley 1756-DNB sends collected data to the controller as input data and from the controller to individual devices as output. Diagnostic and monitoring capabilities：Allen Bradley 1756-DNB has easy-access diagnostic outputs, diagnostic table inputs, and outputs that allow users to find out the operational status of devices connected to the DeviceNet network. Quickly diagnose problems or failure states in the system and follow through with corrective actions.

Configuration and programming：Allen Bradley 1756-DNB can download configuration data into DeviceNet devices, enabling users to customize how connected devices will operate and which settings will govern them. The module integrates with Logix 5550 controller and other Allen Bradley ControlLogix components. It works with RSNetWorks for easier configuration and put onsite use within an existing industrial automaton infrastructure. Allen Bradley 1756-DNB supports communication with a wide array of DeviceNet devices for interfacing between differing sensors, actuators, and industrial equipment, and hence is largely being used over a range of broad industrial applications.

Advanced Diagnostic and Troubleshooting: Detailed diagnostic information provided by it aids in quick localization of problems in the DeviceNet network or a connected device. This considerably reduces downtime and maintenance costs and provides for efficient troubleshooting and repair.

Applications

Automobiles: It can monitor and control robotic arms, conveyor belts, welding equipment, and other machinery on an automobile manufacturing assembly line. It ensures that such devices operate accurately and synchronously, hence enhancing production efficiency and product quality.

Food and Beverage: In food processing plants, Allen Bradley 1756-DNB can be applied to control mixers, fillers, packaging machines, and conveyors. The module helps maintain accurate and hygienic operation, meeting the fresh quality and safety standards of the food and beverage industry.

Pharmaceutical: In pharmaceutical manufacturing, it might monitor and control critical processes involved in drug formulation, packaging, and quality testing. Assurance of the steady performance of Allen Bradley 1756-DNB guarantees the integrity and quality of pharmaceutical products.

Energy: In power plants, the module may serve as a monitoring and control system for turbines, generators, and pumps. The information generates real-time performance and status data for the assets, improving operational efficiency and preventive maintenance.

Material Handling and Logistics: In warehouses and distribution centers, Allen Bradley 1756-DNB can be applied to control conveyor systems, automated storage and retrieval systems (AS/RS), and other material handling equipment. This has a positive effect on the movement of goods and results in greater overall logistics efficiency. Chemical: It may be used to monitor and control chemical reactors, pumps, valves, and other process equipment in chemical plants. The accurate data collection and control capabilities of the module provide for safe and efficient chemical processing operations.
