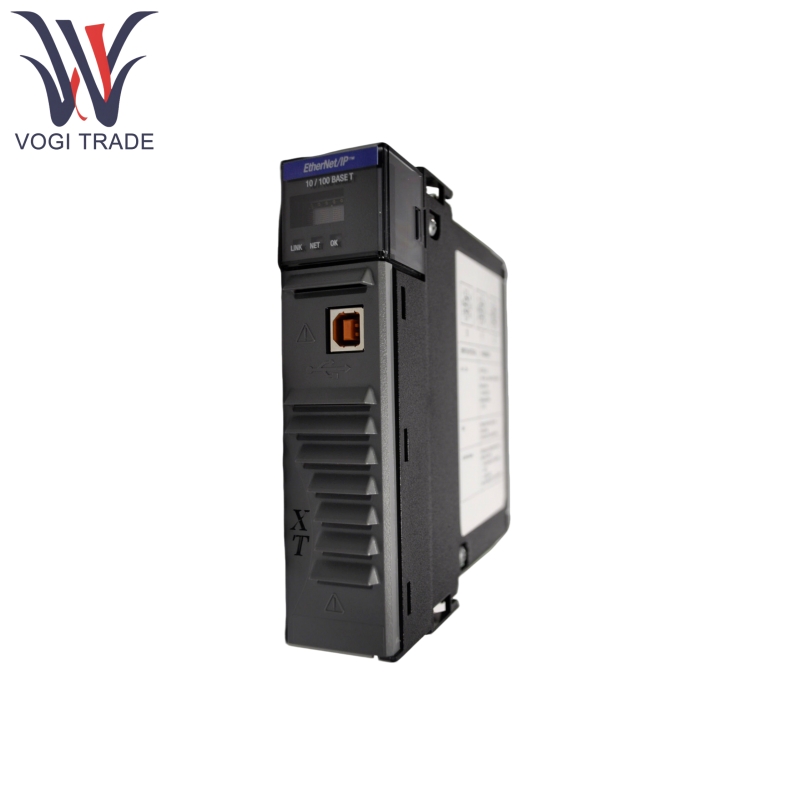

Brand: Allen Bradley Description: Extended Environment Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 1756-EN2TXT is to add EtherNet/IP network access to ControlLogix system allowing the controller to connect local or remote I/O devices, other controllers or computers at higher level. It also realizes real time I/O message transfer and general message communication in accordance with open EtherNet/IP protocol (also compatible with CIP protocol).
|
Manufacture |
Allen Bradley |
|
Model Number |
1756 |
|
Ordering Number |
1756-EN2TXT |
|
Catalog |
ControlLogix |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
14*14*6cm |
|
Weight |
0.4kg |
Product Features
Allen Bradley 1756-EN2TXT is -25°C to +70°C (-13°F to +158°F) and is much higher than common modules and is applicable to low-temperature or high-temperature industrial environments.
Allen Bradley 1756-EN2TXT as an EtherNet/IP network interface, it enables communication between the ControlLogix system and other EtherNet/IP devices, supporting real-time I/O data transmission and message exchange.
Allen Bradley 1756-EN2TXT supports industrial-grade security access control, enabling secure access to the control system from within the factory network.
Allen Bradley 1756-EN2TXT has obtained multiple environmental certifications (such as ANSI/ISA-S71.04-1985 Class G1/G2/G3), and is resistant to salt fog, corrosion, humidity, and fungal growth. It is also resistant to electromagnetic interference (EMI) and vibration/shock, making it suitable for complex industrial environments.
Product Working Principle
Allen Bradley 1756-EN2TXT is used primarily with controllers that are installed in the ControlLogix rack (like 1756-L8x/L7x) and which it serves by getting the controllers' commands through the backplane bus and transferring them to the external devices which have access to the Ethernet/IP interface.
Allen Bradley 1756-EN2TXT is based on the CIP protocol and supports two communication modes:
Implicit messages: real-time I/O data transmission (such as sensor and actuator signals).
Explicit messages: non-real-time configuration, diagnostic, or control commands (e.g., parameter modifications, status queries).
Allen Bradley 1756-EN2TXT features enhanced durability against wide temperature ranges and corrosive environments through special design elements (e.g., optional conformal coating), ensuring stable operation under harsh conditions.
Product Parameter
The following detail is for Allen Bradley 1756-EN2TXT Extended Environment Module.
|
Item |
Specification |
|
Operating Temperature |
-25°C ≤ Ta ≤ +70°C (-13°F to +158°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Relative Humidity |
5%~95% (non-condensing, IEC 60068-2-30) |
|
Vibration Resistance |
2 g @ 10~500 Hz (IEC 60068-2-6) |
|
Shock Resistance |
30 g (operating state), 50 g (non-operating state) |
|
Electromagnetic Compatibility (EMC) |
10V/m 1kHz sine wave (80% AM, 80~2000 MHz), ±3 kV EFT/B (Ethernet ports) |
|
Current Consumption |
1 A (refer to the same series XT modules) |
|
Power Consumption |
5.1 W (17.4 BTU/hr, refer to the same series) |
|
Insulation Class |
30V (continuous), basic insulation type |
|
Insulation Test |
980V AC test for 60 seconds (Ethernet to backplane, USB to Ethernet) |
|
Network Protocol |
EtherNet/IP (based on CIP protocol) |
|
Physical Interface |
2 Ethernet RJ45 (Category 5) |
|
Communication Rate |
Supports 10/100 Mbps (auto-adaptive) |
|
Connection Capacity |
Supports Logix communication connections (refer to the same series XT modules, approximately 256) |
