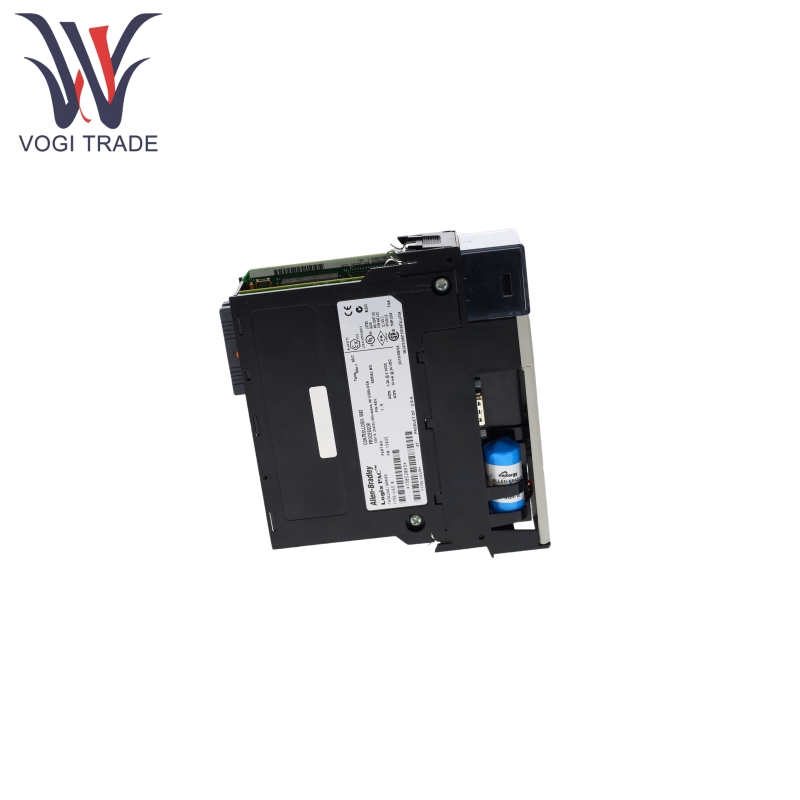

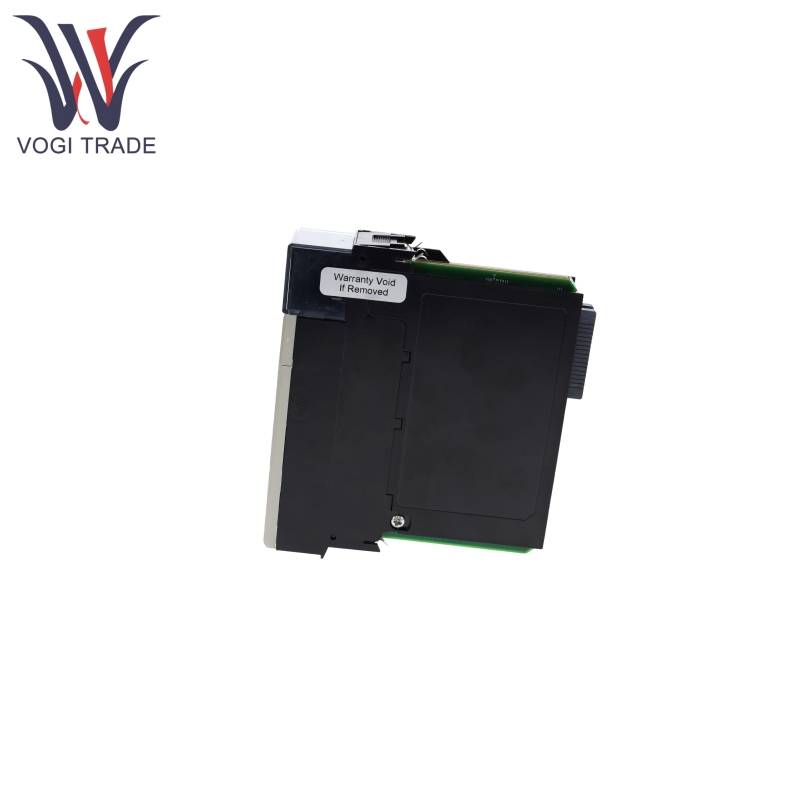

Brand: Allen Bradley Description: Controller Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 1756-L63 is mainly used in industrial automation control systems, responsible for receiving input signals, executing user logic programs, and outputting control commands to achieve precise control of industrial equipment such as production lines and mechanical equipment. This is divided into two series, Series A and Series B, featuring high reliability and flexibility, supporting firmware upgrades, non-volatile memory expansion, and other functions, making it suitable for complex industrial control requirements.
|
Manufacture |
Allen Bradley |
|
Model Number |
1756-L63 |
|
Ordering Number |
1756-L63 |
|
Catalog |
ControlLogix |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8543709990 |
|
Dimension |
12*12*8cm |
|
Weight |
0.8kg |
Product Features
Allen Bradley 1756-L63 supports operation modes such as PROG, RUN, and REM, which can be switched via a key switch or RSLogix 5000 software to meet the needs of programming, debugging, and automatic operation scenarios.
Allen Bradley 1756-L63 supports 1784-CF64/128 industrial-grade CompactFlash card expansion for storing project programs and data. The installation methods for Series A and Series B differ (Series B requires securing via a latch).
Allen Bradley 1756-L63 can update firmware via ControlFLASH software, which must be compatible with the RSLogix 5000 software version.
Allen Bradley 1756-L63 supports installation/removal while the chassis is powered on, but power must be disconnected in hazardous environments (to prevent arcing and explosions).
Allen Bradley 1756-L63 has strong electromagnetic compatibility (EMC), compliant with CISPR 11 Group 1, Class A standards, and can withstand interference from static electricity, radio frequencies, etc.
Allen Bradley 1756-L63 provides real-time feedback on operational status through multiple indicator lights (RUN, I/O, FORCE, RS232, BAT, OK), for example:
The RUN light is on, indicating the device is in run mode.
The OK light flashes red, indicating a firmware update is required.
The BAT light is red, indicating low battery power or no battery installed.
Product Working Principle
Allen Bradley 1756-L63 connects to I/O modules via a backplane bus and receives input signals from sensors, instruments.
It runs user programs written in RSLogix 5000 software to process input signals.
It sends control commands to actuators based on the results of the calculations.
Programs and critical data can be stored on a CompactFlash card or in memory, and a battery (1756-BA1/BA2) is used to temporarily store data in the event of a power failure.
Product Parameter
The following detail is for Allen Bradley 1756-L63.
Memory:
Data and Logic Memory: 8 MB
I/O Memory: Used for storing I/O tags, communication data, etc. (Not individually specified, refer to series characteristics)
Power Supply and Power Consumption:
Backplane Current: 5.1V DC (Specific value not individually specified, refer to the average level of the series)
Power Dissipation: Approximately 5.6-5.7 W
Thermal Dissipation: Approximately 19.1-19.4 BTU/hr
Environmental Adaptability:
Operating Temperature: 0-60°C (32-140°F)
Storage Temperature: -40-85°C (-40-185°F)
Relative Humidity: 5-95% (non-condensing)
Vibration: 2 g @ 10-500 Hz (IEC 60068-2-6)
Shock (Operating / Non-operating): 30 g / 50 g (IEC 60068-2-27)
Electromagnetic Compatibility:
ESD Immunity: 6 kV contact discharge, 8 kV air discharge (IEC 61000-4-2)
Radiated Immunity: 10 V/m (80-2000 MHz, IEC 61000-4-3)
Firmware Requirements:
Series A: 10.x or later without a CF card; 11.x or later with a CF card
Series B: 13.40 or later
