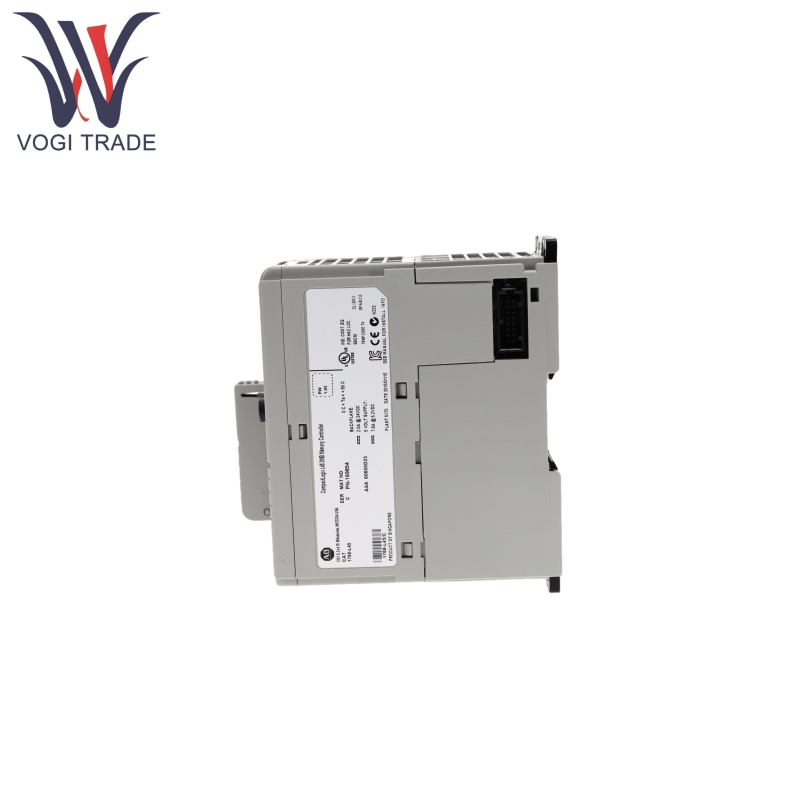

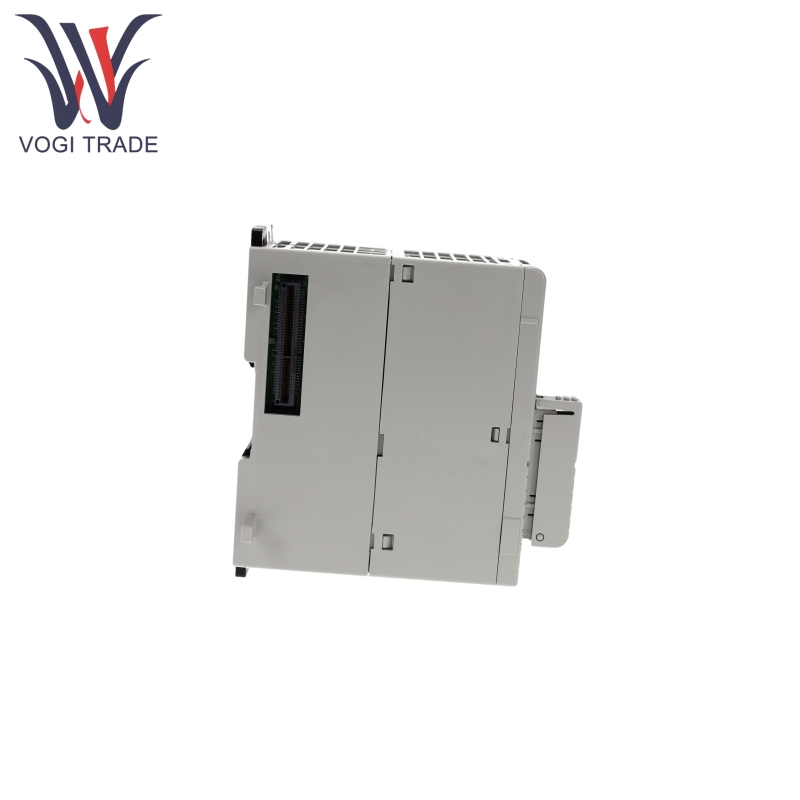

Brand: Allen Bradley Description: Controller Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 1768-L45 is specifically designed for medium-sized industrial automation applications and is suitable for scenarios that integrate I/O control, motion control, and multi-network communication. It supports flexible module expansion and diverse network protocols to meet the complex requirements of machine-level control.
|
Manufacture |
Allen Bradley |
|
Model Number |
1768-L45 |
|
Ordering Number |
1768-L45 |
|
Catalog |
CompactLogix |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8543709990 |
|
Dimension |
14*14*10cm |
|
Weight |
0.6kg |
Product Features
Allen Bradley 1768-L45 supports 4 x 1768 slots, with a maximum of 2 communication modules (such as EtherNet/IP, ControlNet modules) and 4 x 1768-M04SE SERCOS motion control modules.
Allen Bradley 1768-L45 is compatible with the 1769 series I/O modules, supporting up to 30 modules (including local and remote banks, with remote connections via 1769-CRLx expansion cables).
Allen Bradley 1768-L45 natively supports EtherNet/IP (via 1768-ENBT/EWEB modules), ControlNet (via 1768-CNB/CNBR modules), DeviceNet (via 1769-SDN scanners), serial networks (DF1 protocol), and DH-485 networks.
Allen Bradley 1768-L45 supports “Produced/Consumed Tags” and message passing (MSG instructions) to enable real-time communication between controllers and devices.
Allen Bradley 1768-L45 supports SERCOS motion control via the 1768-M04SE module, capable of controlling up to 8 axes, and is compatible with Kinetix series drives.
Allen Bradley 1768-L45 supports axis parameter configuration, tuning, and synchronous control to meet high-precision motion requirements.
Allen Bradley 1768-L45 supports RSLogix 5000 software programming, compatible with Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Sequential Function Chart (SFC), and other programming languages.
Allen Bradley 1768-L45 supports 30 tasks (only 1 continuous task), which can be scheduled by priority (1-15), meeting real-time control requirements.
Allen Bradley 1768-L45 supports CompactFlash card storage for project files and firmware, enabling configuration loading or firmware upgrades after power loss. Firmware can be updated via ControlFLASH, AutoFlash software, or CompactFlash card.
Product Working Principle
Allen Bradley 1768-L45 connects to the power supply, communication module, and motion module via the 1768 backplane, and expands the 1769 I/O module (local or remote) on the right side to form a complete control system.
It receives input signals from the I/O modules, executes logic tasks programmed in RSLogix 5000, controls actuators via output modules, and interacts with other devices through network modules.
It enables real-time data sharing via “produce/consume data” and sends configuration or diagnostic information using MSG instructions.
It can execute periodic, event-triggered, or continuous tasks based on priority, ensuring that critical control logic responds first.
Product Parameter
The following detail is for Allen Bradley 1768-L45 Controller.
|
Category |
Parameter Details |
|
Software Compatibility |
RSLogix 5000 version 16.03.00 or later Firmware must be matched (version 16.03.00 corresponds to firmware 16.025) |
|
Power Supply Requirements |
Must be used with 1768-PA3 (86-265V AC/108-132V DC) or 1768-PB3 (16.8-31.2V DC) power supply |
|
1769 I/O Support |
Up to 30 modules (local + remote remote requires 1769 power supply) |
|
Communication Module Support |
Up to 2 modules (1768-ENBT/EWEB/CNB/CNBR) |
|
Motion Control Capability |
Up to 4 1768-M04SE modules, supporting 8 axes |
|
Operating Temperature Range |
0-60°C (operating), -40-85°C (storage) |
|
Serial Communication Parameters |
Maximum baud rate 19200 bps, supports DF1 protocol, maximum cable length 15.2m (50ft) |
