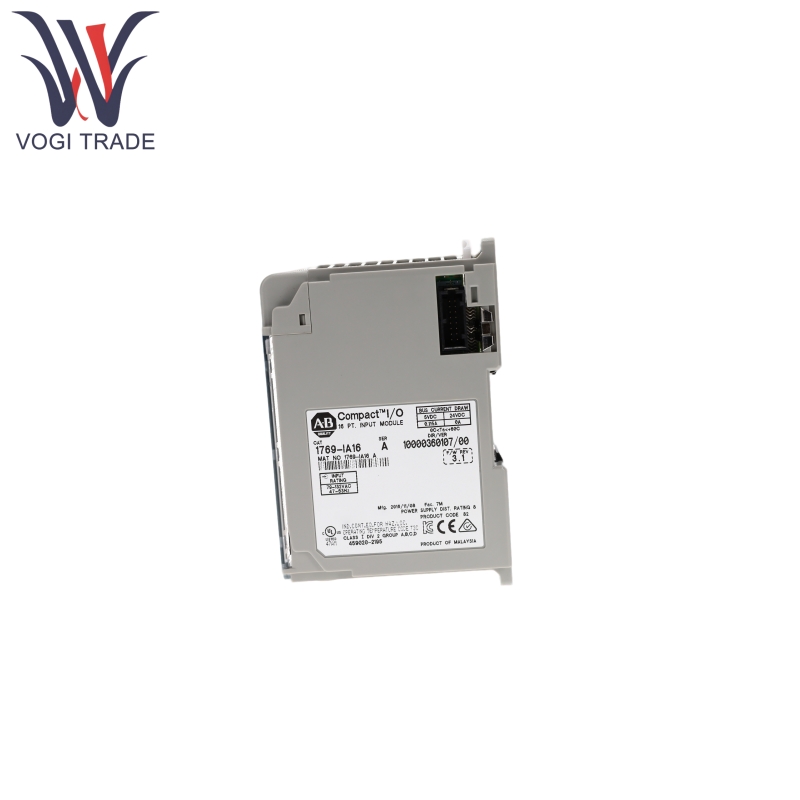

Brand: Allen Bradley Description: AC Digital Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 1769-IA16 is mainly used in industrial automation systems to collect 120V AC digital signals. Its compact design supports use with a variety of controllers and adapters, making it suitable for signal collection needs in small to medium-sized control scenarios.
|
Manufacture |
Allen Bradley |
|
Model Number |
1769-IA16 |
|
Ordering Number |
1769-IA16 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
12*10*4cm |
|
Weight |
0.4kg |
Product Features
Allen Bradley 1769-IA16 supports 16-point 120V AC input, with 16 points grouped together and sharing a common terminal (COM) internally, simplifying wiring.
Allen Bradley 1769-IA16 features built-in input filtering functionality to suppress false triggers caused by voltage transients, contact bounce, and electrical noise.

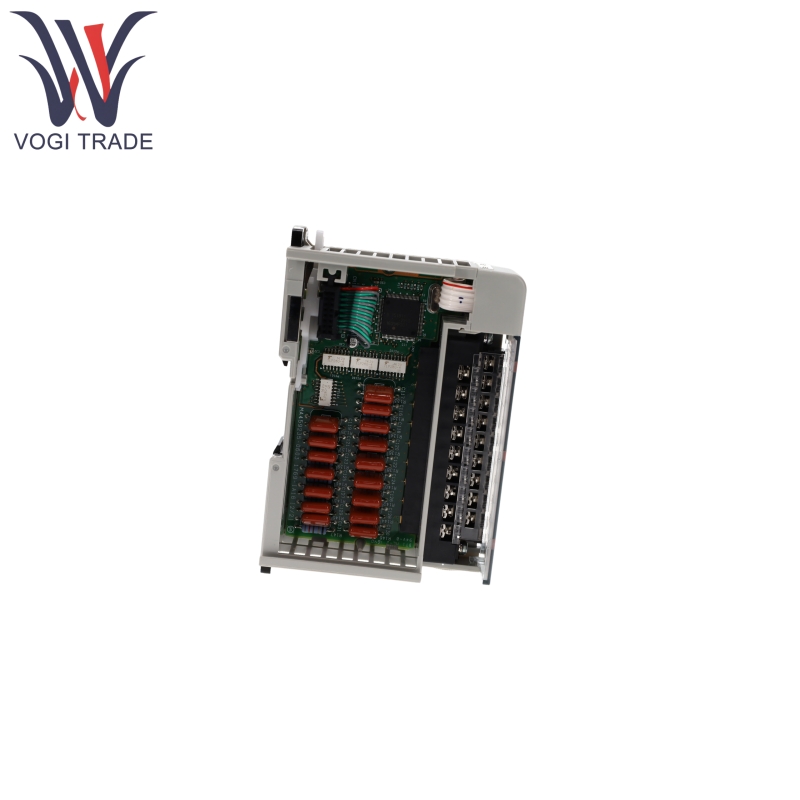

Allen Bradley 1769-IA16 employs an optical isolation design, isolating the logic circuit from the field circuit to protect the module from external electrical interference and transient damage.

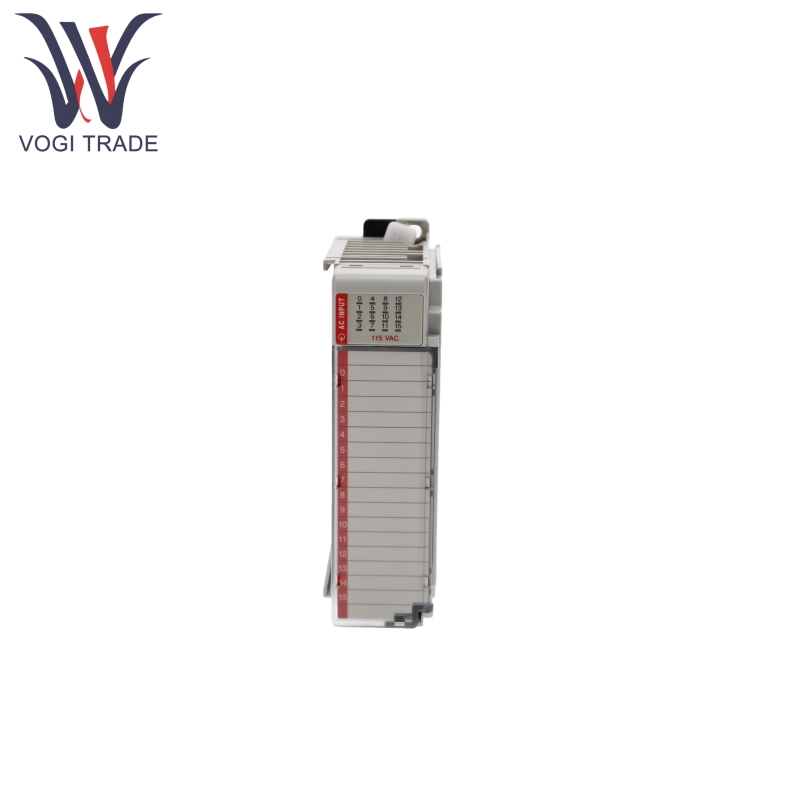

Each input point is paired with an independent indicator light, providing an intuitive display of the input signal's on/off status. The removable terminal block features a finger-safe cover, facilitating wiring and maintenance.
Allen Bradley 1769-IA16 supports DIN rail mounting or panel mounting. Modules are mechanically locked together via a tongue-and-groove structure, and integrated communication buses enable inter-module communication through removable bus connectors.
Product Working Principle
After the external 120V AC signal is connected to the module input terminal, Allen Bradley 1769-IA16 is processed by the internal filter circuit to remove noise and transient interference.
The optical isolation circuit isolates the high-voltage field signal from the low-voltage logic circuit to prevent interference or damage to the controller.
The processed signal is converted into a digital signal by the internal logic circuit, transmitted to the controller via the integrated communication bus, and the input status is displayed in real time by the indicator light.
Product Parameter
The following detail is for Allen Bradley 1769-IA16 AC Digital Input Module.
Input Specifications: 16 input points (16 points/group, internally connected commons)
Voltage Category: 100/120V AC
Operating Voltage Range: 79-132V AC, 47-63 Hz
Input Delay: On 20 ms, Off 20 ms
Current Draw: 115 mA @ 5.1V
Maximum Heat Dissipation: 3.30 W
Off-state Characteristics: Off-state voltage max: 20V AC, Off-state current max: 2.5 mA
On-state Characteristics: On-state voltage min: 79V AC, On-state current min: 5 mA (@74V AC), max: 12 mA (@120V AC)
Inrush Current: Max 250 mA (can be limited to 35 mA by connecting a 6.8 kW resistor in series, in which case the minimum on-state voltage must be ≥92V AC)
Input Impedance: 12 kW @ 50 Hz, 10 kW @ 60 Hz
Isolation Voltage: Input point to bus: 1517V AC for 1s or 2145V DC for 1s, Working voltage 132V AC (IEC Class II reinforced insulation)
