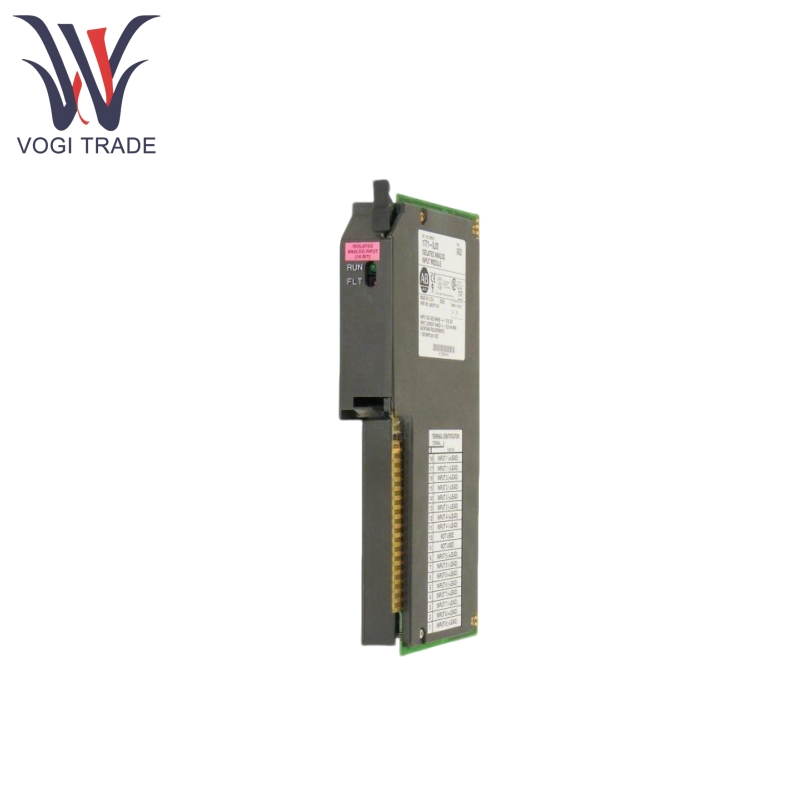

Brand: Allen Bradley Description: Analog Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 1771-IL is specifically designed for industrial automation systems to convert analog signals from external sensors, transmitters, and other devices into digital signals for processing by PLC controllers. The module supports multiple signal types and ranges and features high-precision conversion capabilities, making it suitable for industrial applications that require real-time monitoring of parameters such as temperature, pressure, and flow.
|
Manufacture |
Allen Bradley |
|
Model Number |
1771-IL |
|
Ordering Number |
1771-IL |
|
Catalog |
PLC-5 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
12*8*4cm |
|
Weight |
0.4kg |
Product Features
Allen Bradley 1771-IL provides 16 single-ended input channels, or 8 differential input channels. The Differential mode is suitable for high noise environment as the common mode interference will effectively be suppressed.
Allen Bradley 1771-IL has voltage input types is 1-5V DC, 0-5V DC, and -10-10V DC, current input types is 4-20mA, 0-20mA, -20-20mA, these input types covering the mainstream output range of industrial sensors.
Allen Bradley 1771-IL features 12-bit resolution, linearity of ±1 LSB, and accuracy of 0.1% of full scale, ensuring the accuracy of data acquisition. The conversion time is ≤25 milliseconds, meeting real-time control requirements.
Allen Bradley 1771-IL features optical isolation design to prevent external interference and includes overvoltage and overload protection functions, enhancing system reliability.
Each channel includes a LED indicator to indicate whether or not a signal is being input and the module contains diagnostic functions for detecting abnormalities in communication or system hardware.
Product Working Principle
Allen Bradley 1771-IL external analog signal is connected to the module via terminals, and the analog-to-digital converter inside the module converts the analog signal into a digital signal.
Allen Bradley 1771-IL optocoupler isolates the external circuit from the PLC controller to prevent interference; the input signal is filtered by software to reduce noise interference.
Allen Bradley 1771-IL converted digital signals are transmitted via the PLC-5 backplane bus to the controller for program logic processing. The module supports natural binary or BCD scaling formats, facilitating direct data usage.
Product Applications
Allen Bradley 1771-IL is capable of monitoring conveyor belt speed, robot joint positions and packaging machine loads, etc. for the purpose of the automatic regulation and-reverse production process control. In the food, drug and chemistry industry.
In the chemical, food, and pharmaceutical industries, Allen Bradley 1771-IL can monitor reactor temperature, pipeline flow, liquid level height, and other parameters to ensure process stability.
Allen Bradley 1771-IL voltage and current information from power systems or pressure signals from oil and gas pipelines to manage energy distribution and equipment operation.
Allen Bradley 1771-IL can monitor pH levels and turbidity in water treatment or pollutant concentrations in exhaust gas treatment to ensure compliance with environmental protection standards.
