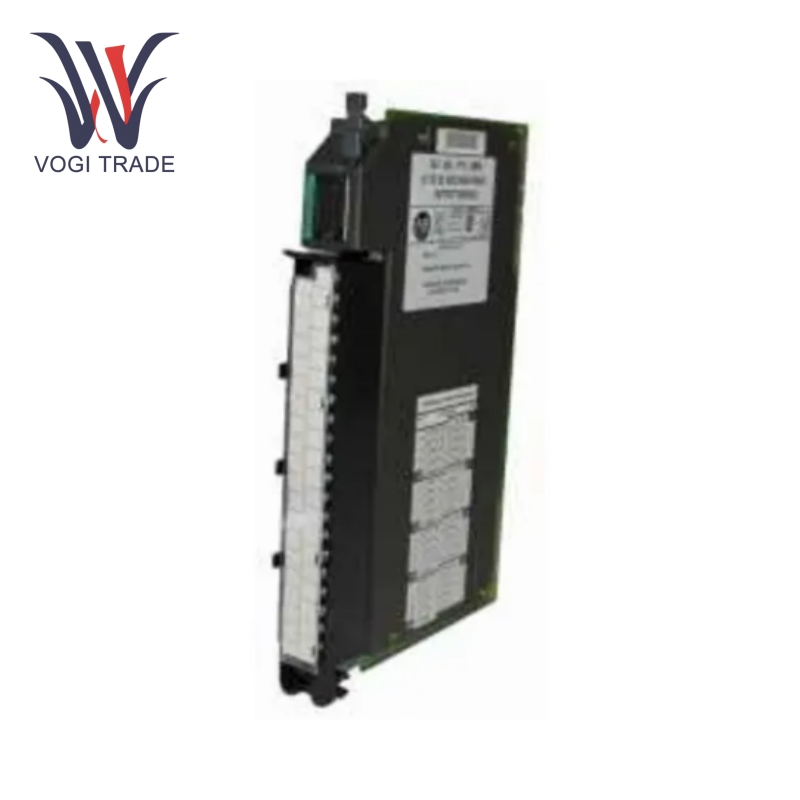

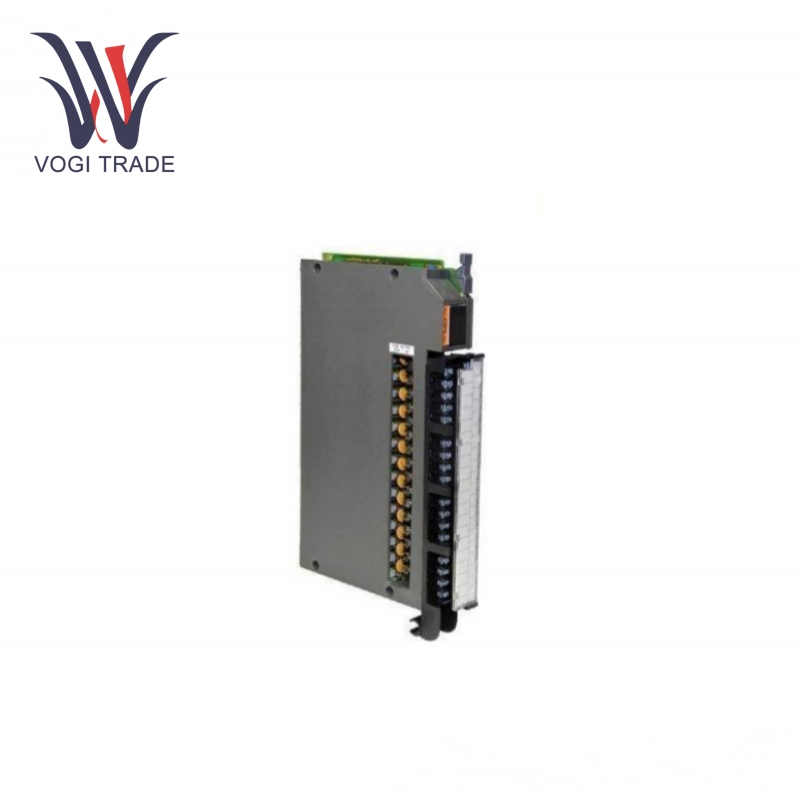

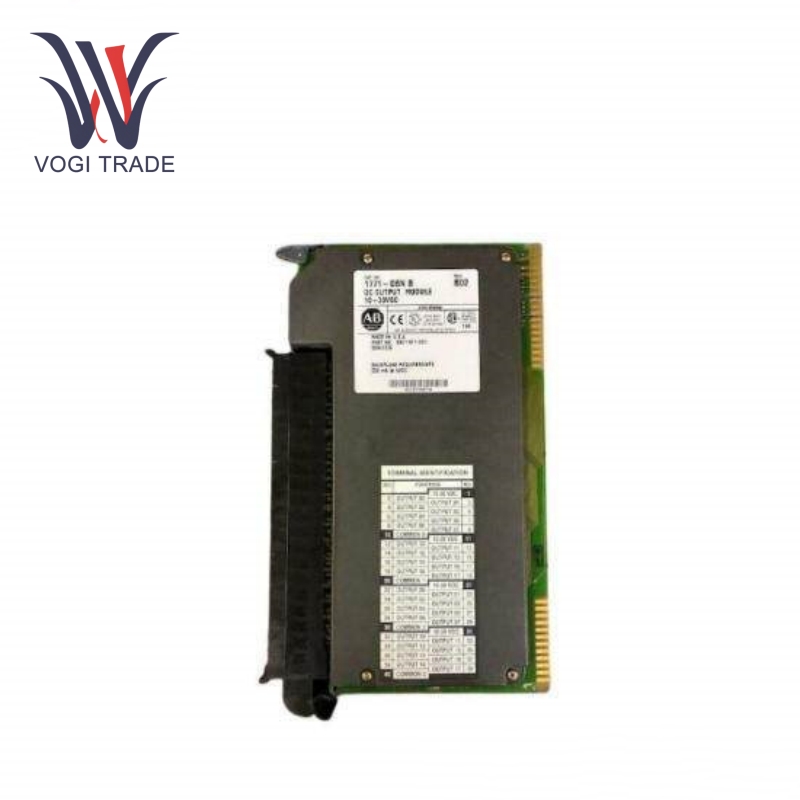

Allen Bradley 1771-OBN

Operating Parameters

Input Voltage: The rated operating voltage is 24 volts DC. This voltage is very important because it meets the standard power supply requirements of most industries, which reasonably ensures safe and reliable operation. It is able to accept a tolerance of about ±10% of the rated voltage, which allows it to handle minor fluctuations related to power supply problems well without excessive complexity. This also allows it to operate in situations where the power supply is not very stable.

Rated Current: The rated current must provide the maximum output if it is to have a good effect on load handling. The module provides up to 2A of current per output point. Therefore, it can drive a variety of industrial loads, solenoids, relays, and small motors. The current limiting function may also be particularly beneficial because it can provide overcurrent protection for the module and the devices connected to the module. Therefore, if a short circuit or high current occurs, the module may limit the outflow to a safe value by itself, taking care not to damage the circuit.

Response Speed: It has a significantly faster response time, which is very important for real-time control applications. Typical switch response times are measured in milliseconds and usually remain in the 2-5 millisecond range. This response allows the module to activate or deactivate equipment based on control signals from a programmable logic controller, PLC, or other more general control system. For example, consider a high-speed packaging line where actuators must be precisely timed relative to each other; this fast response allows for highly accurate and efficient control of the packaging operation.

Basic Functionality

Digital Output Capability: The basic functionality of the Allen Bradley 1771-OBN is to provide digital output signals. The outputs are given as I/O channels of either 8 or 16 channels, depending on the type of model selected. Each channel can independently turn the output on or off based on whether the output is a high or low signal level. This means that a high input based on a digital output can operate a solenoid valve or other connected device, while a low level indicates an off state. Therefore, industrial processes can be managed very accurately. For example, in an automated assembly chain, the module can effectively control robotic arm movements by sending out useful digital output signals from the actuators.

Diagnostics and Condition Monitoring: The module has its own diagnostic capabilities, it will constantly monitor its own operation, analyze the status of each connected load, and, if any open or short circuits or other abnormal conditions occur, it will sound an alarm or send a status signal back to the control system managing the operation. This helps reduce the time wasted on servicing issues and allows for quick identification of problems. In this regard, if a solenoid connected to one of the output channels fails, the module is fully capable of immediately sending a warning signal to the operator/control system so that the operator can quickly arrange for replacement or repair of the defective component.

Compatibility and Integration: The Allen Bradley 1771-OBN is designed to be highly compatible with other Allen Bradley products and industrial control systems. It can be easily integrated into PLC-based control architectures. It communicates with the PLC using standard communication protocols such as Data Highway Plus or Ethernet/IP. This seamless integration enables the module to receive control commands from the PLC and send status and diagnostic information back to the PLC, enabling coordinated control of multiple devices and processes within an industrial plant.

Applications

Manufacturing: The Allen Bradley 1771-OBN has found widespread use in manufacturing plants controlling different production equipment. Such use can be used to control conveyor belts, where the digital output signal will start and stop the motor driving the conveyor belt. Other uses may include CNC machine tools and their tool changing mechanisms - the module sends signals to activate solenoids that enable clamping and unclamping of tools, all to ensure accurate and reliable tool changes throughout the machining operation.

Automation and Robotics: It combines to operate actuators in robotic systems. Digital outputs can control grippers on robotic arms and enable accurate pick-up and placement of objects. It can also transmit mechanical motion to robot joints by activating associated motors or hydraulic actuators. As a result, robots can perform with greater precision and repeatability，Used in assembly, welding, and material handling operations.

Process Control: In the chemical, food, and other process industries, the control of valves and pumps is where it is used. In this sense, for example, it might be a chemical plant that can control the flow of a chemical reaction process by opening or closing valves. Or, a food processing plant might find that the Allen Bradley 1771-OBN can be used to control the operation of pumps to move liquids such as milk or juice between processing stages.
