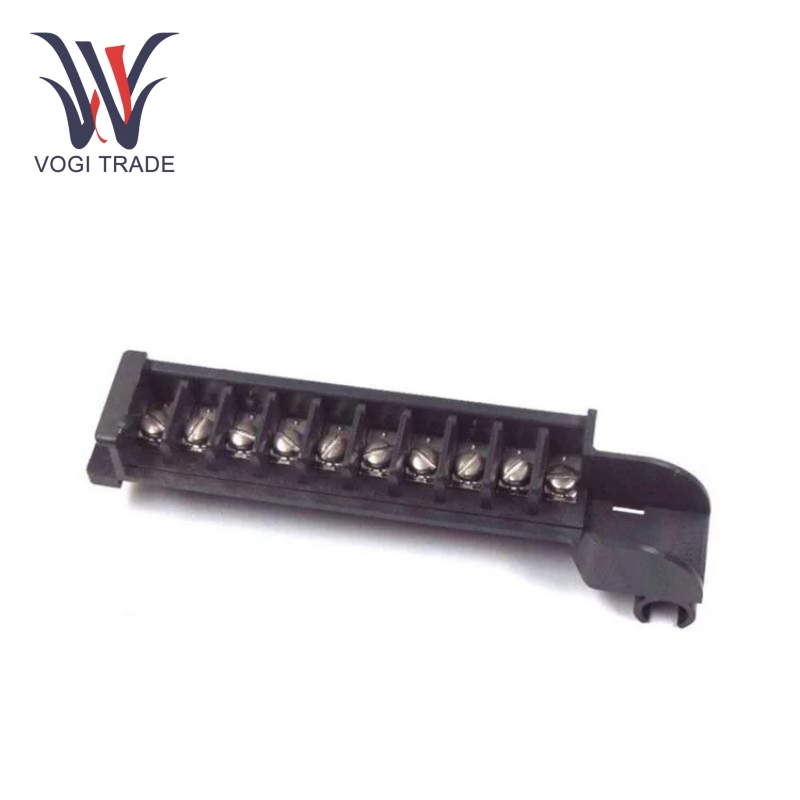

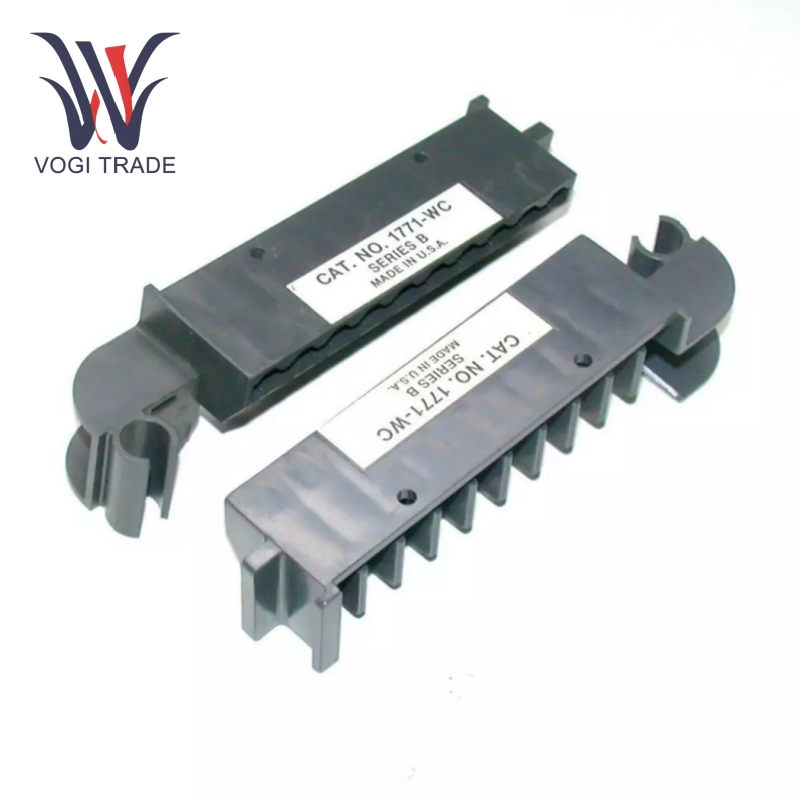

Allen Bradley 1771-WC

Operating Conditions

Power Supply: The Allen Bradley 1771-WC typically operates within a set voltage range. For example, the voltage specification could be 120/240V AC to ensure compatibility with common industrial power supplies. Power consumption is also to ensure that the power supply for a given load remains efficient and does not cause any type of overload in an industrial environment.

Ambient Temperature: The device operates properly within a temperature range of -20°C to 60°C. Within these huge temperature limits, it can provide the right service, from being used in a refrigerated setting to working in a hot production station.

Storage Temperature: The Allen Bradley 1771-WC can be powered up in a temperature range of -40°C to 85°C. It helps maintain the integrity of the device when not in use and when certain environmental conditions change during storage.

Product Features

Communication Capabilities: The Allen Bradley 1771-WC is a great communication interface. It can communicate with Allen Bradley devices and components that run a complete control system. It supports Data Highway plus (DH+) and thus can operate as a flexible interface where data between different levels within an industrial network can exchange information. Various information functions such as sensor readings, control signals and status updates can be easily transmitted.

Data Conversion and Processing: It is capable of converting data formats from one form to another. Its purpose is to provide processed analog signals from sensors in the form of digital data that can be processed by the PLC. It also performs some data processing tasks such as filtering and scaling to make the data ready for further decision-making and analytical processes in the control system.

Remote Monitoring and Control: The communication capabilities of the Allen Bradley 1771-WC conveniently allow remote monitoring and control of industrial processes. Operators can access the above equipment from the control room or even remotely through a network link and view the status of the relevant equipment, make parameter adjustments and initiate control operations. This ultimately increases the flexibility and efficiency of operations.

Application Areas

Manufacturing: The Allen Bradley 1771-WC is an instrument widely used in manufacturing plants to monitor and control production lines. They can be integrated with machines such as conveyors, robotic arms, and assembly stations; for example, in an automobile factory, it coordinates the movement of automobile parts on the assembly line. It also performs performance monitoring on individual machines, detects possible failures or deviations from normal operation, and sends timely maintenance alerts.

Process Industries: It has a huge impact on process industries such as chemical and food processing. It will control the flow of materials in all these other industries while monitoring the temperature and pressure inside reactors and tanks through real-time process adjustments. It is responsible for controlling the dosage of chemicals and maintaining suitable reaction conditions, thereby ensuring the quality and safety of the production process in chemical plants.

Power Generation: Individual sub-sequences of power plants are controlled and monitored. It participates in communication with generators, transformers, and switchgear. It can assist in controlling the output voltage and frequency of generators; monitor the status of distribution equipment; and allow for more efficient integration of the power grid.
