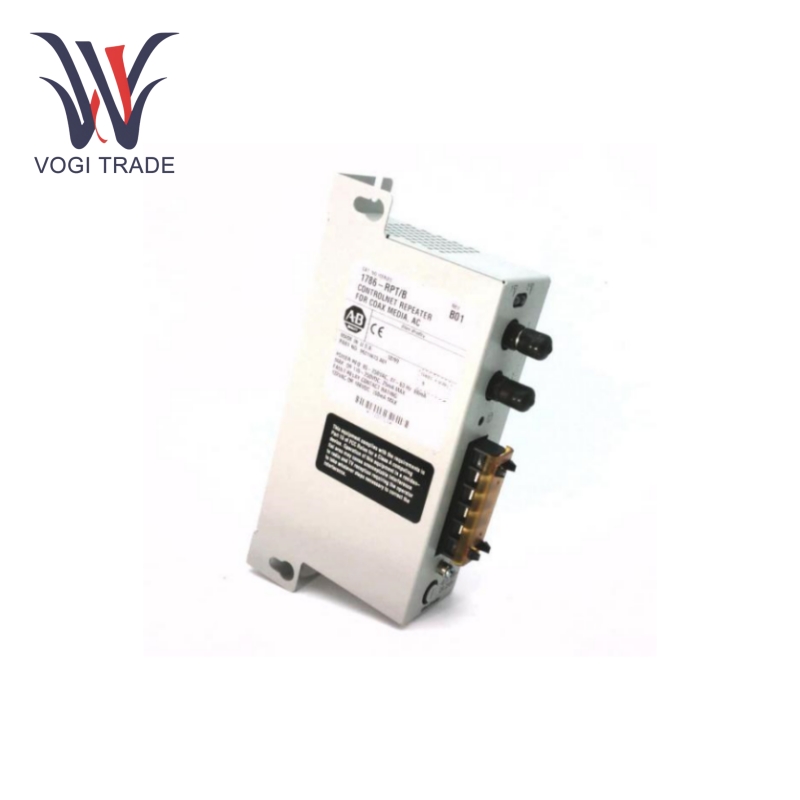

Allen Bradley 1786-RPT

Working Parameters

Power supply: The operating voltage is usually within a certain range, such as 10 - 30 VDC, designed to be compatible with the power supply system described in the industrial field. This means that the device will have a stable power input to operate normally.

Number of ports: The Allen Bradley 1786-RPT also has a specific number of ports, which are usually multiple communication ports. For example, it may come with two or more ports to connect different devices, such as PLC, HMI or other industrial network components. These protocols include DeviceNet and support connection to industrial automation architecture.

Product Function

1786-RPT repeater: The main function of the Allen Bradley 1786-RPT is to act as a repeater. It listens to the signal on one segment of the network, then regenerates and rebroadcasts it to the second segment. It is used to extend the network distance and break through the limitations of cable length and signal attenuation. Its role in amplifying and cleaning up the signal helps to maintain the integrity of the data over long distances, thereby enabling reliable communication between devices that are far apart in large industrial plants.

Supported network topologies: It should support a variety of network topologies. Whether your network uses a linear bus topology or a more complex star or tree topology, the Allen Bradley 1786-RPT can adapt and meet your requirements. This will allow you to build a network topology that fits the needs of each industrial use case. It helps achieve load balancing and minimizes the possibility of single points of failure.

Diagnostic and monitoring capabilities: The Allen Bradley 1786-RPT is not only a treatment device, but also plays a monitoring role. It can ensure the quality of the signals passing through it, monitor errors and/or anomalies, and provide alarms or status messages. Many 5G private networks also include extensive monitoring capabilities that constantly monitor active signals, enabling early detection of any problems that may arise, which can have a significant impact on the industrial ecosystem.

Applications

Automotive manufacturing: It enables smooth interaction between PLCs that oversee robotic arms, conveyor systems, and quality inspection stations. It enables the entire manufacturing process to be coordinated from part assembly to final inspection and packaging of the car.

Food and beverage processing: In food processing facilities, it connects sensors, actuators, and control systems. For example, it communicates with temperature and pressure sensors in the sterilization process and with programmable logic controllers (PLCs) that control the operation of sterilization equipment. In these types of facilities, food is processed under monitoring and in appropriate conditions that meet quality and safety standards.

Power Generation: The Allen Bradley 1786-RPT can communicate between various subsystems related to power generation, such as turbine control systems, generator monitoring systems, and the overall plant control network. It also plays a role in transmitting important information about power generation, allowing operators to accurately monitor and control plant operations and maintain a reliable power supply.
