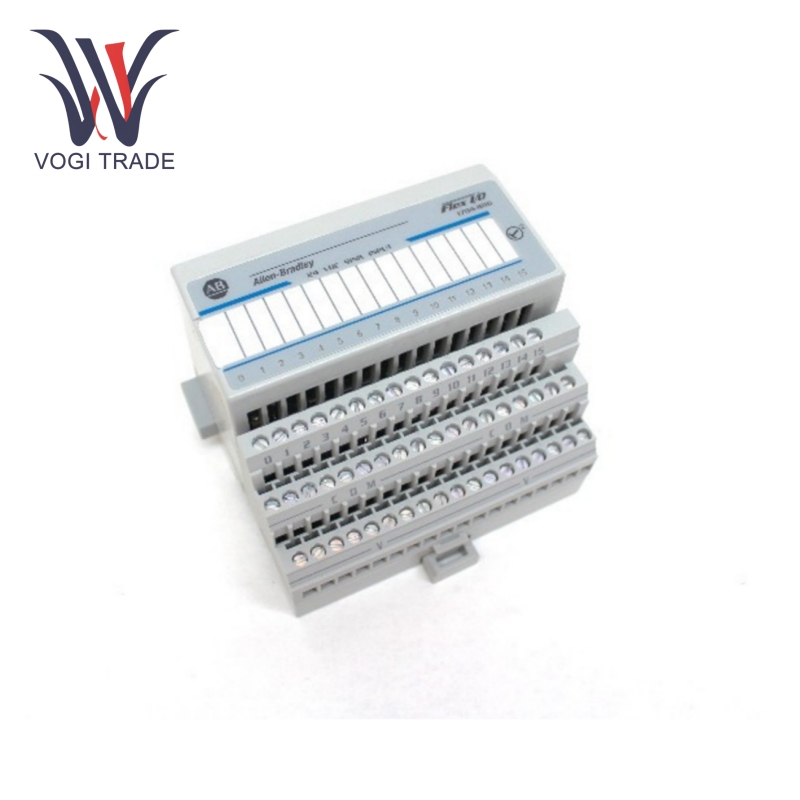

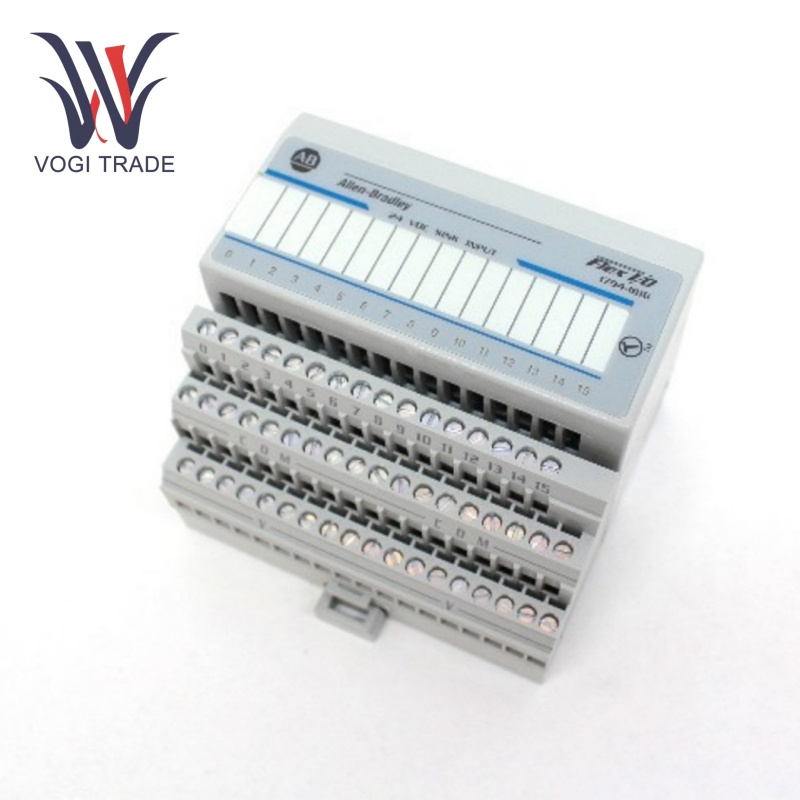

Allen Bradley 1794-IB16

Operating Parameters

Input Voltage Range: Designed to withstand an average input voltage range, it is suitable for most industrial applications. Input Voltage: The input voltage can be a range, which makes them versatile and allows them to be compatible with a large number of sensors and input peripherals. For example, the input may accept voltages between 10 - 30 VDC, enabling them to interface with a wide range of industrial sensors that operate within this voltage range.

Current Consumption: The Allen Bradley 1794-IB16 consumes relatively low current, which is very useful in situations such as large industrial control systems where a large number of components will be used. Balancing the power supply load is necessary, resulting in better power distribution. This typical nominal current consumption is designed for performance and low power consumption, using only a few mA of power per input channel when idle and a few mA more during active signal processing.

Response Time: The Allen Bradley 1794-IB16 has a fast response time, which is very important for real-time control applications. Its response time can be as short as a few milliseconds, which allows it to immediately notice changes in sensor input signals and report the information to the control system for immediate action. This fast response means that processes in the plant can be quickly corrected to keep running smoothly without the risk of failure or delay.

Product Features

Digital Input Acquisition: The main function of the Allen Bradley 1794-IB16 module is to receive digital input signals from different field devices. It has 16 input channels that are able to read binary signals such as on/off states from switches, proximity sensors and other digital sensors. The signals are then transmitted to the respective programmable logic controller (PLC) or alternative control system for advanced analysis and control decisions.

Signal Conditioning: It uses signal conditioning to fully and reliably identify input signals. The uses of these functions include filtering out electrical noise and converting input signals into a format that the control system can use. This improves the data received by the control system and minimizes the risk of errors or false readings in the control process.

Self-Diagnostics: The Allen Bradley 1794-IB16 includes self-diagnostics that monitor its health and input signal status. It is able to identify problems such as open circuits, short circuits, or excessive voltage levels on input channels. When a problem is detected, it allows a warning or error message to be generated so that maintenance personnel can quickly identify and resolve the problem and minimize industrial process downtime.

Applications

Automotive Manufacturing: The Allen Bradley 1794-IB16 is also used in assembly by automotive manufacturers to monitor the status of various sensors on the assembly line. For example, it can accept inputs from limit switches that tell the location of a part, or from presence sensors that confirm that a component is on a conveyor. The control system uses this information to ensure that automotive parts are assembled and sequenced correctly.

Food and Beverage Processing: It can be used to monitor the operation of equipment in food processing plants, such as pumps, valves, and conveyors. For example, the digital input of a sensor indicates whether a pump is running, a valve is open or closed, or a conveyor is moving. This allows precise control of the production process and monitoring of food safety and quality.

Packaging Industry: The Allen Bradley 1794-IB16 is used on packaging lines to collect sensor signals to detect the presence of a product, the orientation of packaging materials, or the status of packaging equipment. It is essential to coordinate the packaging process so that the product is packed correctly and in a timely manner.
