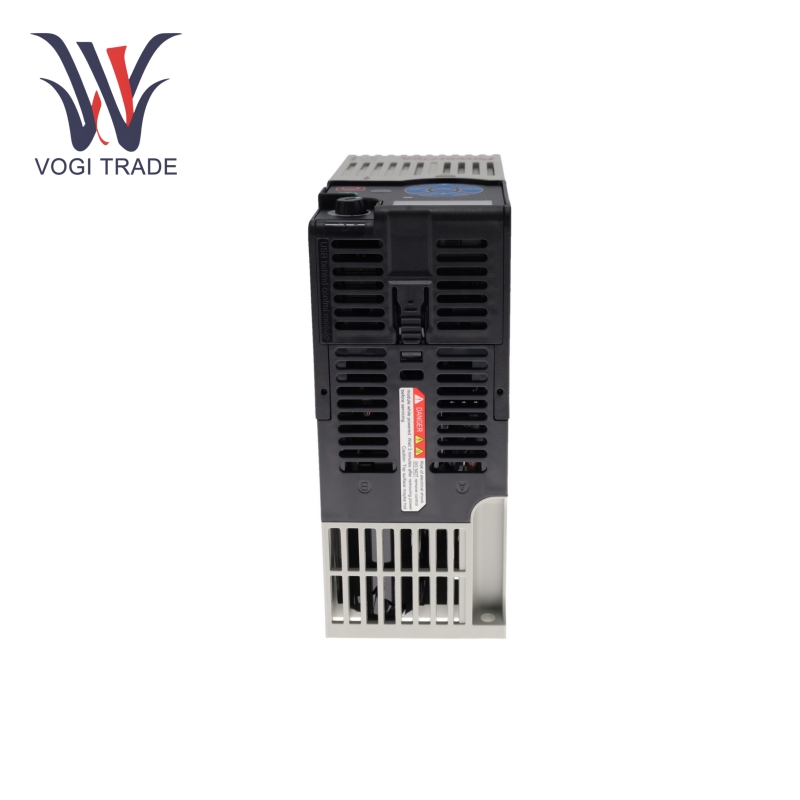

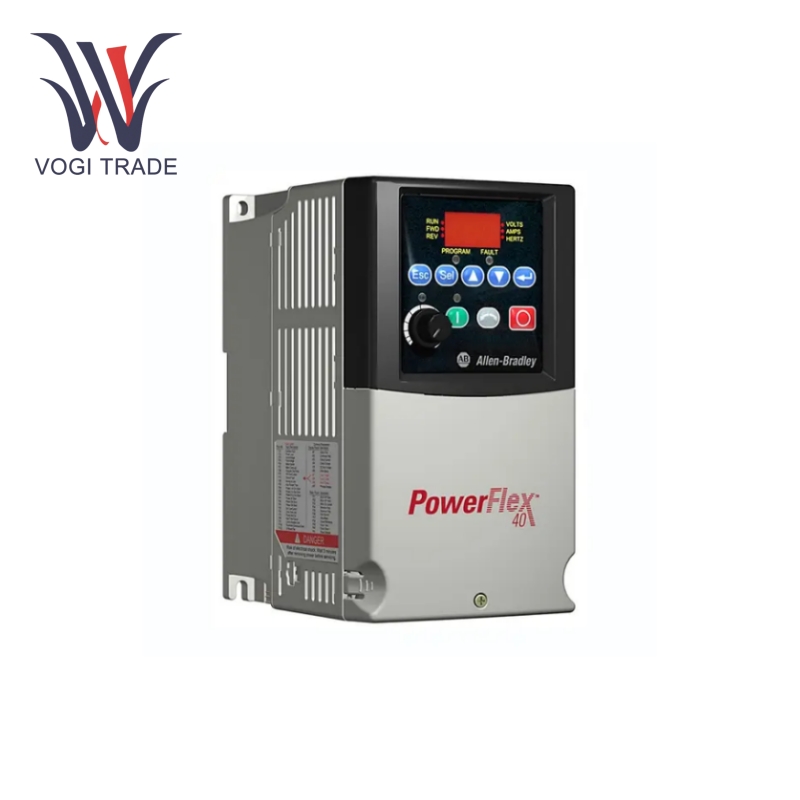

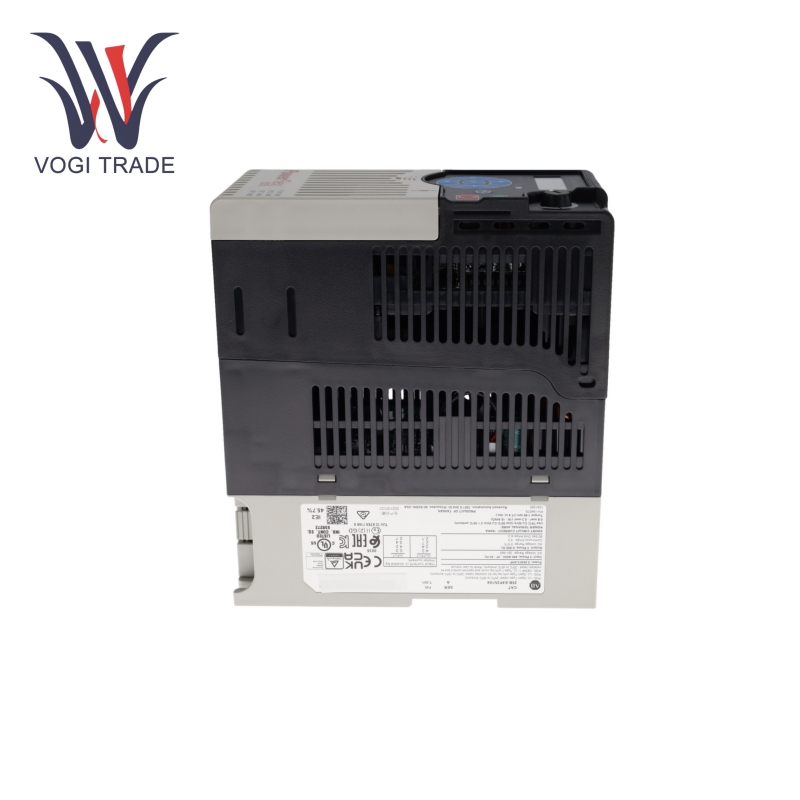

Allen Bradley 25B-E4P2N104

Technical Parameter

Voltage: 600 Vac, three-phase input and output.

Output Current: 4.2 A.

Power Rating: 2.2 kW 3 HP.

Frequency: 50 - 60 Hz.

Enclosure Type: IP20, NEMA 1 / open type.

Mounting Type: Panel mount.

Connection Type: Fixed terminal block.

Output: 1 analog, 2 digital.

Power Factor: 0.98.

Function Features

Versatile Motor Control Options: The Allen Bradley 25B-E4P2N104 provides several different methods of motor control targeting volts per hertz control, sensorless vector control, and closed loop velocity vector control, leading to precise control of different types of motors to enable optimization in their use based on specific application needs.

Advanced Communication Capability: Allen Bradley 25B-E4P2N104 facilitates different protocols for communication, including Embedded Ethernet/IP, DeviceNet, Modbus, Profibus, which can easily connect the device to the industrial network and communicate with other devices and systems for enhanced control and monitoring.

Modular Design: Because the control module and power modules are removable, configuration and installation may occur at the same time, reducing setup time. Besides, Allen Bradley 25B-E4P2N104 has one standard control module that can be adopted across the entire power range, providing consistency and ease of use.

Energy Savings Functions: It ffers permanent magnet motor control which enables energy efficiency improvements that reduce concomitant costs and lead to significant savings through energy conservation in industrial processes.

Safety Functions: The Allen Bradley 25B-E4P2N104 is provided with features such as safe torque-off, certified at PLD / SIL 2 Cat 3 .This removes rotation power from the motor, while power is kept on at the drive, thus enabling faster turn-up times after a safety system demand thereby promoting the safety and reliability of the operations.

Enhanced Overload Protection: The Allen Bradley 25B-E4P2N104 features a dual overload regime, mainly suited for drives in excess of 15 hp / 11 kW normal duty and heavy overload, thus preventing damage to the drive and connected equipment during transient overloads to improve overall system reliability and lifespan.

Quiet Operation: The adjustable PWM frequency to 16 kHz makes its operation quieter, so as not to cause noise pollution in the working environment, an important measure in noise-sensitive areas.

Applications

Automobile Industry: Allen Bradley 25B-E4P2N104 is used in automotive assembly lines to control robotic arms, conveyor belts, and other automated machines. It is equipped with precise control of the movements, leading to accurate assembly and high-quality manufacture.

Food and Beverage Industry: It is applied in food processing and packaging machines such as mixers, fillers, and palletizing machines.

Textile industry: Handling machines used to produce fabrics, to name a few, spinning frames, looms, and knitting machines. All that comes with the knowledge of the production line upstream cut, ensuring that product quality stays within the stipulated exercise.

Electrical industry: Allen Bradley 25B-E4P2N104 is capable of electrical components GMP in production or testing, shall be set accordingly in the high-speed operation of the spindle to accomplish precise control of the motors, effectively handling and processing sensitive parts.

Water and wastewater treatment: In pumps, fans, and other equipment in water treatment plants and wastewater treatment systems, for metering flow and speed changes for attendant system efficiencies and performance of treatment processes.

General Mechanic: Allen Bradley 25B-E4P2N104 is able to control working and maximize energy efficiency/overall performance in a whole range of general mechanical equipment such as compressors, fans, and conveyor systems.
