Brand: Allen Bradley Description: PanelView Plus 7 Graphic Terminal Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Allen Bradley 2711P-T7C22D9P is primarily used in industrial automation systems to enable human-machine interaction. The terminal communicates with controllers via the EtherNet/IP network, supporting real-time monitoring of the operational status of machines or processes. It also receives control commands entered by operators via a touchscreen, making it widely applicable in industrial scenarios requiring efficient human-machine interaction.
|
Manufacture |
Allen Bradley |
|
Model Number |
2711P-T7C22D9P |
|
Ordering Number |
2711P-T7C22D9P |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8471609000 |
|
Dimension |
22*18*8cm |
|
Weight |
2kg |
Product Features

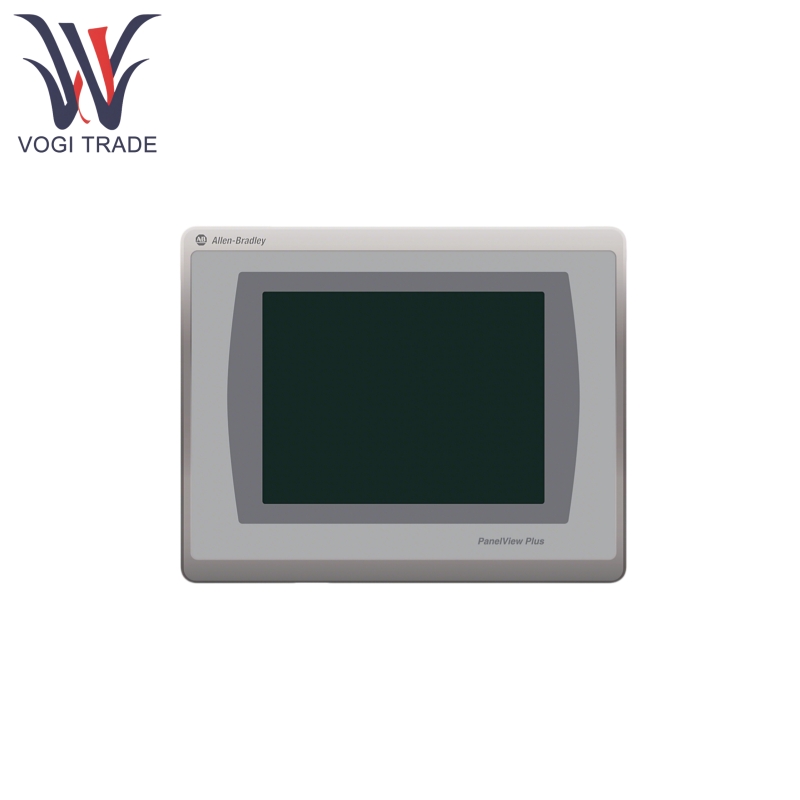

Allen Bradley 2711P-T7C22D9P features a 6.5-inch TFT color touchscreen (analog resistive type), supporting an operating force of 100 grams, with a press lifespan of up to 1 million cycles, offering intuitive and convenient operation.

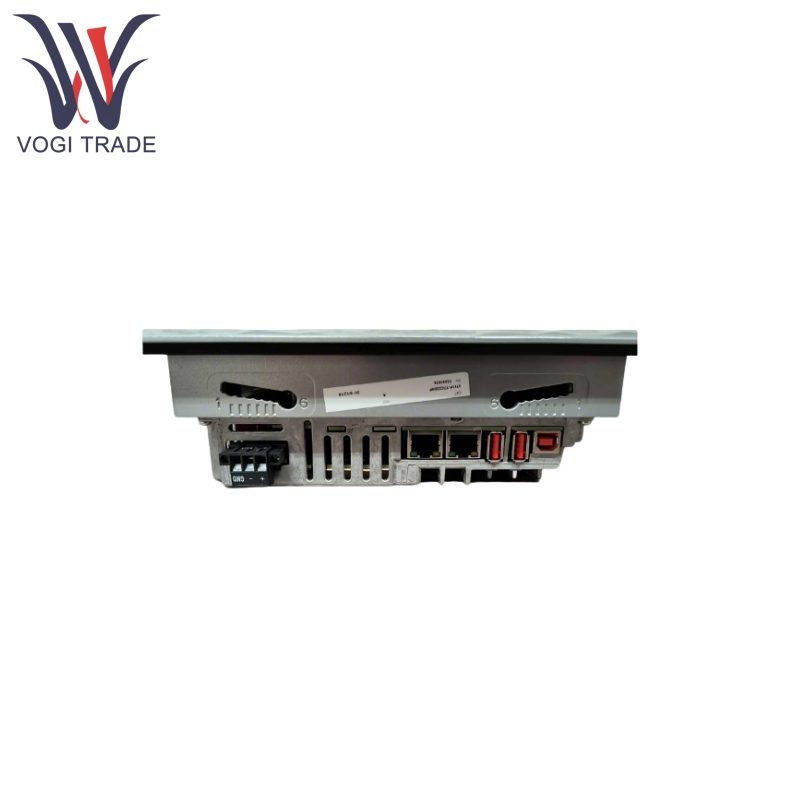

Allen Bradley 2711P-T7C22D9P is equipped with 2 10/100Base-T Ethernet ports, supporting Device Level Ring (DLR), linear, or star network topologies, ensuring stable data transmission with the controller.
Allen Bradley 2711P-T7C22D9P includes 1 SD card slot (supporting the 1784-SD series of storage cards) and a USB interface (Series B includes 1 USB 3.0 and 1 USB 2.0 host port), facilitating external storage and device connectivity.
Allen Bradley 2711P-T7C22D9P offers a conformal coating option for use in corrosive environments; supports wide temperature operation (0-55°C) and complies with multiple industrial certifications.
Allen Bradley 2711P-T7C22D9P includes a real-time clock (CR2032 battery backup, lifespan ≥4 years) for recording and tracing device operational status.
Product Using Principle
Allen Bradley 2711P-T7C22D9P can obtain real-time operating data of the machine/process from the controller and display it intuitively on the touch screen in the form of animated graphics, text, etc.
When the operator inputs control commands via the touch screen, the terminal converts the commands into signals that comply with the controller protocol and sends them to the controller for execution.
Allen Bradley 2711P-T7C22D9P can record key data via an SD card or built-in storage, supporting offline analysis and traceability.
Product Parameter
Below detail is for Allen Bradley 2711P-T7C22D9P PanelView Plus 7 Graphic Terminal
|
Category |
Details |
|
Display Specifications |
6.5-inch TFT color screen with a resolution of 640×480 VGA (18-bit color for Series A, 24-bit color for Series B) Backlight life is ≥50,000 hours (half-brightness at 40°C) |
|
Input Voltage |
24V DC (rated), voltage range 18-30V DC |
|
Power Consumption |
Series A: Maximum 50W (2.1A@24V DC) Series B: Maximum 29W |
|
Operating System |
Series A: Windows CE 6.0 (with extended features) Series B: Windows 10 IoT Core |
|
Storage and Memory |
Series A: 512MB RAM + 512MB storage Series B: 4GB RAM + 19.87GB storage |
|
Environmental Parameters |
Operating temperature 0-55°C (certified range +5-55°C) storage temperature -25-70°C relative humidity 5-95% (non-condensing) |
|
Protection Rating |
NEMA/UL Type 12, 13, 4X, IP66 (UL classified) |
