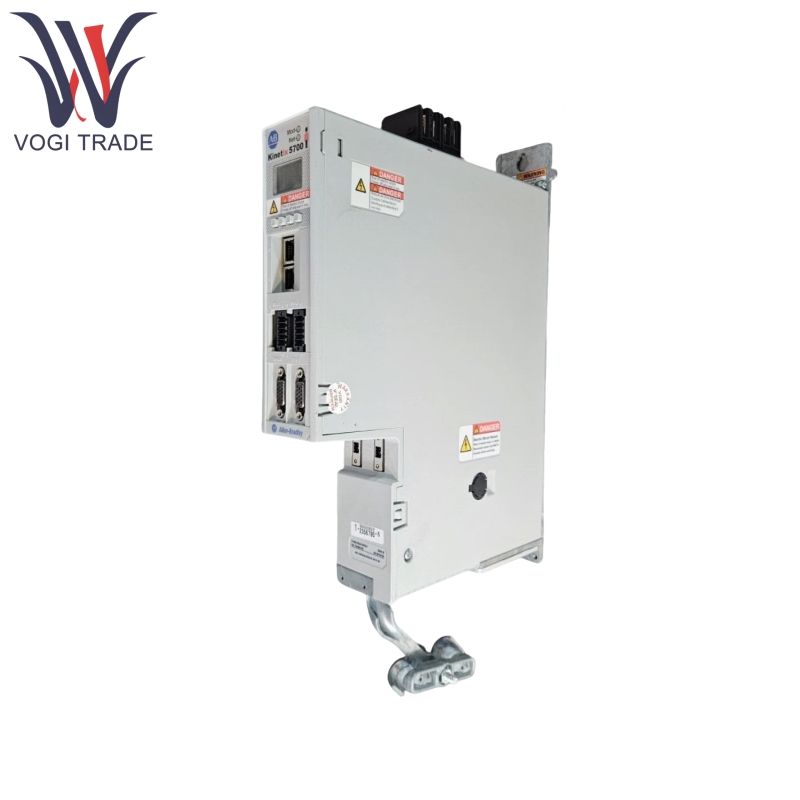

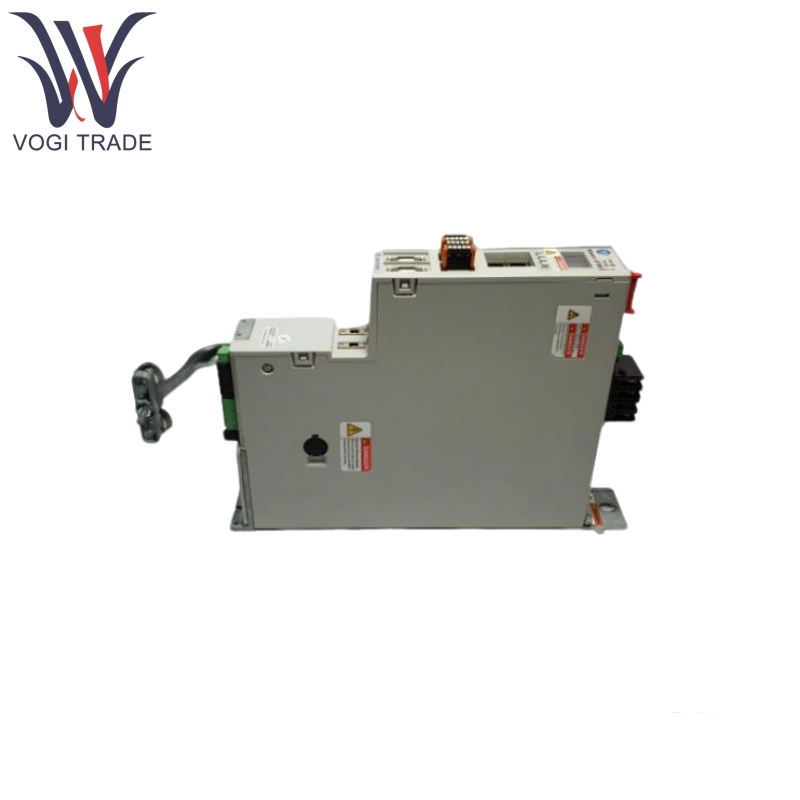

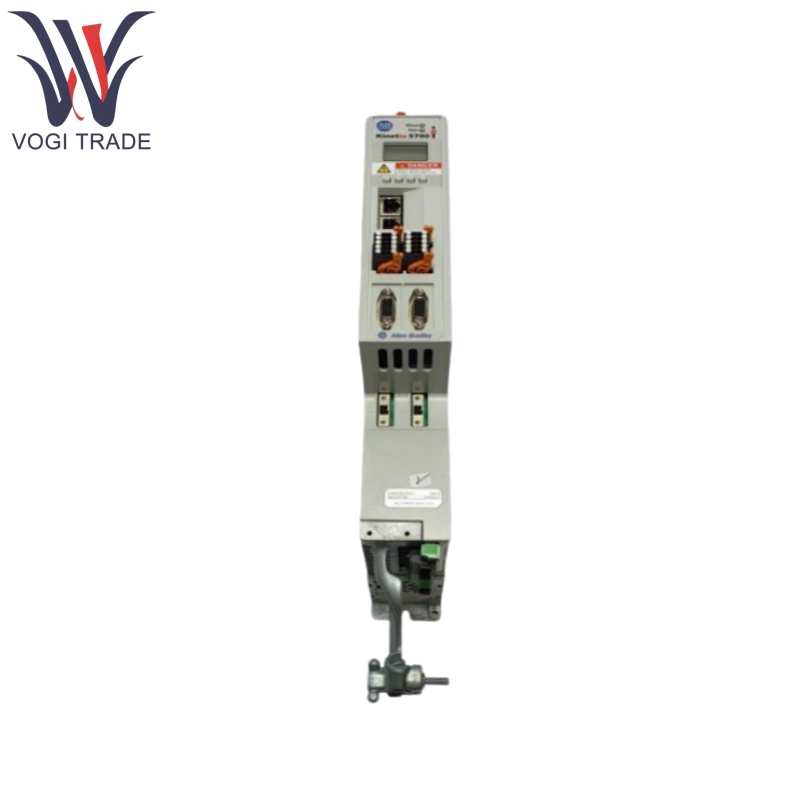

Allen Bradley 2198-D012-ERS3

Product Features

1. Allen Bradley 2198-D012-ERS3 support multiple encoder feedback types via dedicated connectors:

DSL Feedback compatible with Stegmann Hiperface digital-servo-link (DSL) encoders through the 2-pin motor feedback (MF) connector.

Hiperface/Incremental/EnDat Feedback compatible with Hiperface, incremental, and Heidenhain EnDat encoders via the 15-pin universal feedback (UFB) connector.

2. Allen Bradley 2198-D012-ERS3 compatible with Kinetix VP (VPL, VPF, VPS, VPC-Bxxxxx-Q), MP-Series, and HPK-Series rotary motors, and linear actuators (MPAS, MPAR, MPAI) and linear motors (LDC-Series).

3. Allen Bradley 2198-D012-ERS3 complies with PLe and SIL CL3 safety standards, ensuring safe operation in industrial environments.

Product Applications

Allen Bradley 2198-D012-ERS3 is suitable for industrial automation scenarios that require high-precision dual-axis cooperative control, typical applications include:

Packaging machinery:

Multi-axis synchronized drive for carton forming, labeling machines, and filling equipment to ensure packaging accuracy and speed.

Material handling:

robot joints, conveyor belt sorting system, to achieve accurate positioning and speed control.

Machine Tools & Machining:

Feed axis control for small lathes and milling machines to support high speed cutting and precision positioning.

Semiconductor and Electronics Manufacturing:

High-precision motion axes for PCB board handling and chip packaging equipment to meet micron-level control requirements.

Safety Sensitive Scenarios:

Compliant equipment in food and beverage, pharmaceutical production, SIL 2/PLe certified to ensure the safety of personnel and equipment.
