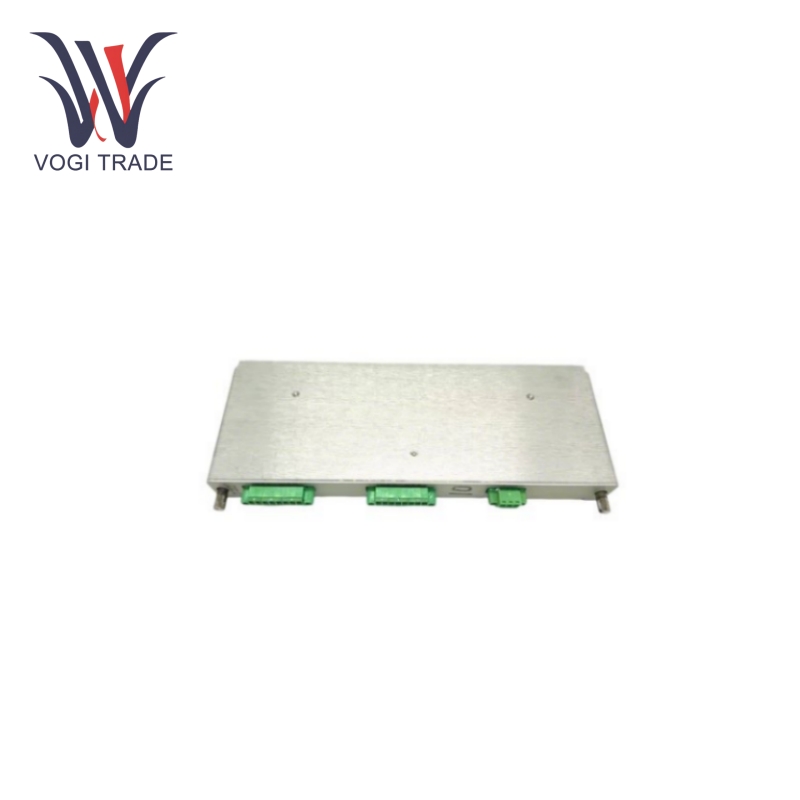

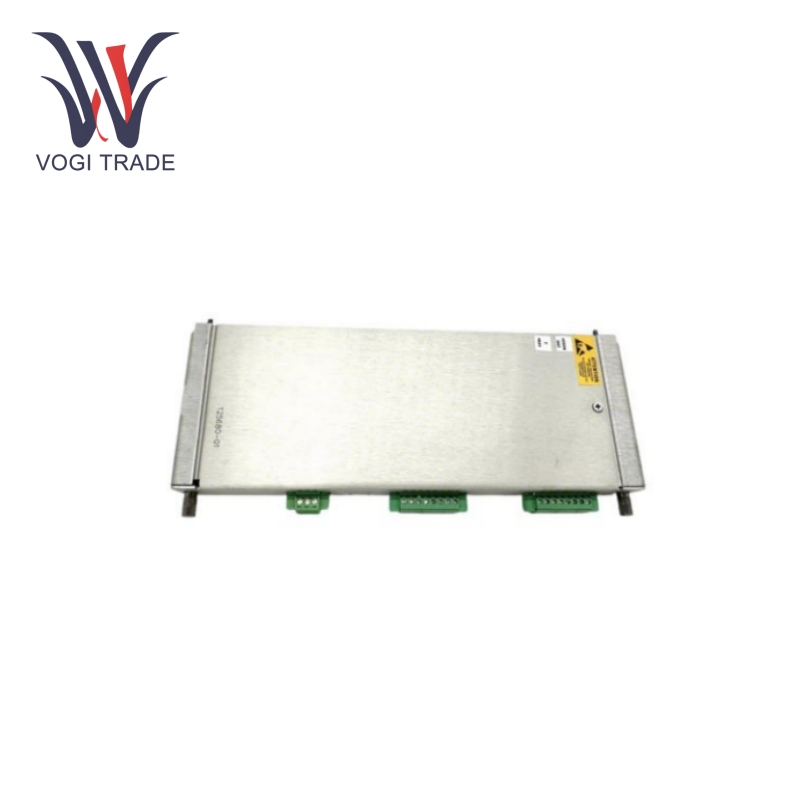

Bently Nevada 125680-01

Functions

Signal acquisition and processing: Bently Nevada 125680-01 is capable of accurately acquiring sensor input signals. It can collect data from various sensors in the industrial field and conduct preliminary processing to convert the raw data into a form that can be further analyzed and used.

Alarm indication: Bently Nevada 125680-01 has an alarm function. There are different alarm levels indicated, such as a solid yellow line for the alert/alarm 1 and a solid red line for the danger/alarm 2. These alarm setpoints are clearly displayed on the bar graph, allowing operators to quickly identify abnormal situations.

Channel accuracy verification: Operators can use a general test procedure to verify the accuracy of each channel. For example, when calibrating or testing a gas, the reading can be verified within the 3500 configuration software to ensure that it is within ±2% of the concentration of the test gas applied. If the reading is not within this range, recalibration is required.

Usage

Installation: Before using the Bently 125680-01, it needs to be correctly installed in the industrial control system. Ensure that the module is securely fixed to the rack according to the manufacturer's installation guidelines.

Configuration: After installation, Bently Nevada 125680-01 needs to be configured through the relevant software. This includes setting parameters such as alarm thresholds, communication protocols, and data acquisition frequencies to ensure that the module can work properly in the specific industrial environment.

Monitoring and maintenance: During the operation of the system, regular monitoring and maintenance of the module are necessary. Check the working status of the module in real-time, including signal acquisition accuracy, alarm function normalcy, and communication stability. If any faults or abnormalities are found, timely troubleshooting and maintenance should be carried out.
