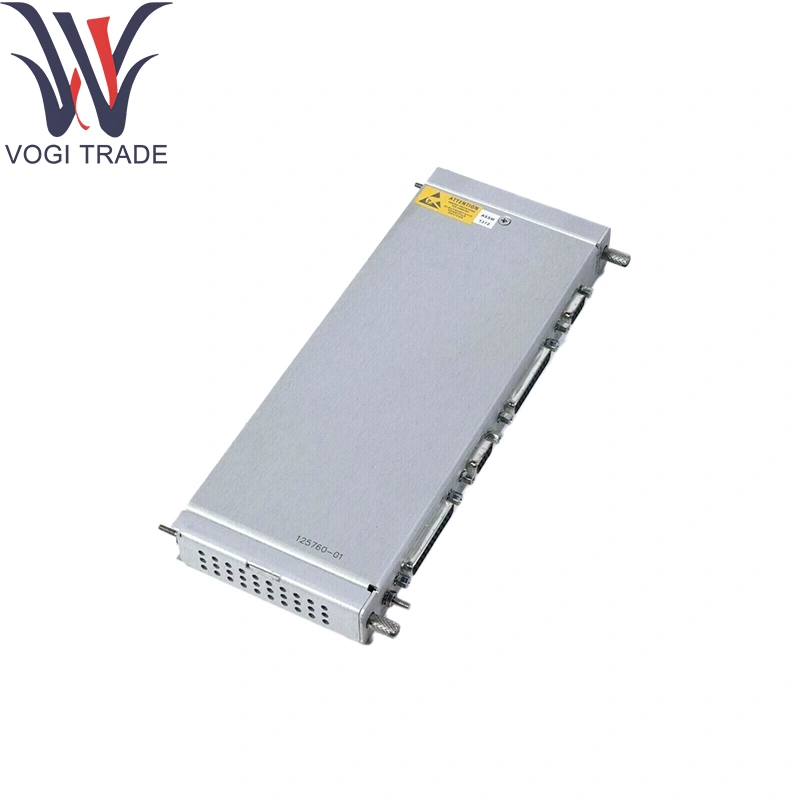

Bently Nevada 125760-01

Ordering Information

3500/20-AA-BB-CC

A: Rack Interface Type

0 1   Standard RIM (Use for standard monitoring applications)

0 2   TMR RIM (Use only for application that requires a Triple Modular Redundant Configuration)

B: Type of I/O Module

0 1   I/O module with built-in modem

0 2   I/O module with RS232/RS422 interface

C:Agency Approval Option

0 0   None

0 1   CSA/NRTL/C

Technical Parameters

Power Requirements: 24 V DC via rack backplane, 500 mA max for Bently Nevada 125760-01

Operating Temperature: –40 °C to +70 °C

Storage Temperature: –55 °C to +85 °C

Humidity: Up to 95 % RH, non-condensing

Backplane Interface: Dual 50-pin card-edge connectors (in/out) via Bently Nevada 125760-01

Host Ports:

Ethernet (10/100Base-T) for remote diagnostics/configuration

RS-232 serial console for local CLI access

Common-fault open-collector output

Product function

Bently Nevada 125760-01 provides rack coordination, health-monitoring, and data routing for all digital backplane modules. Manages configuration storage/distribution and aggregates alarm/diagnostic tags for host retrieval. Monitors module responsiveness and asserts system-fault outputs during failures. Supports optional TMR voting logic.

Application Areas

Turbine & Compressor Control Rooms: Central rack controller using Bently Nevada 125760-01 for machinery protection

Process-Plant Skids: Embedded monitoring in packages featuring Bently Nevada 125760-01

OEM Machinery Panels: Intelligent interfaces with Bently Nevada 125760-01

Safety-Instrumented Systems: System-fault signals for ESD logic

Test & Calibration Benches: Portable rack interface for module testing
