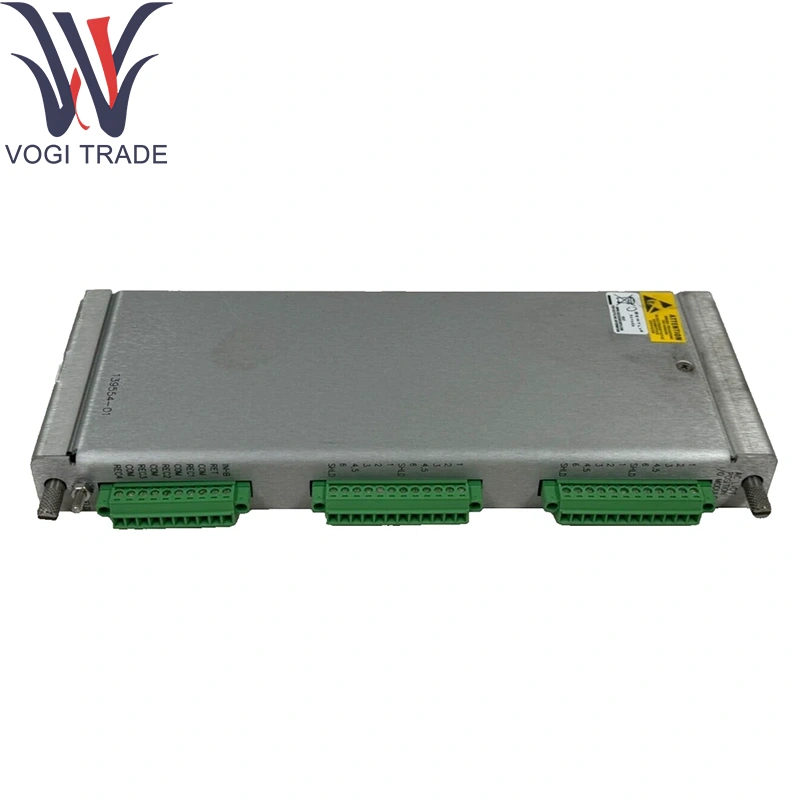

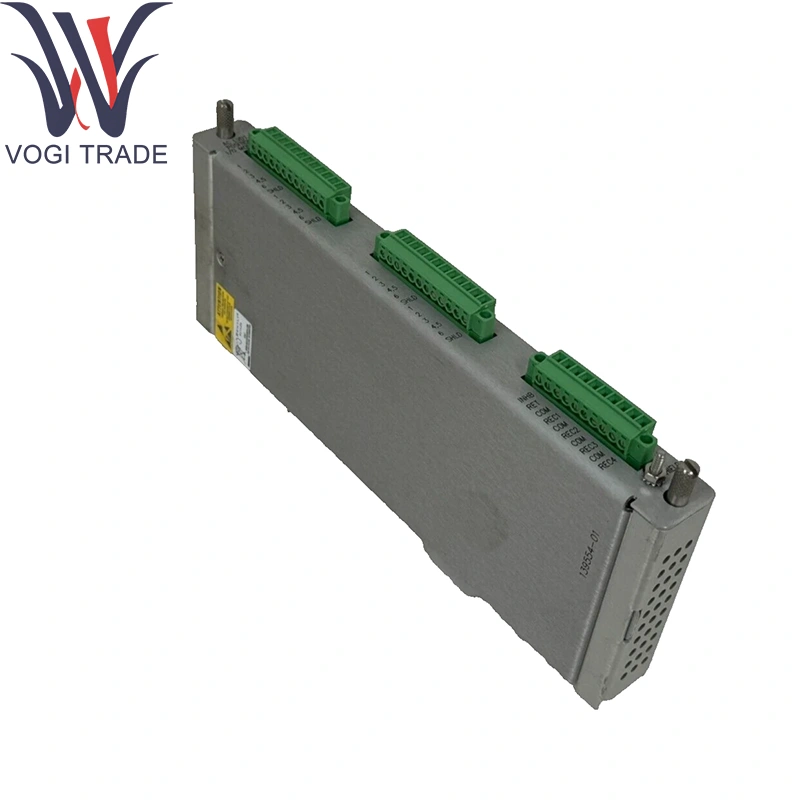

Brand: Bently Nevada Description: 135137-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 12 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 135137-01 Designed for precision shaft-axial and valve-position monitoring on turbines, compressors, pumps, and reciprocating engines.
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/45-01-00 |
|
Ordering Number |
135137-01 |
|
Catalog |
3500/45 |
|
Description |
AC LVDT Position I/O Module |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
241 mm x 24.4 mm x 99.1 mm |
|
Weight |
0.4 kg |
Ordering Information
Position Monitor
3500/45-AA-BB
A: I/O Module Type
01 Position I/O Module with Internal Terminations (Proximitor, RPT, DC LVDT)
02 Position I/O Module with External Terminations (Proximitor, RPT, DC LVDT)
05 AC LVDT Position I/O Module with Internal Terminations
06 AC LVDT Position I/O Module with External Terminations
B: Agency Approval
00 None
01 cNRTLus (Class 1, Division 2)
02 ATEX / IECEx / CSA (Class 1, Zone 2)
Technical Parameters
Channels: 4 independent LVDT inputs (differential, 4-wire) for Bently Nevada 135137-01
Excitation: 3 Vrms at 4 kHz per channel (internal oscillator) in Bently Nevada 135137-01
Input Ranges (software-selectable):
±1 mm, ±2 mm, ±5 mm, ±10 mm spans
Conversion & Resolution: 16-bit ΔΣ ADC, simultaneous sampling; ~ 0.002 % of span
Accuracy: ± 0.1 % of full-scale after field calibration
Sampling Rate: 1 kHz per channel, simultaneous
Isolation: 1 kV channel-to-chassis and channel-to-channel
Diagnostics: Sensor-presence detection, open/short-circuit, over-range alarms per channel
Power Consumption: ≤ 6 W from 24 V DC backplane
Environmental Ratings:
Operating Temp: 0 °C to +70 °C
Storage Temp: –40 °C to +85 °C
Humidity: up to 95 % RH, non-condensing
Product function
Bently Nevada 135137-01 provides stable AC excitation to LVDTs, eliminating external oscillators. Demodulates differential outputs, linearizes position signals, and digitizes data with 16-bit resolution. Compares positions against programmable limits for over-travel alarms and continuously monitors loop integrity.
Application Areas
Turbine Thrust Bearing Monitoring: Real-time axial position tracking using Bently Nevada 135137-01 to prevent rubs
Reciprocating Rod & Piston Position: Stroke/dwell-time monitoring in engines/compressors
Valve Position Feedback: Precise control for process valves
Generator End-Winding Expansion: Axial movement monitoring under thermal growth
Condition-Based Maintenance: Trend-analysis via Bently Nevada 135137-01 for predictive service scheduling
