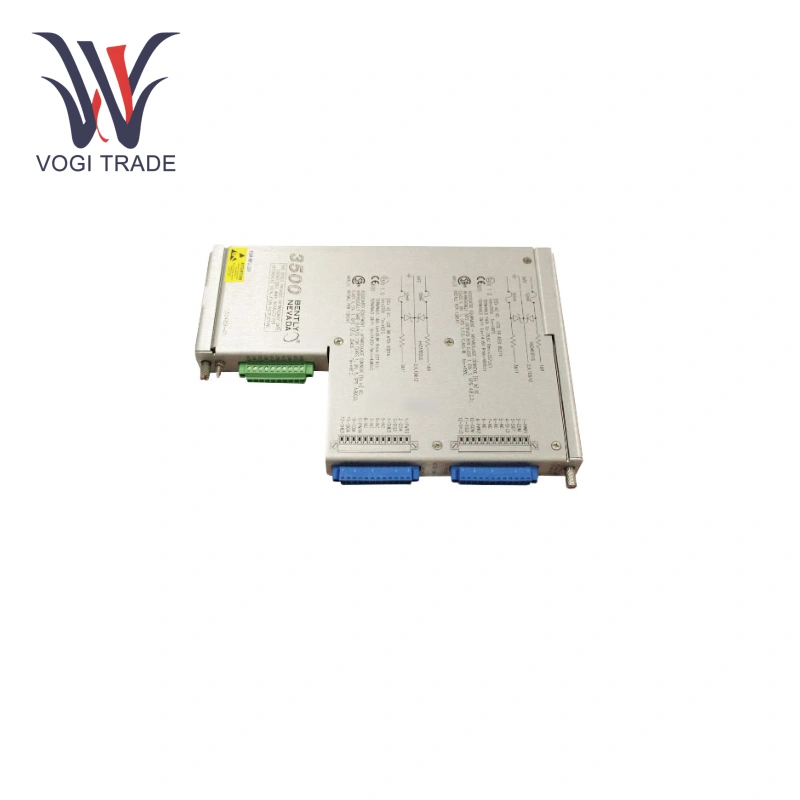

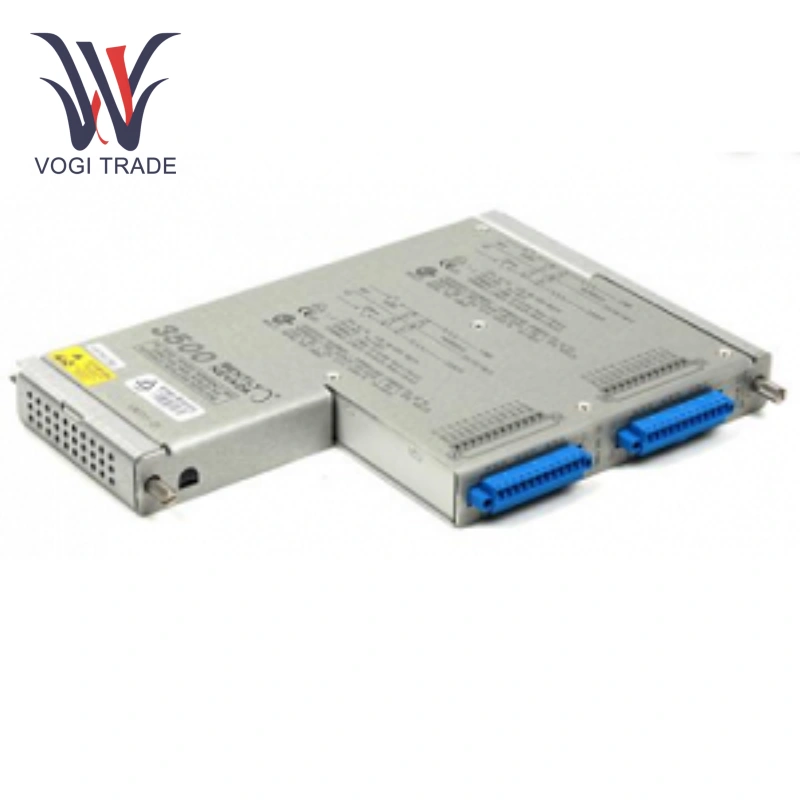

Brand: Bently Nevada Description: I/O Module with Internal Barriers Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 135489-01 is a four-channel input/output (I/O) module for the 3500 Series Vibration Monitoring System. The module features an integrated safety barrier, providing an intrinsically safe interface for connecting to sensor systems in the 3500 Machinery Protection System, ensuring explosion-proof safety for use in hazardous areas.
|
Manufacture |
Bently Nevada |
|
Model Number |
135489-01 |
|
Ordering Number |
135489-01 |
|
Catalog |
3500 |
|
Country Of Origin |
America |
|
HS CODE |
8538900000 |
|
Dimension |
25*25*10CM |
|
Packing Dimension |
30*28*12CM |
|
Weight |
2 kg |
Product Overview
Signal Processing Parameters
Proximity/Acceleration: 30kHz bandwidth, 3% amplitude accuracy at 10kHz, -15/+10% at 30kHz; -11° phase accuracy at 10kHz.
Velocity Sensor: ±1% amplitude accuracy.
Temperature: ±1°C temperature accuracy at +25°C, ±15°C over the full operating temperature range; -11° phase accuracy at 10kHz.
Storage Temperature: -40°C to +85°C.
Humidity: 95% non-condensing for normal operation.
Product Features
Bently Nevada 135489-01 seamlessly integrates with the Bently Nevada 3500 Series vibration monitoring system and easily adapts to various proximity, acceleration, and velocity sensors.
Bently Nevada 135489-01 optimized circuit design effectively reduces electrical noise and interference, ensuring accurate and reliable data collection.
Applications
Bently Nevada 135489-01 used to monitor vibration, displacement, and other parameters of equipment such as compressors, pumps, and steam turbines, preventing production accidents and environmental pollution caused by equipment failure.
Bently Nevada 135489-01 used for condition monitoring of equipment such as generators and steam turbines, timely identifying hidden dangers such as shaft imbalance and bearing failure.
Bently Nevada 135489-01 monitoring rotating machinery such as rolling mills and blast furnace fans optimizes equipment operation and improves production efficiency.
Compatibility and System Integration
Compatible Monitor: Requires the 3500/42M Proximitor Seismic Monitor.
Rack Slot: Occupies one full-height rear slot.
Firmware Requirements:
3500/42M Firmware Version ≥ Revision B
3500/01 Software Version ≥ 2.61
Jumper Configuration: Same as the Prox/Velom and Shaft Absolute module jumper layout.
