Brand: Bently Nevada Description: Transient Data Interface I/O Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Xiamen Bently Nevada 146031-01 190093-01 is mainly responsible for data communication and system integration functions, connecting the 3500 monitoring system and Bently Nevada System 1 machinery management software to realize real-time data transmission and remote diagnosis. Its core role is to transmit vibration, temperature, pressure and other data collected by the sensors to the host computer via Ethernet, and at the same time support the input and output of system control signals to ensure the efficiency of equipment condition monitoring and fault warning.
|
Manufacture |
Bently Nevada |
|
Model Number |
146031-01 |
|
Ordering Number |
190093-01 |
|
Catalog |
- |
|
Country Of Origin |
United States (US) |
|
HS CODE |
8538900000 |
|
Dimension |
24*24*10cm |
|
Weight |
0.6kg |
Product Features

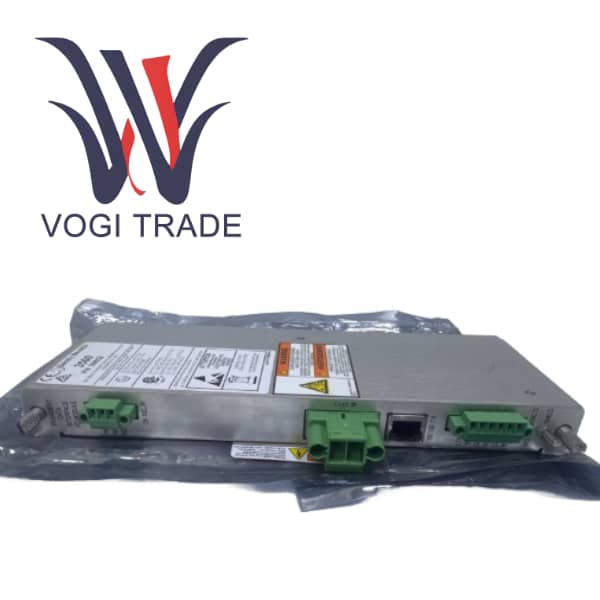

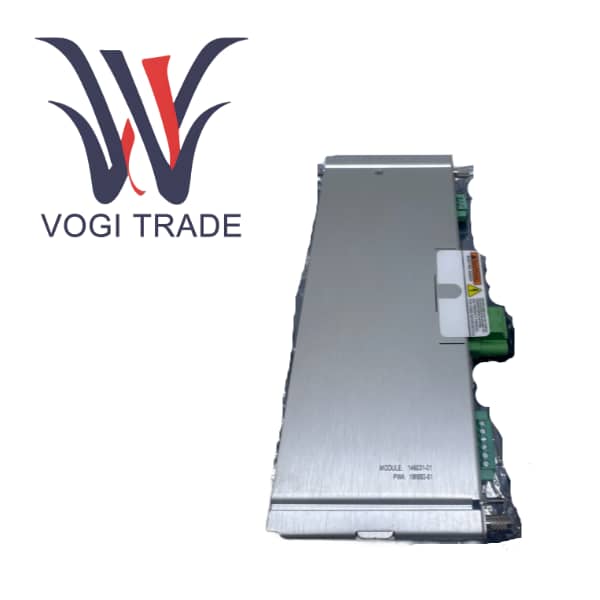

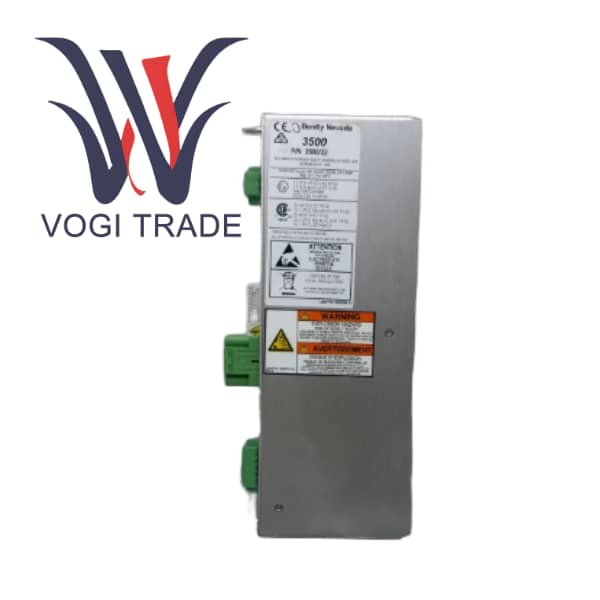

Bently Nevada 146031-01 PWA190093-01 is a 10Base-T/100Base-TX Ethernet I/O module, specifically designed for 3500/22M Transient Data Interface (TDI) systems as a critical communication interface. This module supports seamless integration of the Bently Nevada 3500 mechanical monitoring rack with higher-level systems (such as GE's System 1® software) via standard Ethernet. As the physical layer and data link layer, it can transmit important mechanical health data (including steady-state values, transient waveforms and alarm information) from the monitoring system to the asset management platform for real-time analysis and diagnosis.
As a core component of the 3500 system, this module is installed in a full-height rear slot dedicated to the rack and is crucial for any installation that requires network-based data acquisition and remote configuration.
Specifications & Parameters
Communications Standard 10Base-T and 100Base-TX Ethernet, conforming to IEEE 802.3.
Data Rates 10 Mbps and 100 Mbps, auto-sensing and auto-negotiating
Protocols Supported BN Host Protocol (for communication with 3500 Configuration, Data Acquisition, and Display Software)
BN TDI Protocol (for communication with GE System 1® software)
Physical Connection Connector Single RJ-45 port
Cable Type Standard shielded Category 5 Ethernet cable
Max Cable Length 100 meters (328 feet)
Status Indicators (LEDs) Integrated into the main TDI module front panel (OK, TX/RX, CONFIG OK, TM).
Environmental Limits Operating Temperature -30 °C to +65 °C (-22 °F to +149 °F)
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Humidity 95% non-condensing
Physical Dimensions Height x Width x Depth 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
Weight 0.20 kg (0.44 lbs)
Rack Space Requires 1 full-height rear slot.
Hazardous Area Approvals Available with appropriate rack configuration (e.g., CSA/NRTL for Class I, Div 2; ATEX/IECEx for Zone 2).
Product features
The dual-speed Ethernet interface can flexibly connect to traditional 10Mbps and modern 100Mbps network infrastructure, and supports automatic speed negotiation and duplex mode.
The robust and durable industrial design is specifically designed for reliable operation in harsh industrial environments, featuring a wide operating temperature range and complying with industrial-grade electromagnetic compatibility immunity and radiation standards EN 61000-6-2, EN 61000-6-4.
Seamless system integration, supporting two-way communication, can be used for configuration (using BN host protocol) and continuous data acquisition (using BN TDI protocol), ensuring that 3500 racks can be fully integrated into the factory's monitoring network.
Support for comprehensive data types facilitates the transmission of all key data collected by TDI, including:
Static values, such as overall vibration and temperature
Synchronous and asynchronous dynamic waveforms
Initiation/sliding of transient data
Alarm and event data
Simplified cabling uses universal RJ-45 connectors and standard CAT5e cables. Compared with dedicated cabling systems, it simplifies installation, spare parts management and troubleshooting.
Comparison with Similar Products
|
Feature |
146031-01 (10/100Base-TX Copper) |
146031-02 (100Base-FX Fiber Optic) |
|
Media |
Copper (Twisted Pair) |
Fiber Optic (Multimode) |
|
Max Distance |
100 m (328 ft) |
2000 m (6560 ft) |
|
Noise Immunity |
Good (with shielded cable) |
Excellent (inherent immunity to EMI/RFI) |
|
Ground Loop Isolation |
No |
Yes |
|
Connector |
RJ-45 |
MT-RJ |
|
Typical Use Case |
Local network cabinets within control rooms, short-distance runs in electrically quiet environments. |
Long-distance runs between buildings, routes through areas with high electromagnetic interference, or where electrical isolation is critical. |
|
Relative Cost |
Lower |
Higher |
