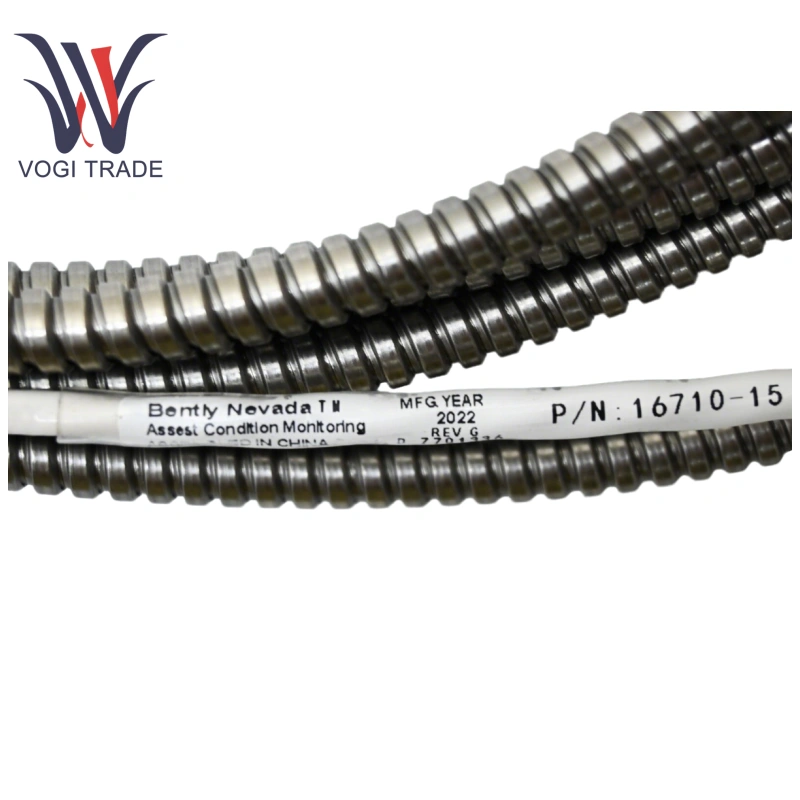

Brand: Bently Nevada Description: Interconnect Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 16710-15 is an industrial-grade cable designed specifically for the 3500 Series Machinery Monitoring and Protection System. Its core function is to facilitate signal transmission and connectivity between system components. This shielded cable is resistant to electromagnetic interference and withstands harsh industrial environments, ensuring stable transmission of monitoring signals.
|
Manufacture |
Bently Nevada |
|
Model Number |
16710-15 |
|
Ordering Number |
16710-15 |
|
Catalog |
3500 |
|
Country Of Origin |
America |
|
HS CODE |
8537101190 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
17*17*7CM |
|
Weight |
0.5kg |
Technical Specifications
Cable Type: Shielded signal connection cable, pre-installed with a dedicated connector on one end.
Cable Specifications: Conductor: Stranded tinned copper, insulation: heat-resistant polyvinyl chloride (PVC), shield: copper mesh (≥90% coverage).
Length: Standard 1.5 meters.
Operating Temperature: -40°C to +85°C.
Environmental Resistance: Relative Humidity: 5% to 95% (non-condensing).
Connector Compatibility: Compatible only with Bently Nevada 3500 series monitoring modules and corresponding preamplifier interfaces. The connector model precisely matches the system component interface.
Signal Transmission Characteristics: Signal attenuation ≤ 0.5dB/10 meters (at 1kHz frequency)
Application scenarios
Bently Nevada 16710-15 widely used in online monitoring of shaft vibration, shaft displacement, expansion difference and other parameters of key rotating machinery in the power (steam turbine, generator), petrochemical (compressor), metallurgy (rolling mill), papermaking and other industries.
Benefits
Bently Nevada 16710-15 as a genuine accessory, it is deeply compatible with the Bently Nevada monitoring system, reducing system integration complexity. Reliable protection and signal quality reduce the risk of false alarms or downtime due to cable faults.
Instructions
Bently Nevada 16710-15 Connection: Ensure the system is powered off. Plug the pre-assembled connector on one end of the cable into the signal input terminal of the 3500 series monitoring module. Connect the other end to the signal output terminal of the corresponding proximitor amplifier or sensor. Ensure the connector is fully engaged (a "click" sound is heard) and do not allow it to become loose.
Wiring Requirements: Route the cables away from strong electromagnetic sources and avoid running them parallel to power cables. If crossing cables, do so perpendicularly. Use insulating clamps to secure the cables.
Inspection and Maintenance: Regularly (every three months) inspect the cables to ensure the insulation is intact and the shielding is not exposed. Always disconnect the power cord before plugging or unplugging connectors to avoid damaging the interface or module while they are powered on.
Compatibility restrictions
Bently Nevada 16710-15 applicable only to Bently Nevada 3500 series systems. Do not mix with modules from other brands or non-3500 series modules. Otherwise, signal mismatch or interface damage may occur.
