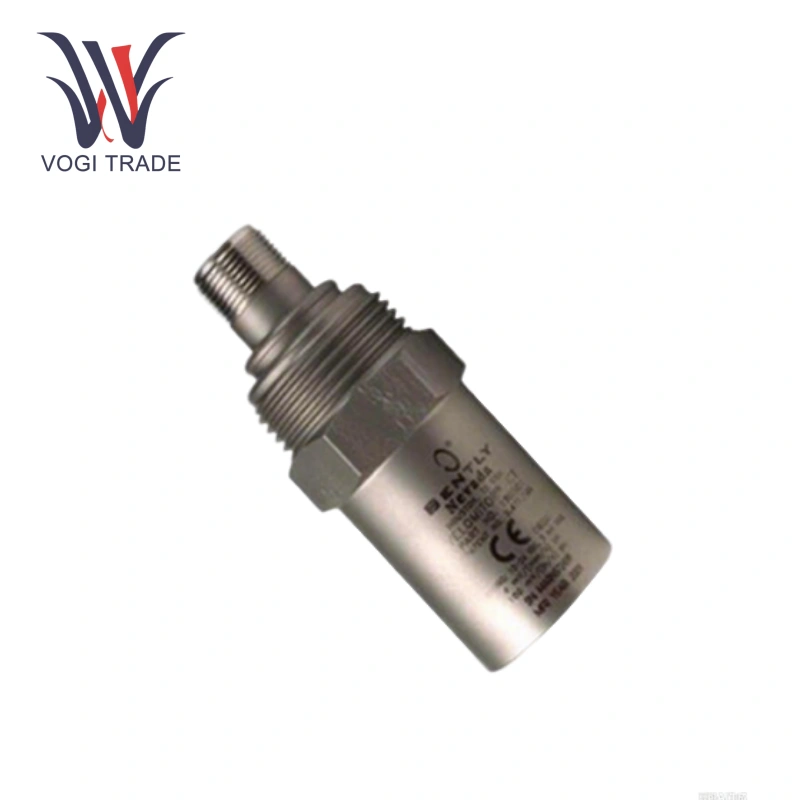

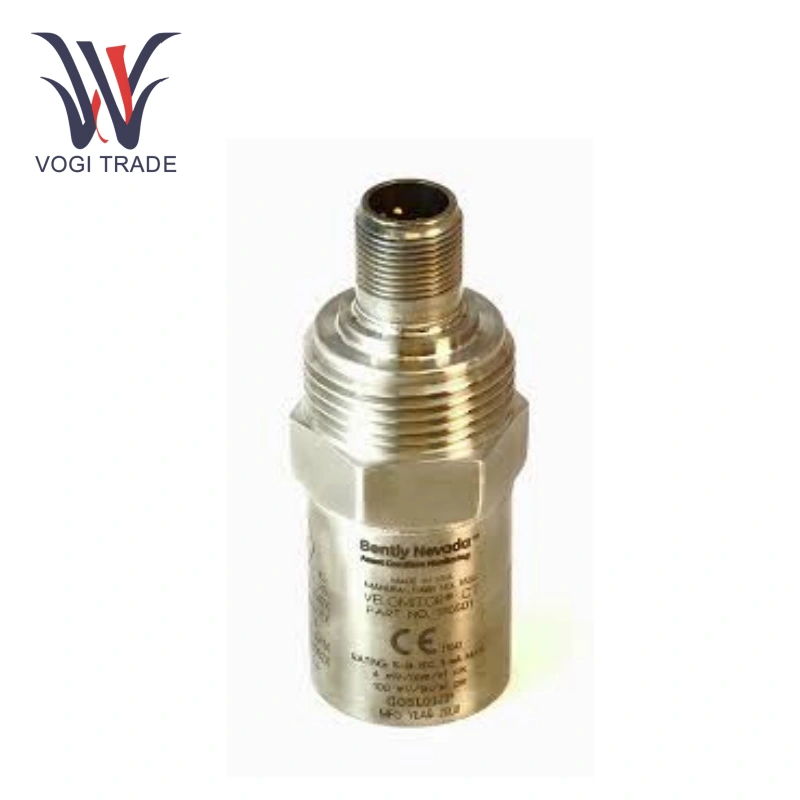

Brand: Bently Nevada Description: Velomitor CT Velocity Transducer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 190501-19-00-04 Velomitor CT Velocity Transducer is a low-frequency velocity sensor and a lower-frequency version of the standard Velomitor piezoelectric velocity sensor. It is designed to accurately measure the housing vibration velocity of equipment operating at speeds of 90 rpm and above, such as cooling towers and air-cooled heat exchanger fan assemblies.
|
Manufacture |
Bently Nevada |
|
Model Number |
190501-19-00-04 |
|
Ordering Number |
190501-19-00-04 |
|
Catalog |
- |
|
Country Of Origin |
America |
|
HS CODE |
8543709990 |
|
Dimension |
12*12*3CM |
|
Packing Dimension |
15*15*5CM |
|
Weight |
0.8kg |
Product Overview
Model 190501-19-00-04 corresponds to the following configurations:
19: Mounting hardware option (Adapter, 3/8-in 24 to 1.0-in 11.5 NPT)
00: Connection interface (MIL-C-5015 standard)
04: Certification option (CSA/NRTL/C + ATEX/IECEx/CSA Zone 0/1 explosion-proof certification)
Electrical Performance
Sensitivity: 3.94 mV/mm/s ±5%
Frequency Response:
±1.0 dB: 3 Hz–900 Hz (180–54,000 cpm)
±3.0 dB: 1.5 Hz–1 kHz (90–60,000 cpm)
Velocity Range: 63.5 mm/s pk (2.5 in/s pk)
Output Impedance: <400 Ω
Noise Floor: 0.229 mm/s pk (1.5 Hz–1 kHz)
Installation Configuration (Model Number Field "19")
Adapter Specifications: 3/8-in. 24" thread to 1.0-in. 11.5" NPT pipe thread
Applications: Industrial equipment requiring connection to large-diameter pipes
Key Accessories:
Sealing O-ring (provided with adapter)
Adapter Conduit Connector (P/N 128608-02)
Product Features
Non-contact, high-precision measurement: Bently Nevada 190501-19-00-04 based on the eddy current principle, it eliminates mechanical wear and provides excellent long-term stability.
Wide frequency response: Bently Nevada 190501-19-00-04 frequency range is 0-10kHz.
Environmentally robust: Bently Nevada 190501-19-00-04 probe is temperature-resistant up to 150°C, and the cable is oil-resistant and stretch-resistant.
Application
Bently Nevada 190501-19-00-04 used for vibration monitoring of cooling tower fans in power plants, this system monitors the fan's vibration speed in real time, enabling timely detection of wear and looseness of fan blades, as well as potential motor and reducer failures.
Bently Nevada 190501-19-00-04 Installed on air-cooled heat exchanger fans in petrochemical plants, it effectively monitors fan operating status.
Notes
Compatibility: Bently Nevada 190501-19-00-04 compatible only with Bently Nevada 3300 series eddy current probes and preamplifiers. Do not use other brands of components.
Exceeding the specified distance is prohibited: 19 meters is the standard design length and cannot be cut or spliced to extend the length.
