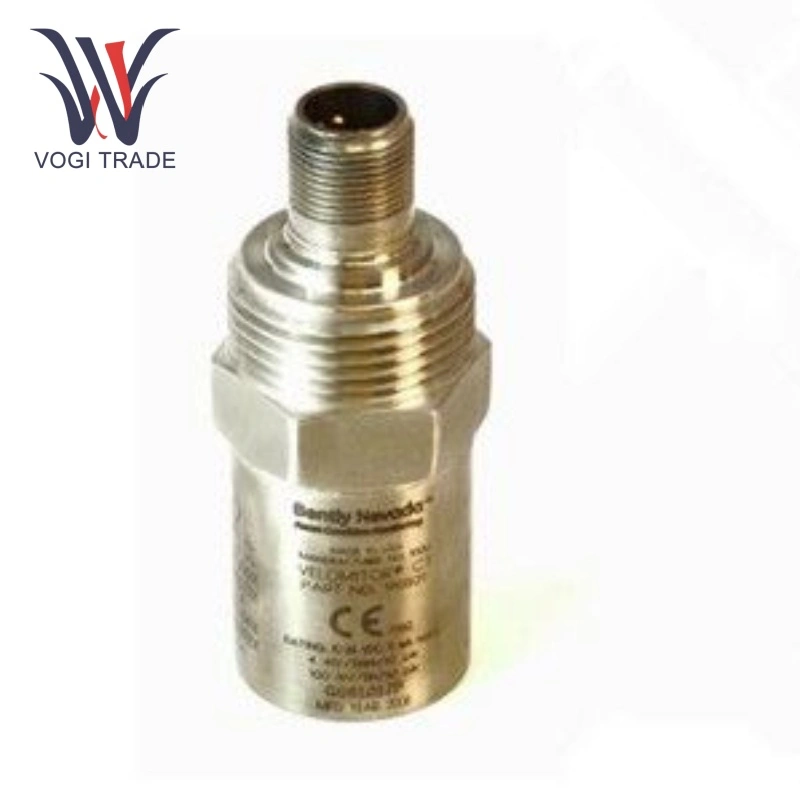

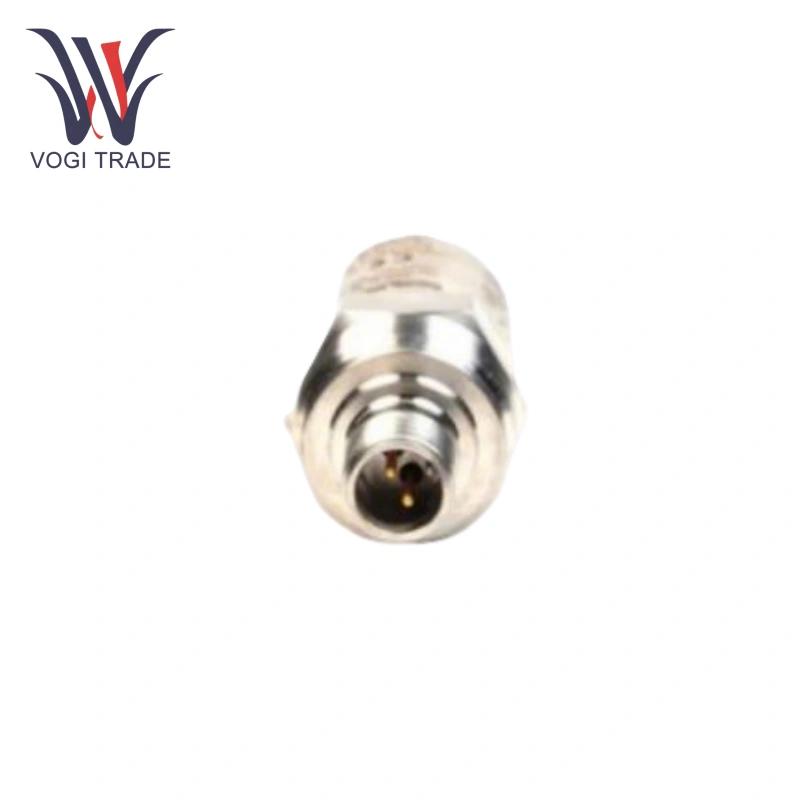

Brand: Bently Nevada Description: Velomitor CT Velocity Transducer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 190501-19-00-CN is an industrial-grade extension cable for eddy-current sensors. It is part of the Bently Nevada monitoring system. Its core function is to connect eddy-current probes to preamplifiers, enabling distortion-free transmission of the probe-induced impedance signal.
|
Manufacture |
Bently Nevada |
|
Model Number |
190501-19-00-CN |
|
Ordering Number |
190501-19-00-CN |
|
Catalog |
1905 |
|
Country Of Origin |
America |
|
HS CODE |
8543709990 |
|
Dimension |
12*12*3CM |
|
Packing Dimension |
15*15*5CM |
|
Weight |
0.5kg |
Technical Specifications
Probe Type: Eddy-Current Displacement Sensor
Nominal Diameter: 19 mm (Probe Body Diameter)
Cable Length: 190501-19-00-CN (Approximately 19 meters)
Measuring Range: ±2 mm
Linearity: ≤±0.25% of Full Scale
Resolution: ≤0.01% of Full Scale
Frequency Response: 0 Hz – 10 kHz (-3dB Cutoff)
Operating Temperature: Probe: -50°C to +150°C; Extension Cable: -40°C to +120°C (Short-Term +150°C)
Probe: IP67; Cable Entry: M20 x 1.5 Sealed Connector (IP65)
Lateral Response: <5% of axial sensitivity.
Amplitude Linearity: ±2% to 63.5 mm/s peak.
Mounted Resonant Frequency: Minimum 9 kHz (stud mount).
Temperature Sensitivity: -8% to +5%.
Product Features
Non-contact, high-precision measurement: Bently Nevada 190501-19-00-CN based on the eddy current principle, it eliminates mechanical wear and provides excellent long-term stability.
Wide frequency response: The Bently Nevada 190501-19-00-CN frequency range is 0-10kHz.
Environmentally robust: The Bently Nevada 190501-19-00-CN probe is temperature-resistant up to 150°C, and the cable is oil-resistant and stretch-resistant.
Instructions
Connection: With power off, connect one end of the cable with a connector to the signal output of the eddy current probe and the other end to the probe signal input of the preamplifier. Tighten the connector nuts.
Wiring Requirements: Avoid running parallel to power cables, maintaining a spacing of ≥30cm. Crossing cables must be perpendicular to minimize electromagnetic coupling.
Inspection and Maintenance: Regularly (every 6 months) inspect the cable to ensure the sheath is intact and the shielding is not exposed. Measure the cable continuity (using the resistance setting on a multimeter; normal resistance is ≤5Ω). If the signal is abnormal, first check the connectors for proper contact, then verify the integrity of the cable.
Notes
Compatibility: Bently Nevada 190501-19-00-CN compatible only with Bently Nevada 3300 series eddy current probes and preamplifiers. Do not use other brands of components.
Exceeding the specified distance is prohibited: 19 meters is the standard design length and cannot be cut or spliced to extend the length.
